Toyota Wish

2009-03 → 2017-11 · chassis ZGE2# · catalogue 163120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 3 illustrations

Illustrations

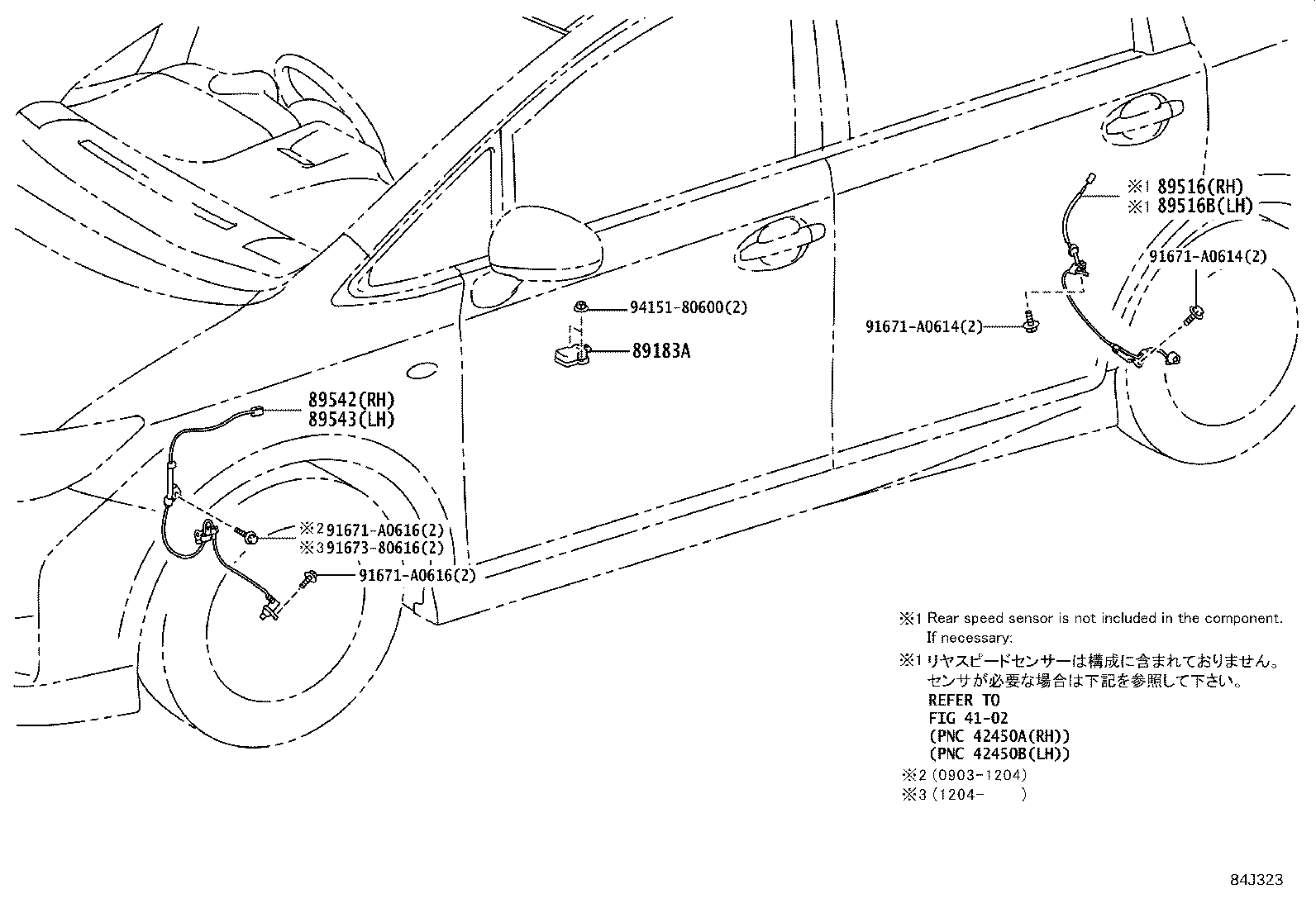

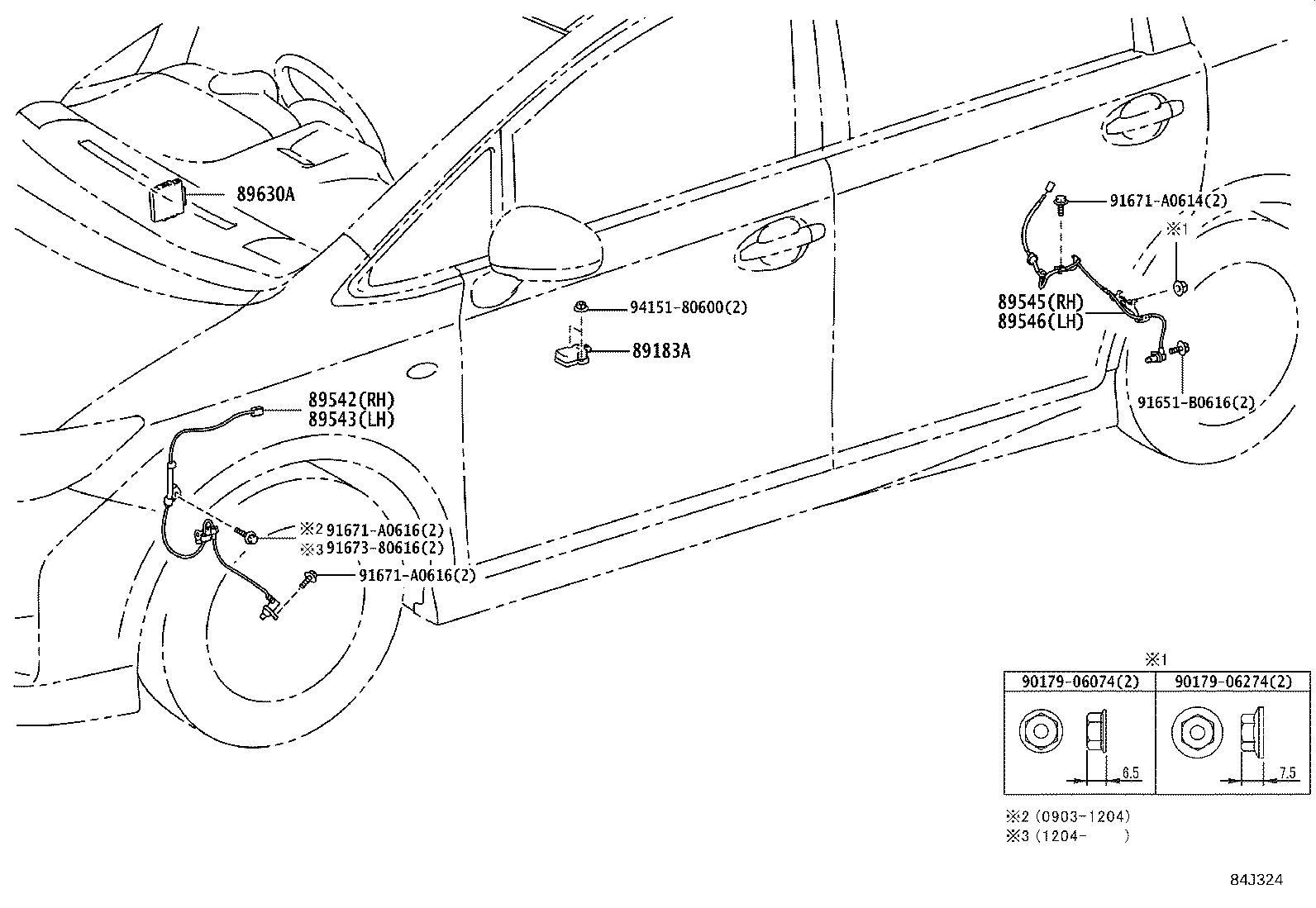

Figure 84A653C 84A653C 2009-03 → — Figure 84J323 84J323 2009-03 → — Figure 84J324 84J324 2009-03 → —

Part groups

PNCDescription
89183A Sensor, Yawrate
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
