Toyota Wish

2009-03 → 2017-11 · chassis ZGE2# · catalogue 163120 · Japan

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

5 part groups · 2 illustrations

Illustrations

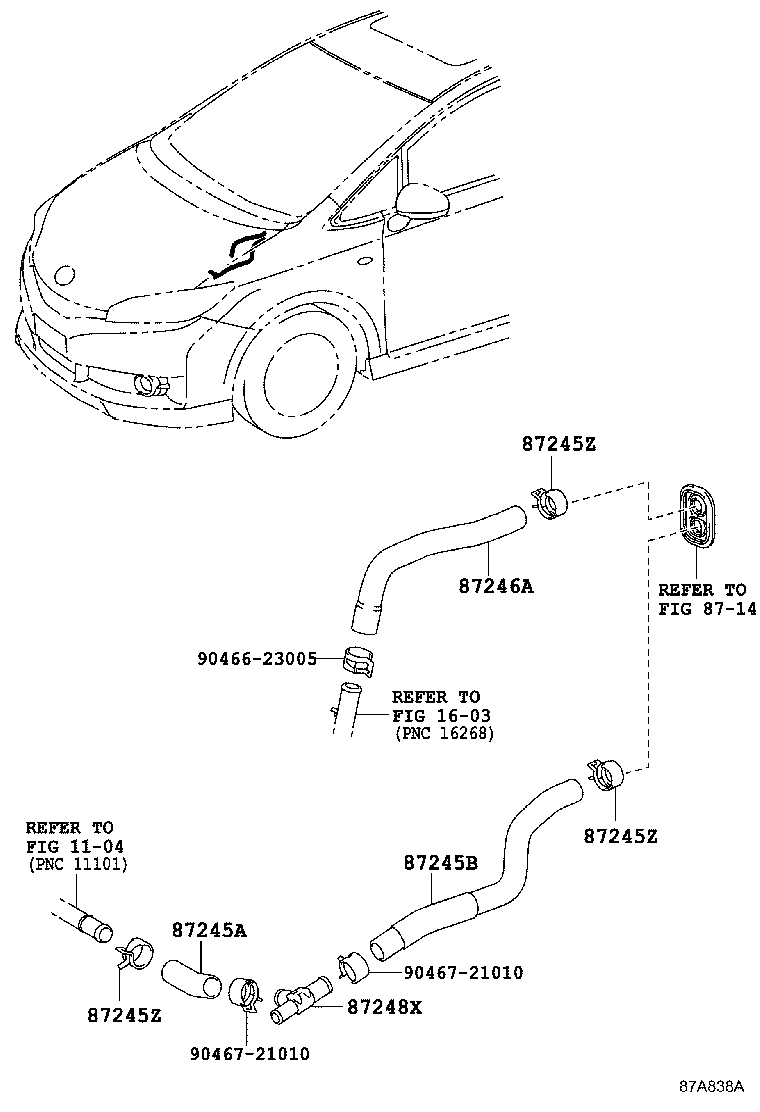

Figure 87A837A 87A837A 2009-03 → — Figure 87A838A 87A838A 2009-03 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246A Hose, Heater Water, Outlet A
87248X Pipe, Heater Water
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
