Toyota Auris

2006-10 → 2012-08 · chassis NZE15#,ZRE15# · catalogue 165110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

13 part groups · 3 illustrations

Illustrations

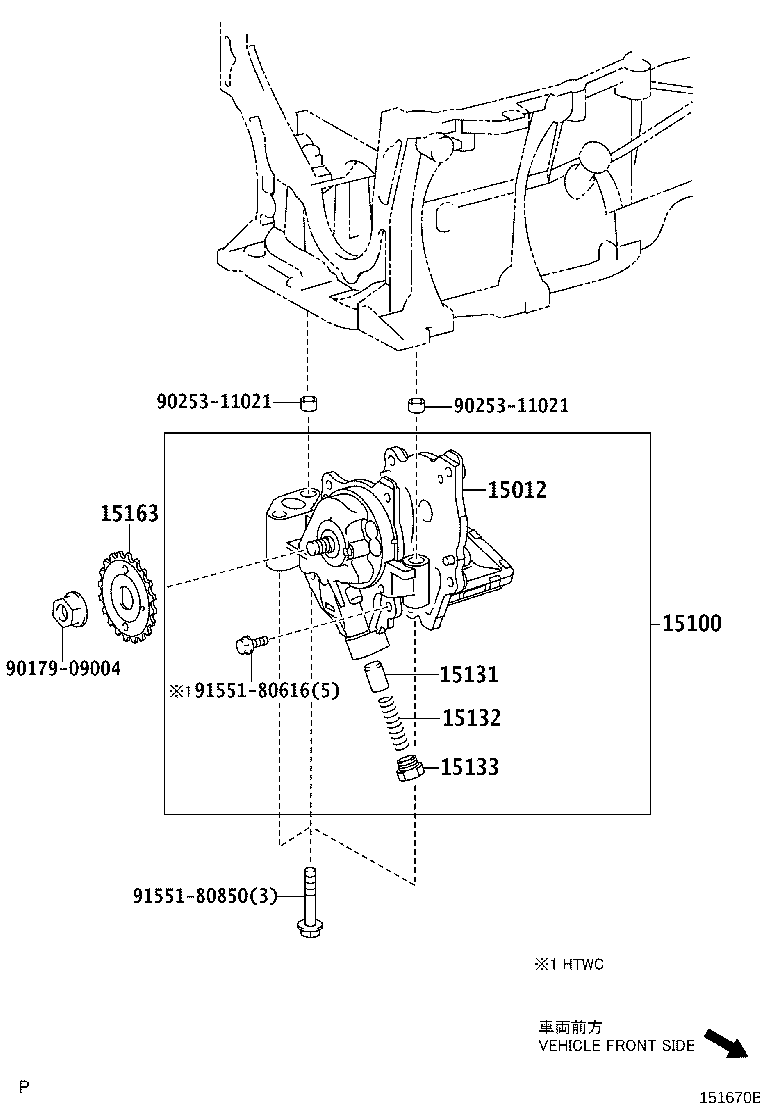

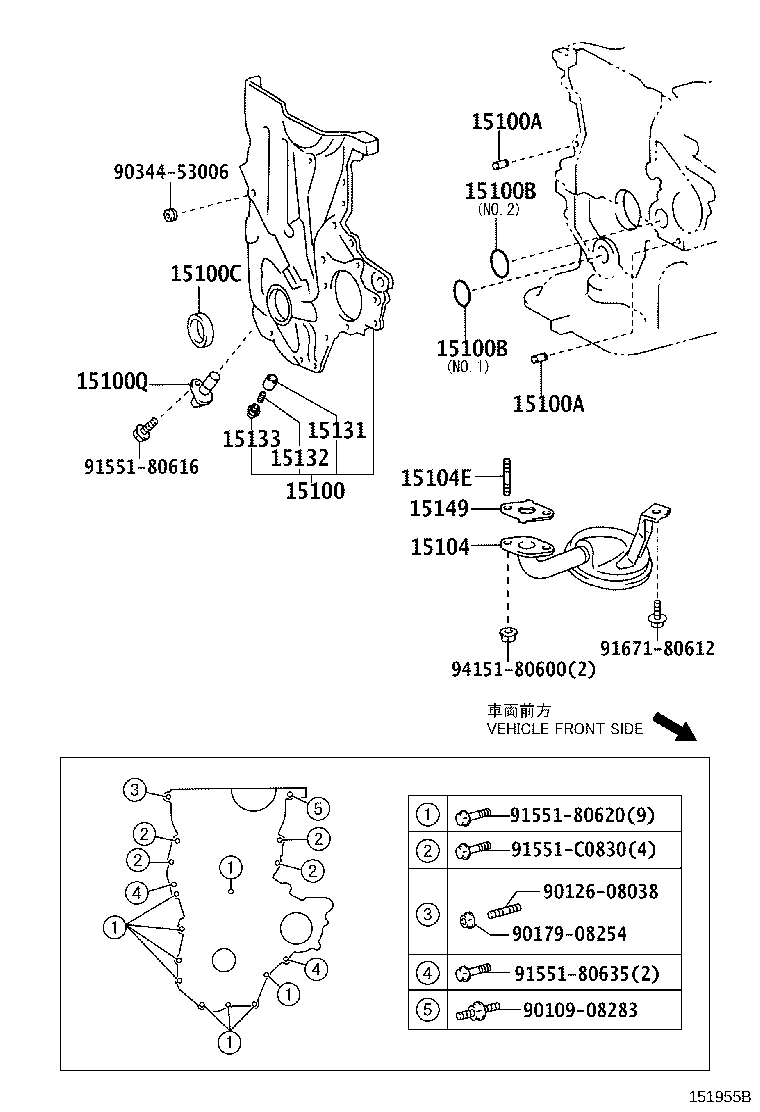

Figure 151248C 151248C 2006-10 → 2012-04 Figure 151955B 151955B 2012-04 → — Figure 151670B 151670B 2006-10 → —

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15100B Ring, O(FOR OIL PUMP)
15100C Seal(FOR OIL PUMP)
15100Q Sensor, Crank Position
15104 Strainer Sub-assy, Oil
15104E Bolt, Stud(FOR OIL STRAINER)
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15149 Gasket, Oil Strainer Flange
15163 Gear, Oil Pump Drive Shaft
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
