Toyota Auris

2006-10 → 2012-08 · chassis NZE15#,ZRE15# · catalogue 165110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 3 illustrations

Illustrations

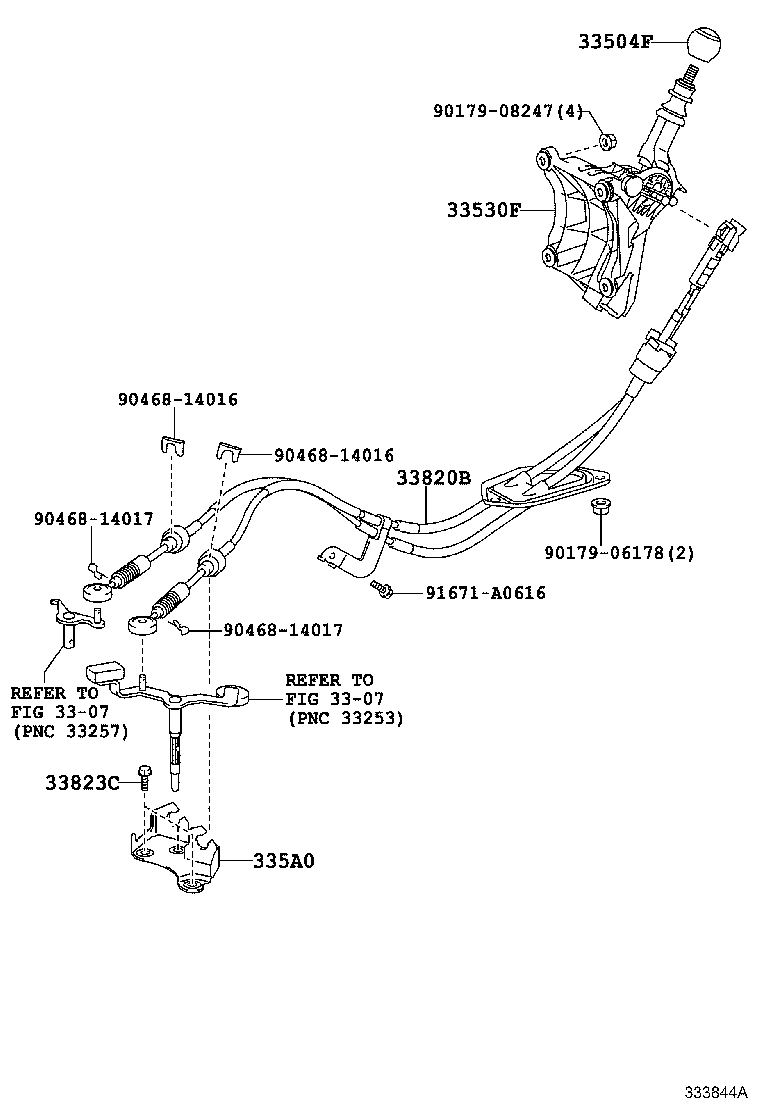

Figure 333175E 333175E 2006-10 → — Figure 333176A 333176A 2006-10 → — Figure 333844A 333844A 2009-10 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33560 Unit Assy, Shift Lock Control
335A0 Bracket Assy, Control Cable
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
35906 Wire Sub-assy, Indicator Lamp
35970F Housing Assy, Position Indicator
35971A Housing, Position Indicator, Upper
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
