Toyota Auris
2006-10 → 2012-08 · chassis NZE15#,ZRE15# · catalogue 165110 · Japan
Supported model
Data version 2013-01

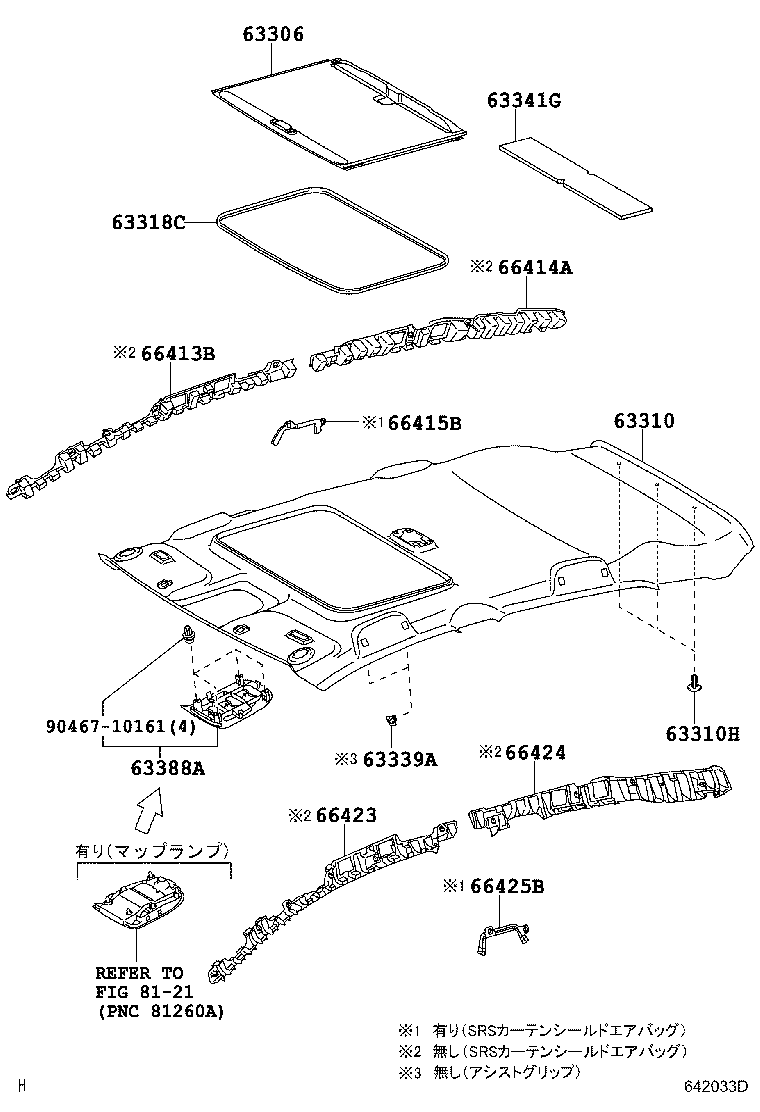

Roof Headlining & Silencer Pad
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63339A | Cover, Roof Headlining Service Hole |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63388A | Cover, Roof Headlining Holder |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
| 66425B | Spacer, Side Rail, Rear NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
