Toyota Auris

2006-10 → 2012-08 · chassis NZE15#,ZRE15# · catalogue 165110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

17 part groups · 3 illustrations

Illustrations

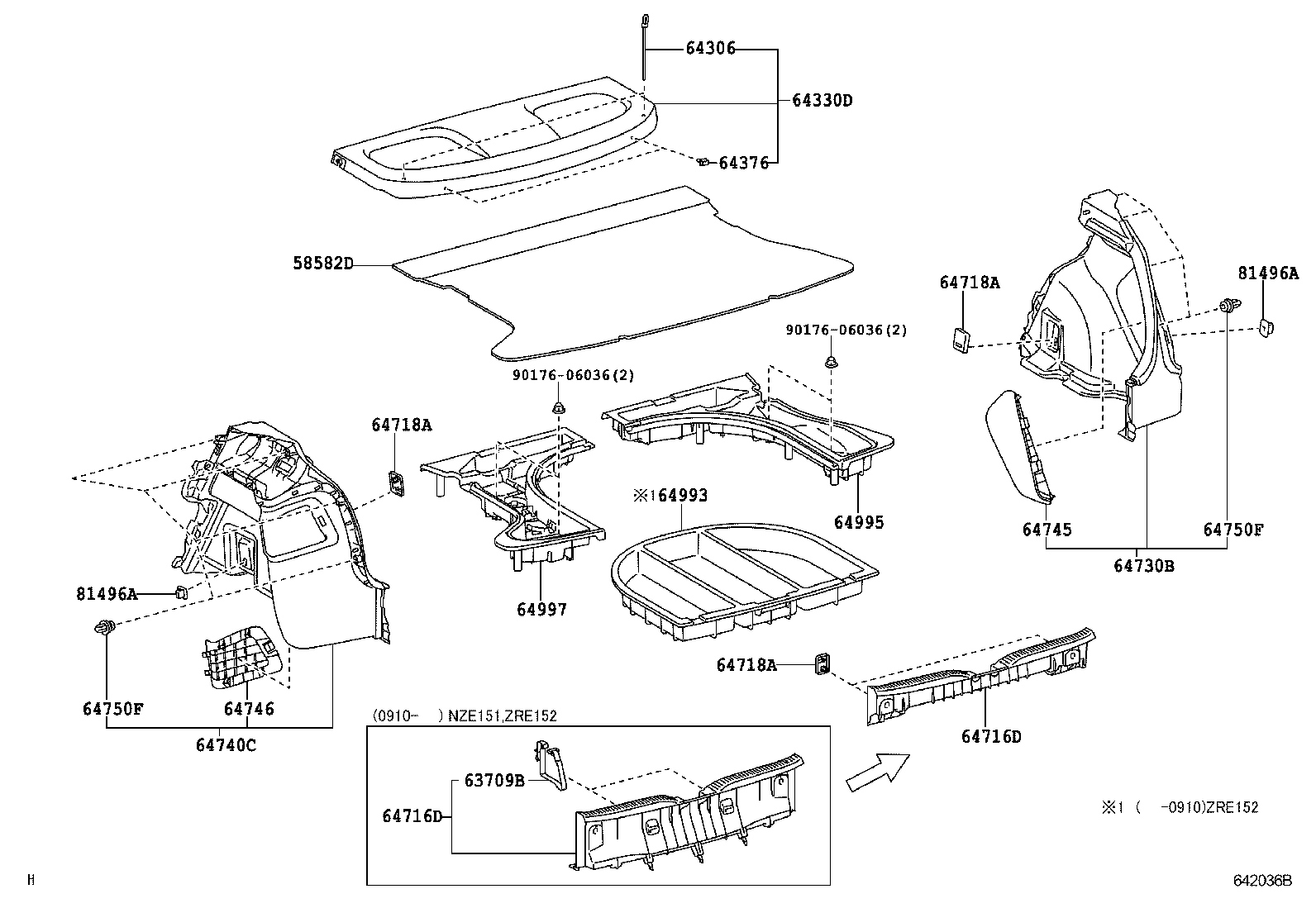

Figure 642037D 642037D 2006-10 → 2009-10 Figure 642036B 642036B 2006-10 → — Figure 642036B 642036B 2009-10 → —

Part groups

PNCDescription
58582D Mat, Rear Floor, Rear
58910G Box Assy
63709B Band Sub-assy, Room Rack
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64376 Spacer, Package Tray Trim, NO.2
64716D Cover, Deck Trim, Rear
64718A Cover, Deck Trim Service Hole
64730B Panel Assy, Deck Trim Side, RH
64740C Panel Assy, Deck Trim Side, LH
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
64993 Box, Deck Floor, Rear
64995 Box, Deck Floor, RH
64997 Box, Deck Floor, LH
81496A Guide, Rear Combination Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
