Toyota Auris

2006-10 → 2012-08 · chassis NZE15#,ZRE15# · catalogue 165110 · Japan

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 2 illustrations

Illustrations

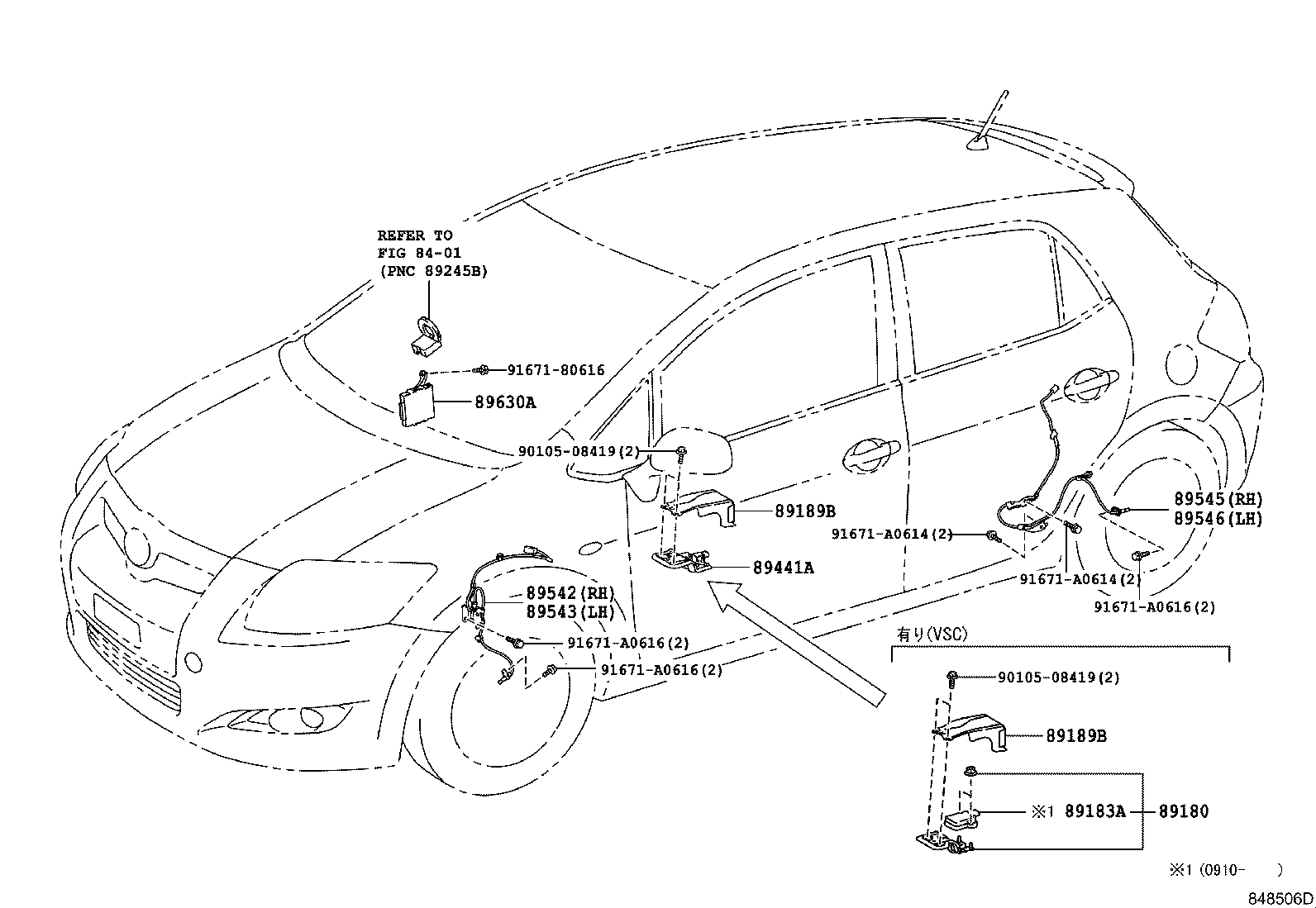

Figure 848505G 848505G 2006-10 → — Figure 848506D 848506D 2006-10 → —

Part groups

PNCDescription
89180 Sensor Assy, Yawrate
89183A Sensor, Yawrate
89189B Bracket, Yawrate Sensor
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
