Toyota Auris

2006-10 → 2012-08 · chassis NZE15#,ZRE15# · catalogue 165110 · Japan

Supported model Data version 2013-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 2 illustrations

Illustrations

Figure 863049A

863049A 2006-10 → 2009-10

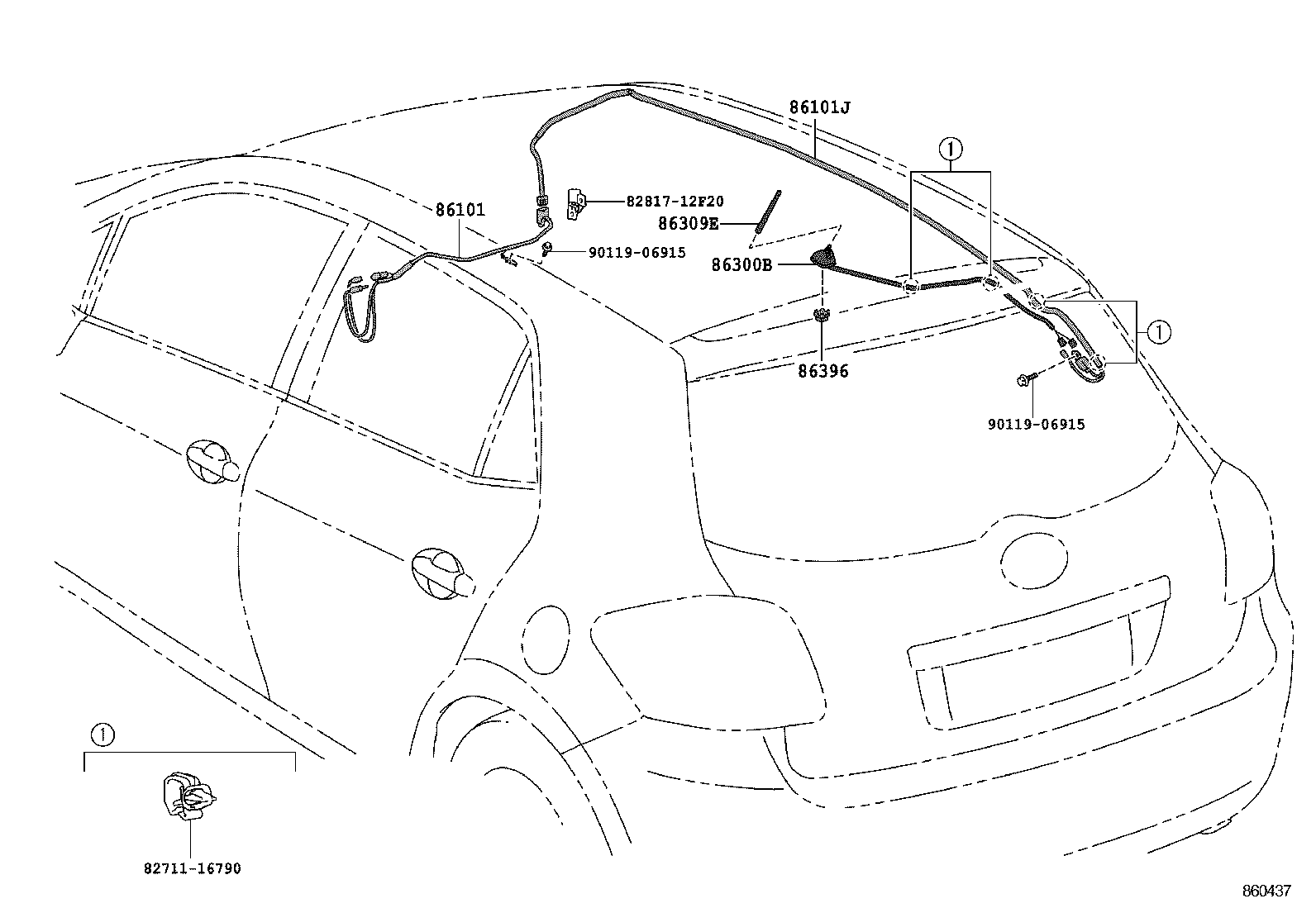

864037 2009-10 → —

Part groups

PNC	Description
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86101Q	Cord Sub-assy, Antenna, NO.4
86300B	Antenna Assy, Amplifier, NO.1
86309E	Pole Sub-assy, Roof Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
