Toyota Auris
2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan
Supported model
Data version 2018-11

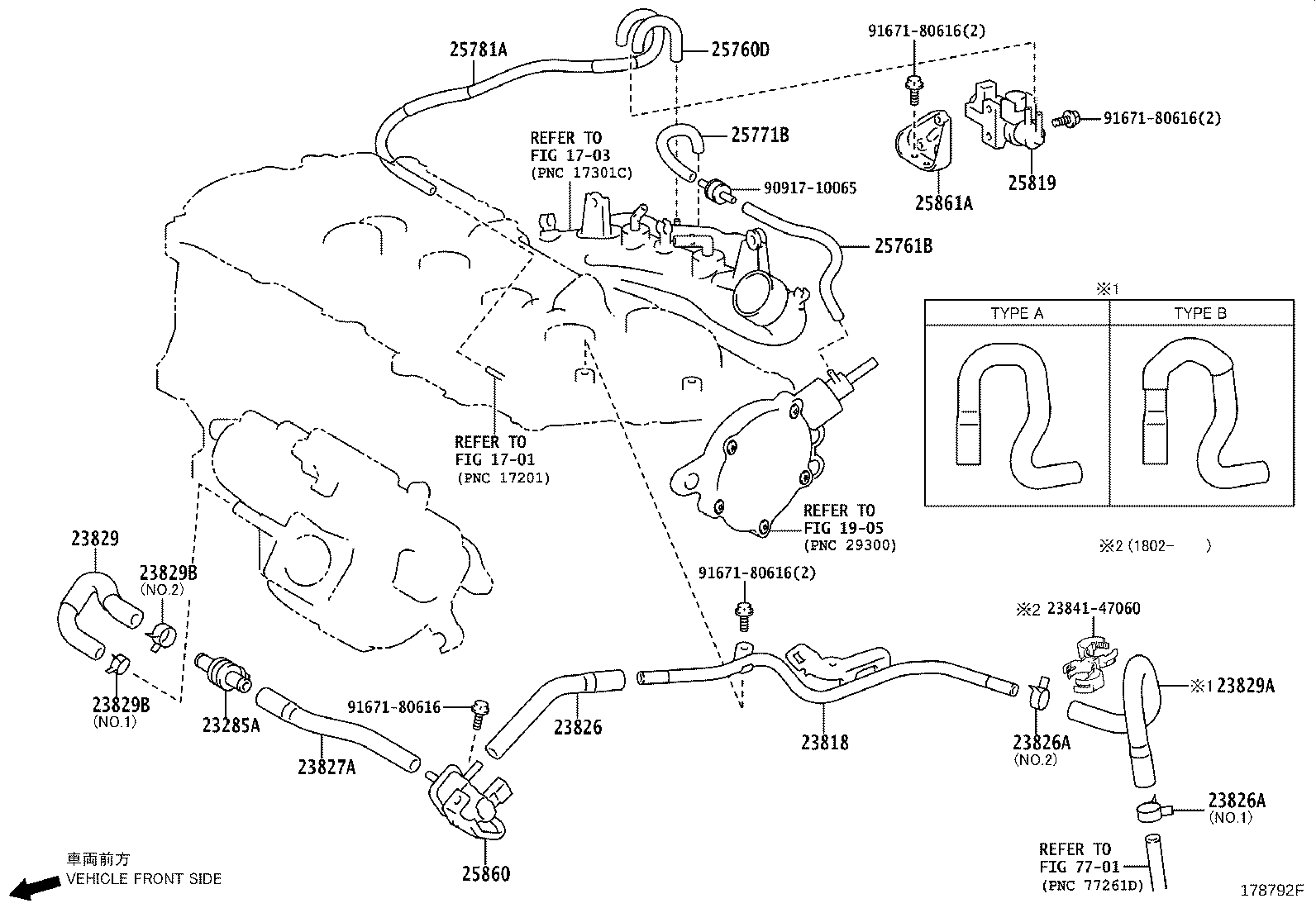

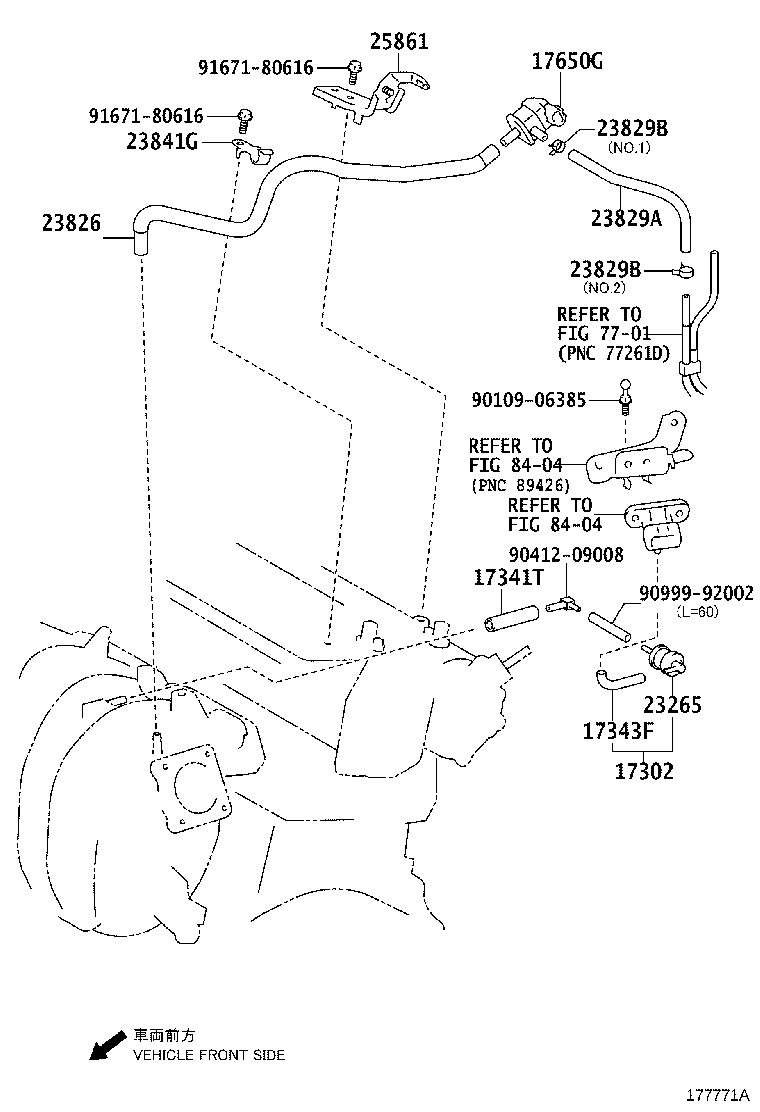

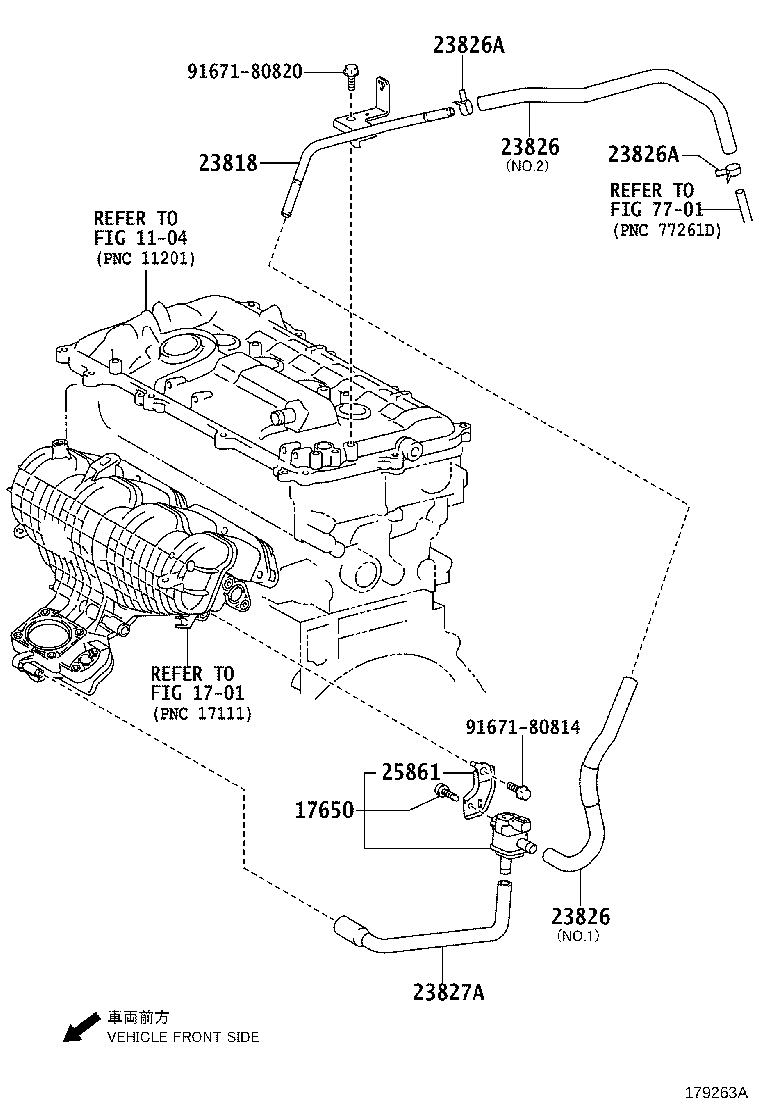

Vacuum Piping
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 17302 | Hose Sub-assy, Air |
| 17341T | Hose, Air, NO.1 |
| 17343F | Hose, Air, NO.3 |
| 17650 | Valve Assy, Vacuum Switching |
| 17650G | Valve, Duty Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 23818 | Pipe, Fuel Vapor Feed |
| 23826 | Hose, Fuel Vapor Feed, NO.1 |
| 23826A | Clip(FOR FUEL VAPOR FEED HOSE, NO.1) |
| 23827A | Hose, Fuel Vapor Feed, NO.2 |
| 23827B | Clip(FOR FUEL VAPOR FEED HOSE, NO.2) |
| 23829 | Hose, Fuel Vapor Feed, NO.3 |
| 23829A | Hose, Fuel Vapor Feed |
| 23829B | Clip(FOR FUEL VAPOR FEED HOSE) |
| 23841G | Clamp, Fuel Hose |
| 25760 | Hose Assy, Vacuum Transmitting |
| 25760D | Hose Assy, Vacuum Transmitting, NO.4 |
| 25761B | Hose, Vaccum Transmitting, NO.1 |
| 25771B | Hose, Vaccum Transmitting, NO.2 |
| 25781A | Hose, Vacuum Transmitting, NO.3 |
| 25819 | Valve Assy, Vacuum Regulating |
| 25860 | Valve Assy, Vacuum Switching, NO.1 |
| 25861 | Bracket, Vacuum Switching Valve |
| 25861A | Bracket, Vacuum Switching Valve, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
