Toyota Auris

2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan

Supported model Data version 2018-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

4 part groups · 2 illustrations

Illustrations

Figure 193985I

193985I 2012-08 → —

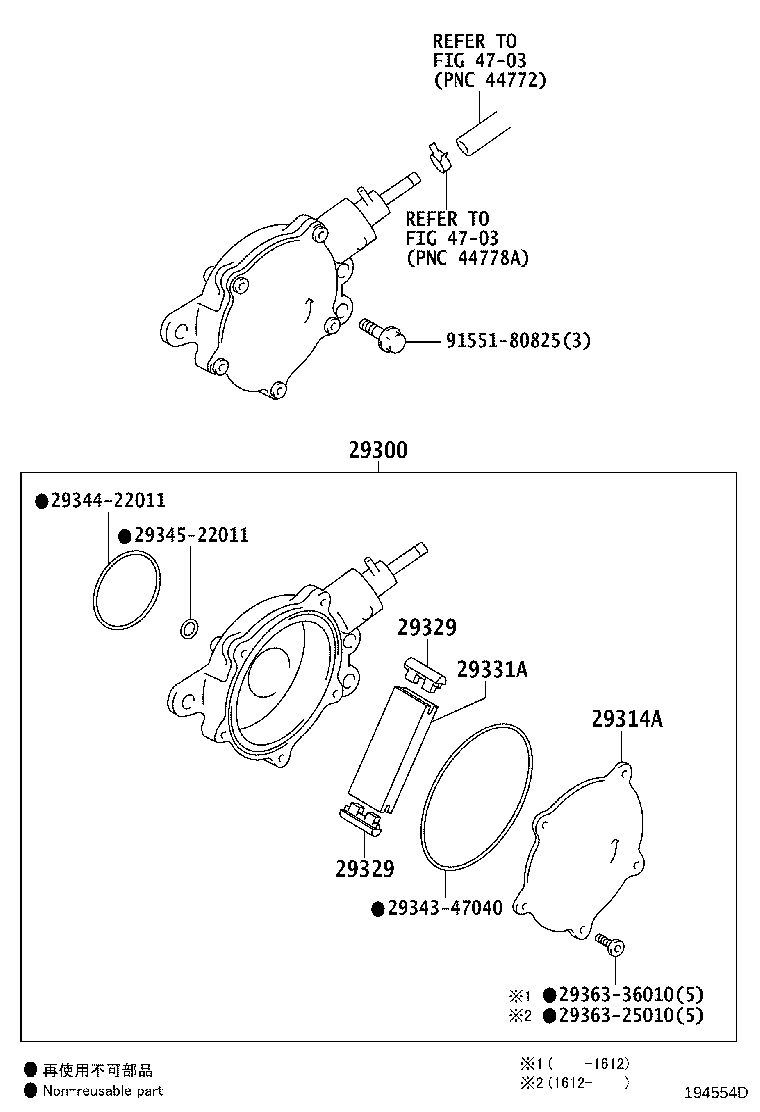

Figure 194554D

194554D 2015-03 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29314A	Cover, End
29329	Cap, Vacuum Pump Vane
29331A	Vane, Vacuum Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
