Toyota Auris

2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

8 part groups · 2 illustrations

Illustrations

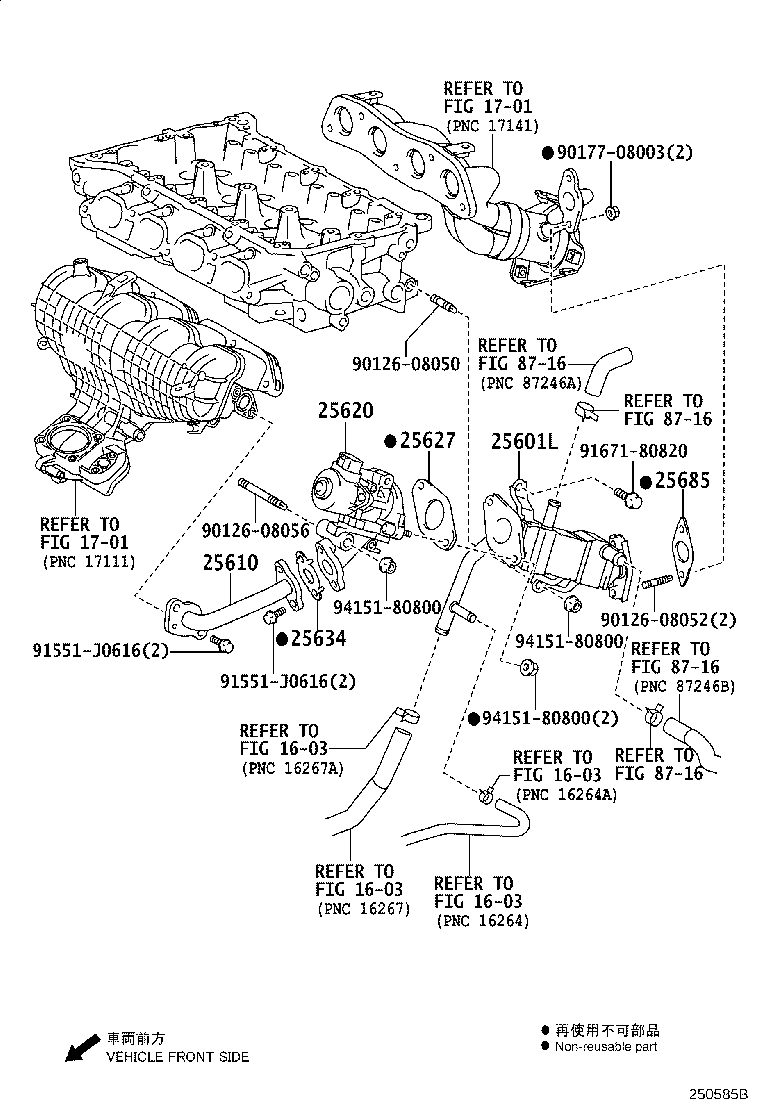

Figure 250473C 250473C 2012-08 → — Figure 250585B 250585B 2016-04 → —

Part groups

PNCDescription
25601L Pipe Sub-assy, Egr W/Cooler
25610 Pipe Assy, Egr
25620 Valve Assy, Egr
25627 Gasket, Egr Valve
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25638 Chamber, Egr Delivery
25685 Gasket, Egr Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
