Toyota Auris

2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

16 part groups · 4 illustrations

Illustrations

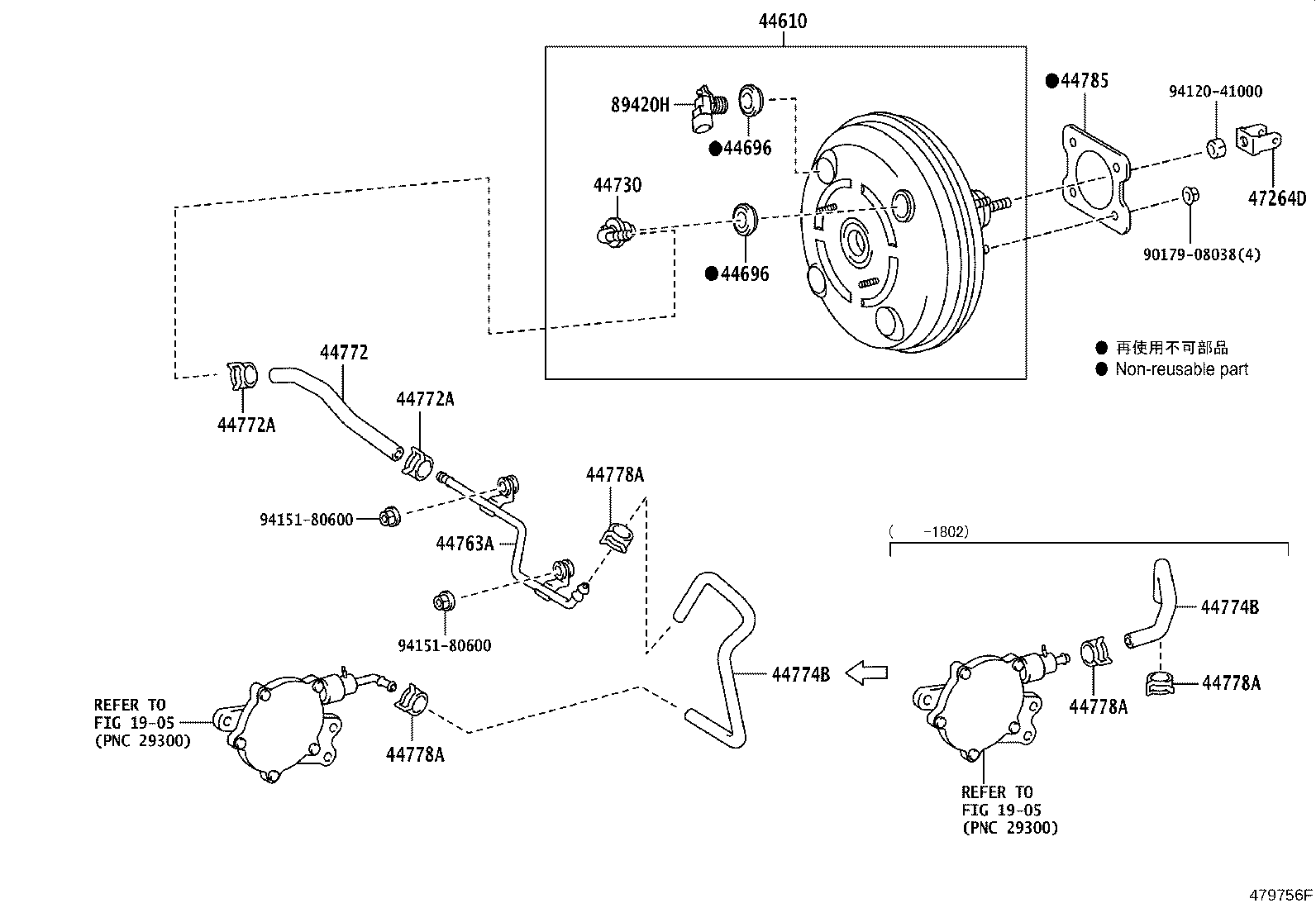

Figure 478464C 478464C 2012-08 → — Figure 478467B 478467B 2012-08 → — Figure 478468D 478468D 2012-08 → — Figure 479756F 479756F 2015-03 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44763A Tube, Hose TO Hose, NO.1
44763C Tube, Hose TO Hose, NO.2
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774B Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44778A Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
44785 Gasket, Brake Booster
47264D Clevis, Brake Master Cylinder Push Rod
89420H Sensor Assy, Vacuum
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
