Toyota Auris

2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan

Supported model Data version 2018-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 2 illustrations

Illustrations

Figure 533807B

533807B 2012-08 → 2015-03

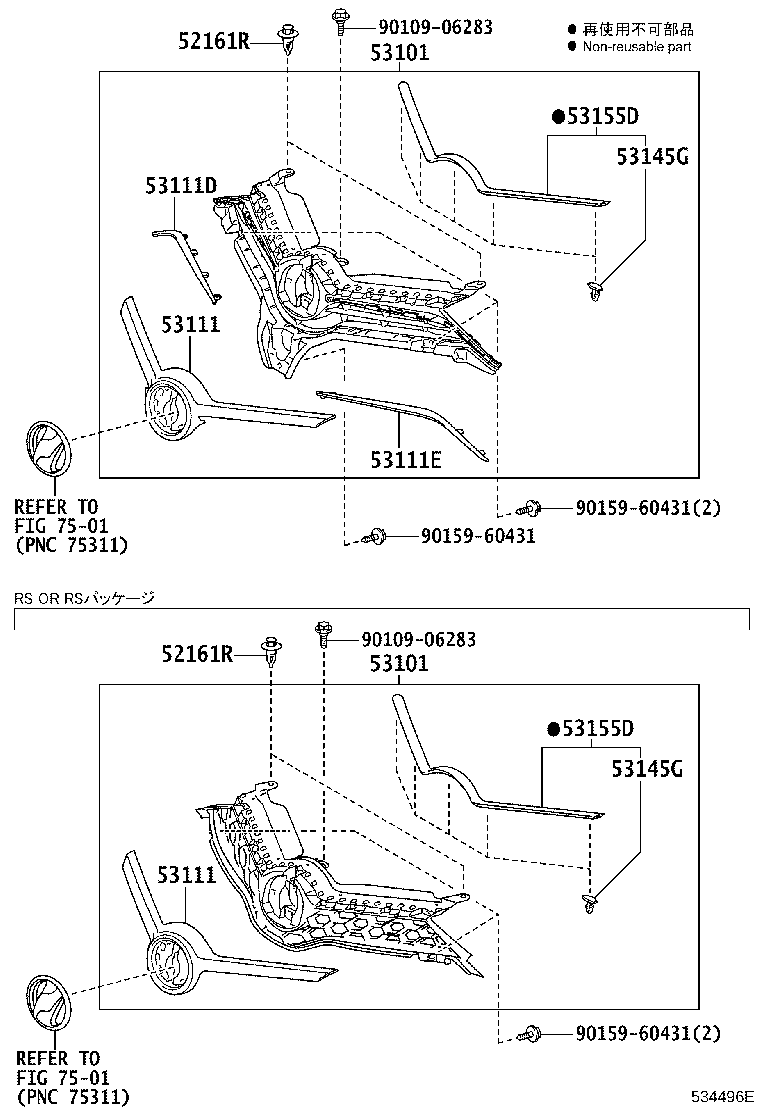

Figure 534496E

534496E 2015-03 → —

Part groups

PNC	Description
52161R	Piece, Front Bumper
53101	Grille Sub-assy, Radiator
53111	Grille, Radiator
53111D	Moulding, Radiator Grille, RH
53111E	Moulding, Radiator Grille, LH
53145G	Clip, Radiator Grille
53155D	Seal, Radiator Grille, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
