Toyota Auris
2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan
Supported model
Data version 2018-11

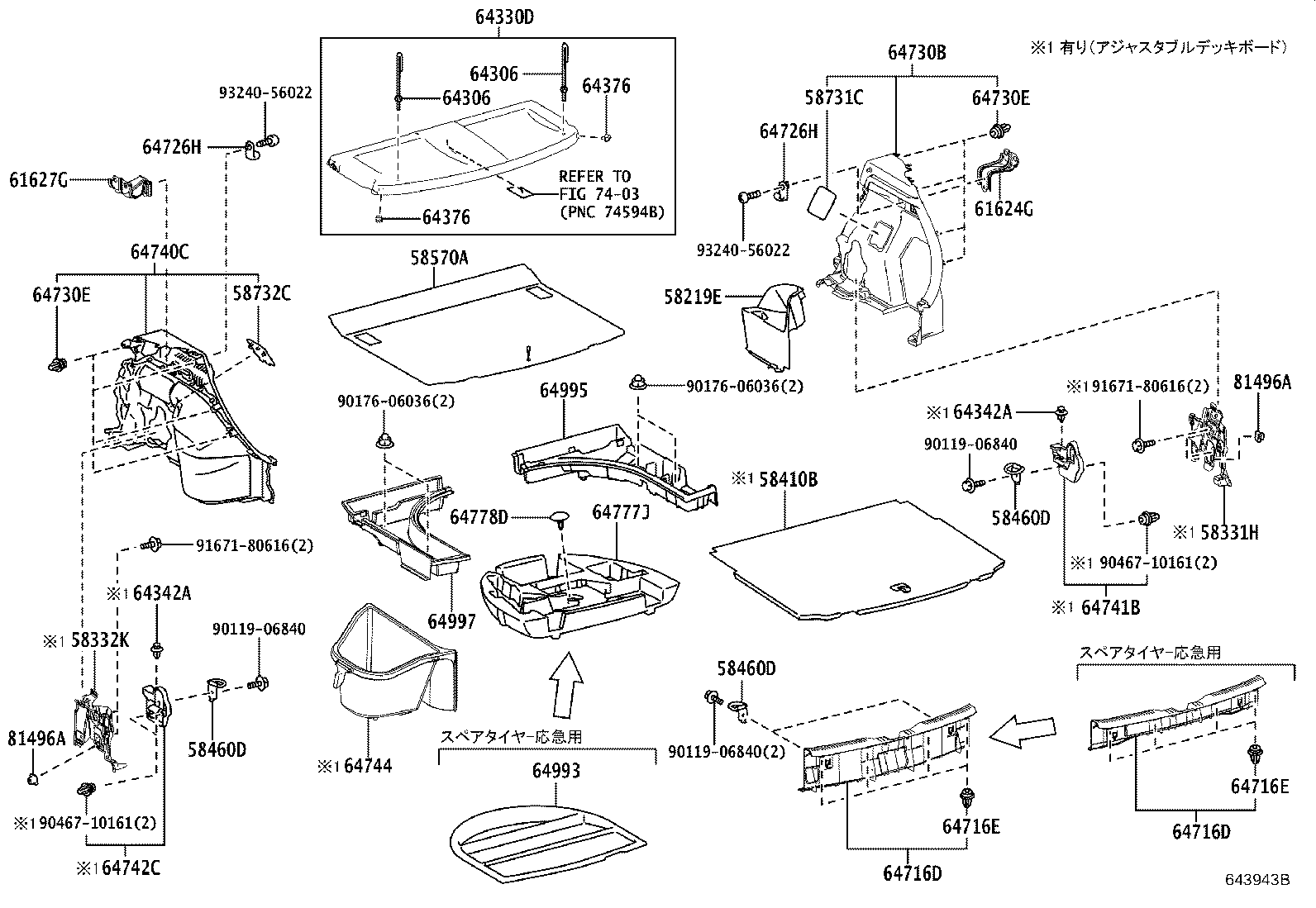

Deck Board & Deck Trim Cover
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58219E | Cover, Battery Box |
| 58331H | Bracket, Luggage Compartment Trim, NO.1 |
| 58332K | Bracket, Luggage Compartment Trim, NO.2 |
| 58410B | Board Assy, Deck |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58570A | Mat Assy, Rear Floor |
| 58731C | Cap, Rear Absorber |
| 58732C | Cap, Rear Absorber |
| 61624G | Bracket, Deck Side Trim Upper, RH |
| 61627G | Bracket, Deck Side Trim Upper, LH |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64342A | Clip |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64718A | Cover, Deck Trim Service Hole |
| 64726B | Clip, Deck Rear Trim |
| 64726H | Hook, Deck Side Trim, NO.2 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64742C | Box, Deck Side Trim, LH |
| 64743A | Board, Deck Trim Side, Lower RH |
| 64744 | Board, Deck Trim Side, Lower LH |
| 64777J | Cushion, Spare Wheel |
| 64778D | Protector, Spare Wheel |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 81496A | Guide, Rear Combination Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
