Toyota Auris

2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

18 part groups · 3 illustrations

Illustrations

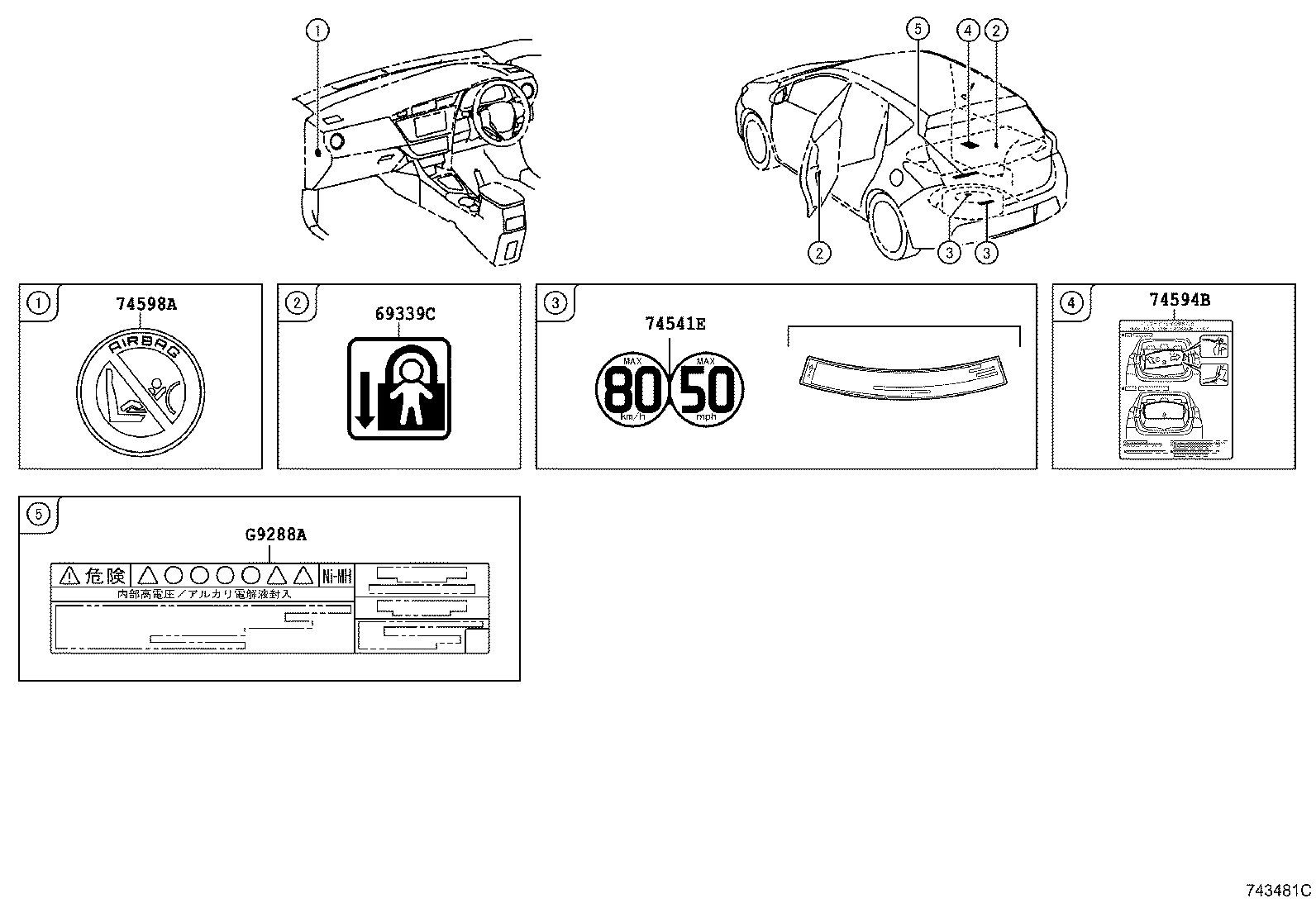

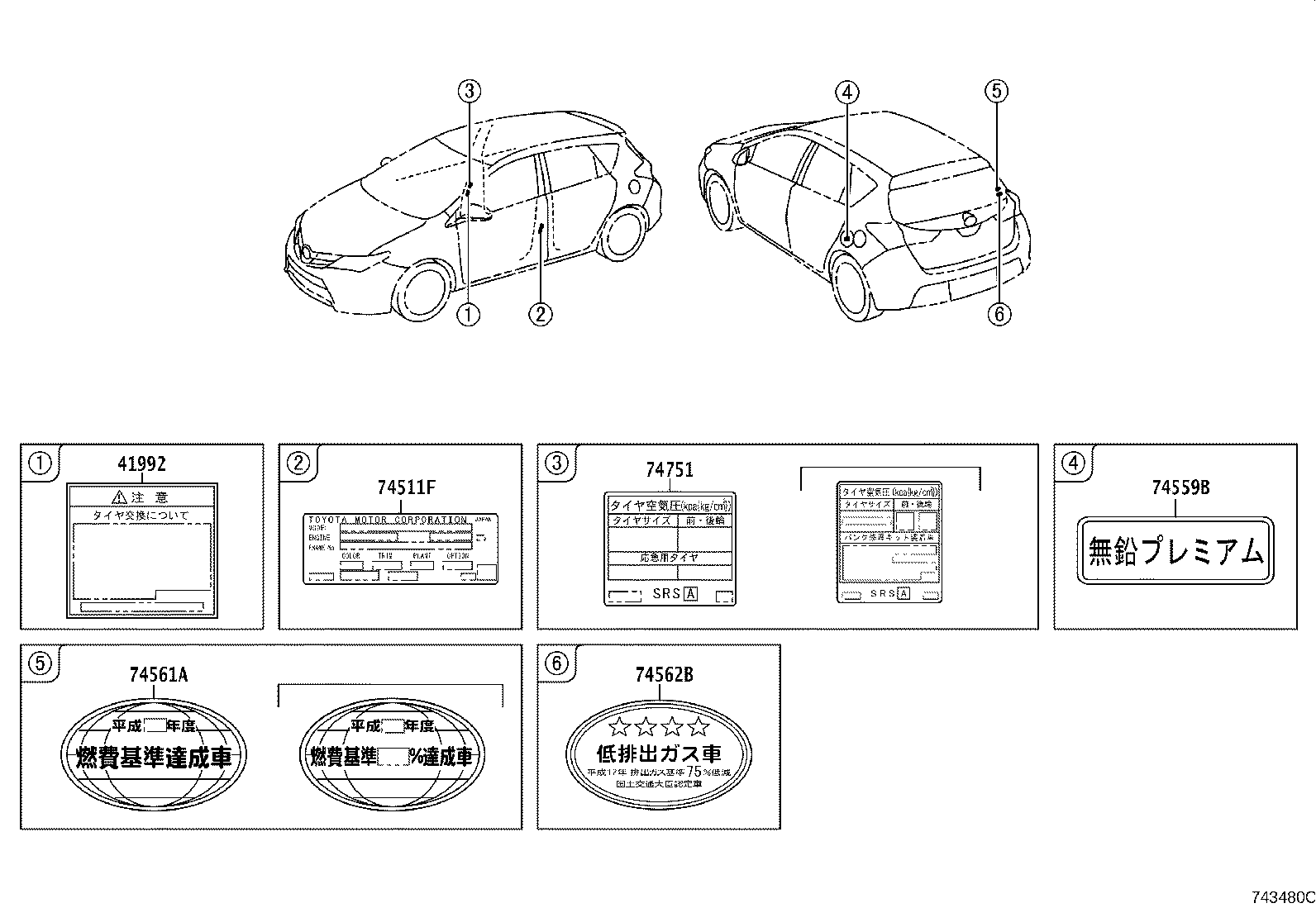

Figure 745488 745488 2012-08 → — Figure 743480C 743480C 2012-08 → — Figure 743481C 743481C 2012-08 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11296C Label, Engine Service Information
41992 Label, Differential Notice
69339C Label, Child Protector Information
74511B Plate, Name
74511F Label, Name (IDENTIFICATION LASER LABEL)
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74594B Label, Package Tray Trim Information
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
G9288A Label, Battery Carging Notice
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
