Toyota Auris

2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

8 part groups · 3 illustrations

Illustrations

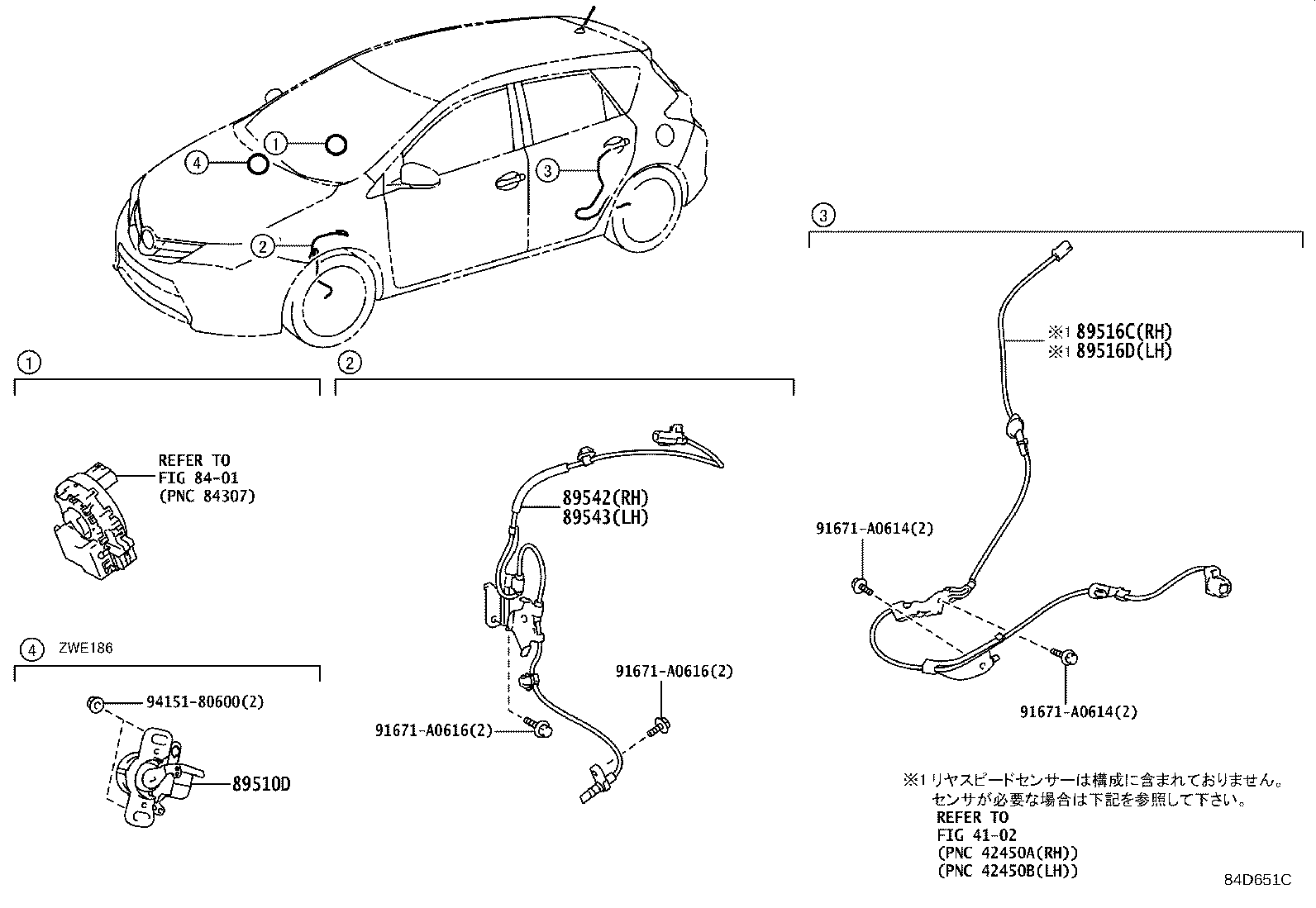

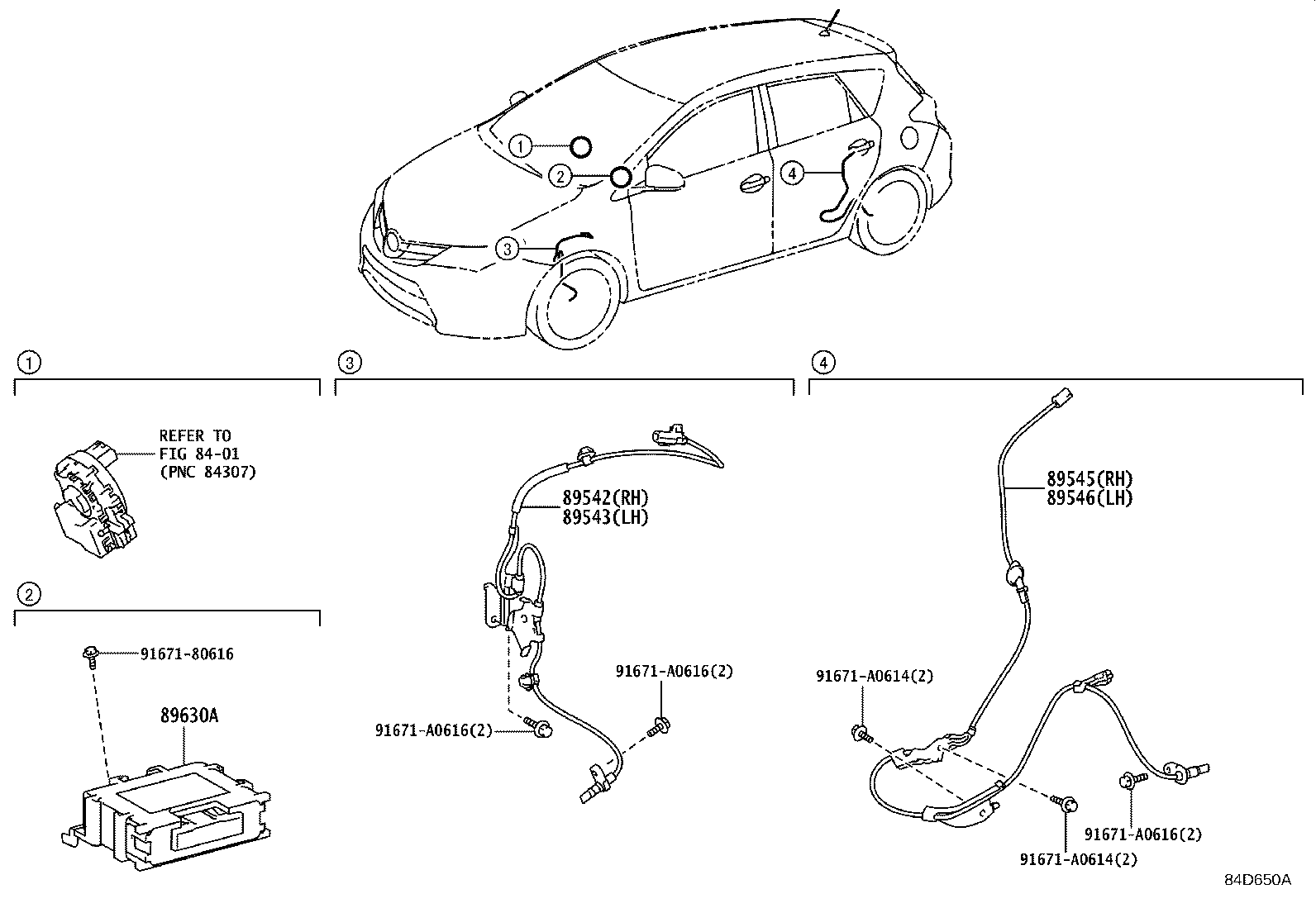

Figure 84D649B 84D649B 2012-08 → — Figure 84D650A 84D650A 2012-08 → — Figure 84D651C 84D651C 2012-08 → —

Part groups

PNCDescription
89510D Sensor Assy, Brake Pedal Stroke
89516C Wire, Skid Control Sensor, RH
89516D Wire, Skid Control Sensor, LH
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
