Toyota Auris

2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

4 part groups · 2 illustrations

Illustrations

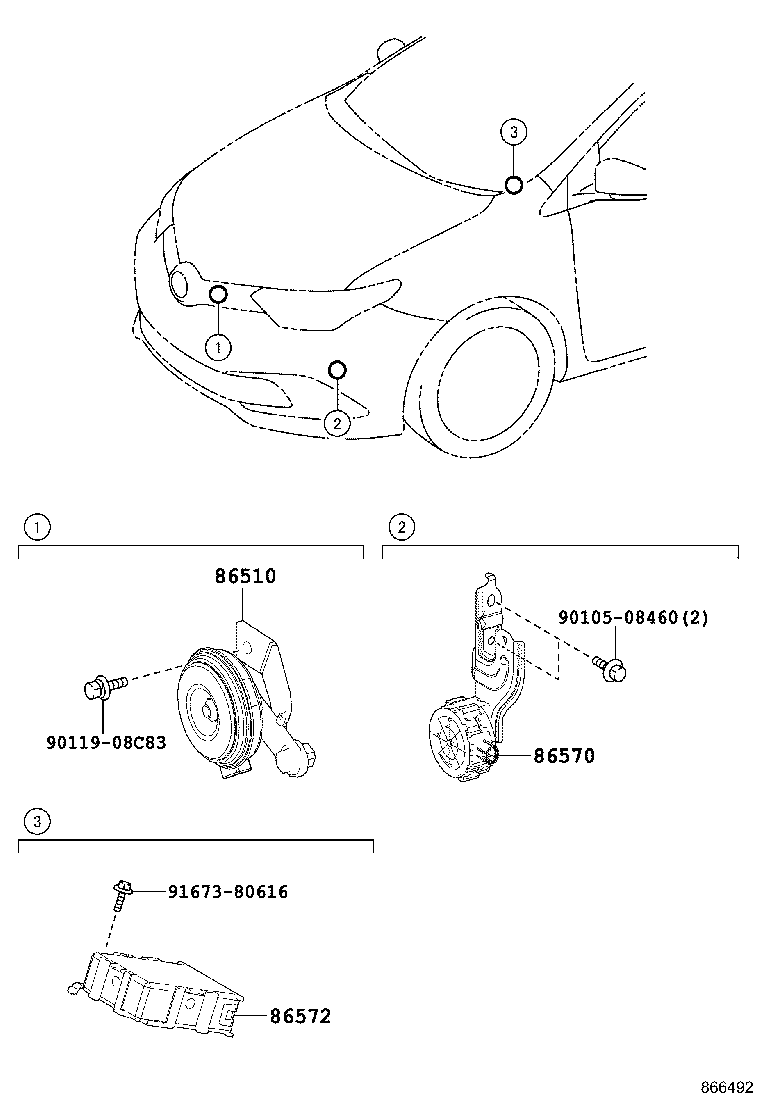

Figure 865120E 865120E 2012-08 → — Figure 866492 866492 2016-04 → —

Part groups

PNCDescription
86510 Horn Assy, High Pitched
86520 Horn Assy, Low Pitched
86570 Speaker Assy, Vehicle Approaching
86572 Controller, Vehicle Approaching Speaker
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
