Toyota Auris

2012-08 → 2018-05 · chassis NRE185,NZE18#,ZRE186,ZWE186 · catalogue 165120 · Japan

Supported model Data version 2018-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

12 part groups · 6 illustrations

Illustrations

Figure 87D105B

87D105B 2012-08 → —

Figure 87D106B

87D106B 2012-08 → —

Figure 87D107B

87D107B 2012-08 → —

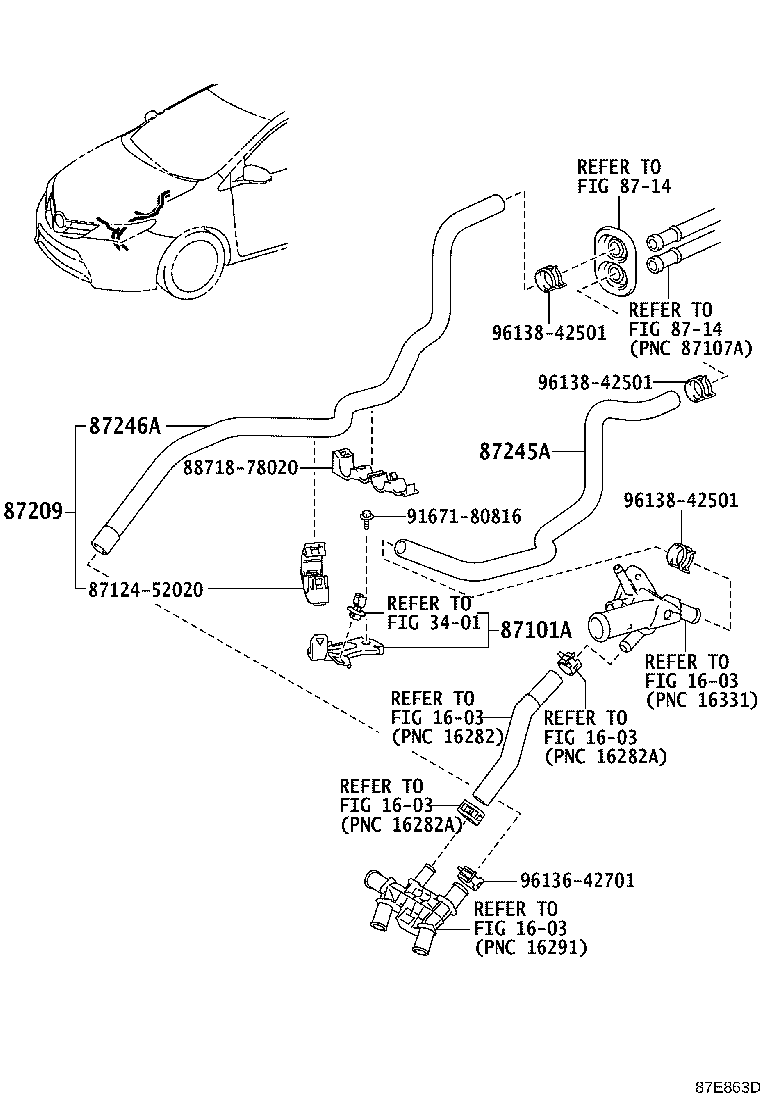

Figure 87E863D

87E863D 2015-03 → —

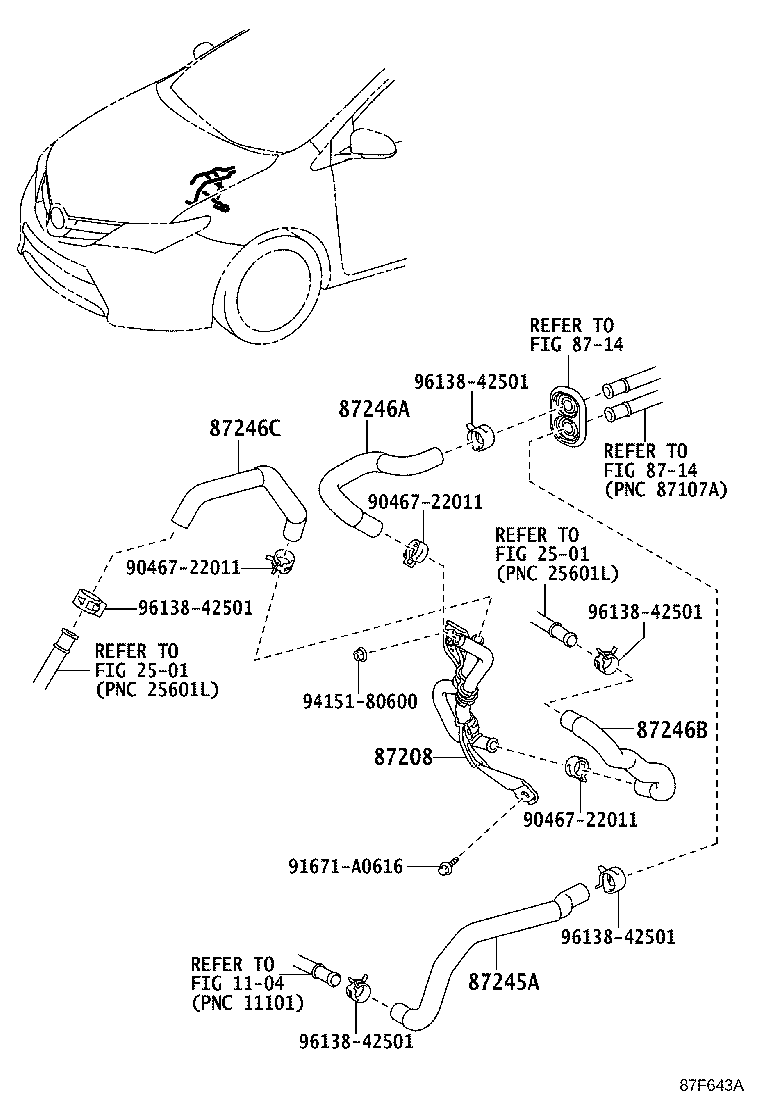

Figure 87F643A

87F643A 2016-04 → —

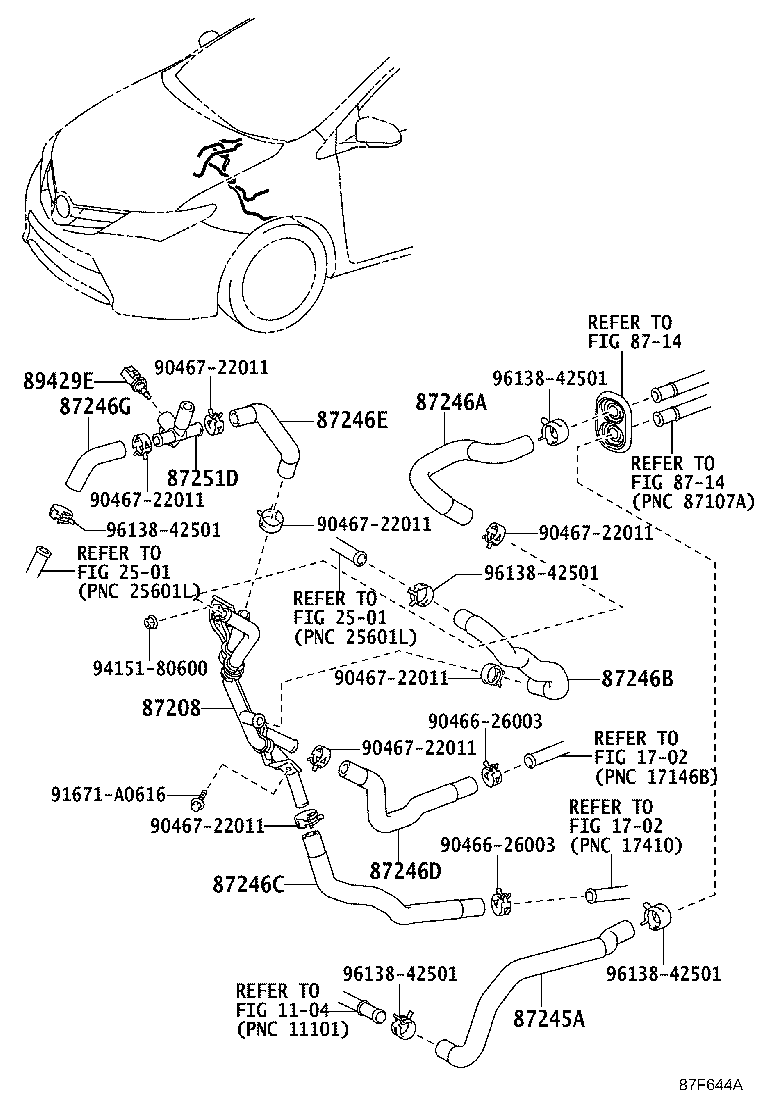

Figure 87F644A

87F644A 2016-04 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87208	Pipe Sub-assy, Heater Water
87209	Hose Sub-assy, Water
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87246E	Hose, Heater Water, Outlet E
87246G	Hose, Heater Water, Outlet G
87251D	Joint, Water, NO.1
89429E	Sensor, Water Temperature

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
