Toyota Corolla Sport

2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan

Supported model Data version 2022-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

3 part groups · 3 illustrations

Illustrations

Figure 167119A

167119A 2018-06 → —

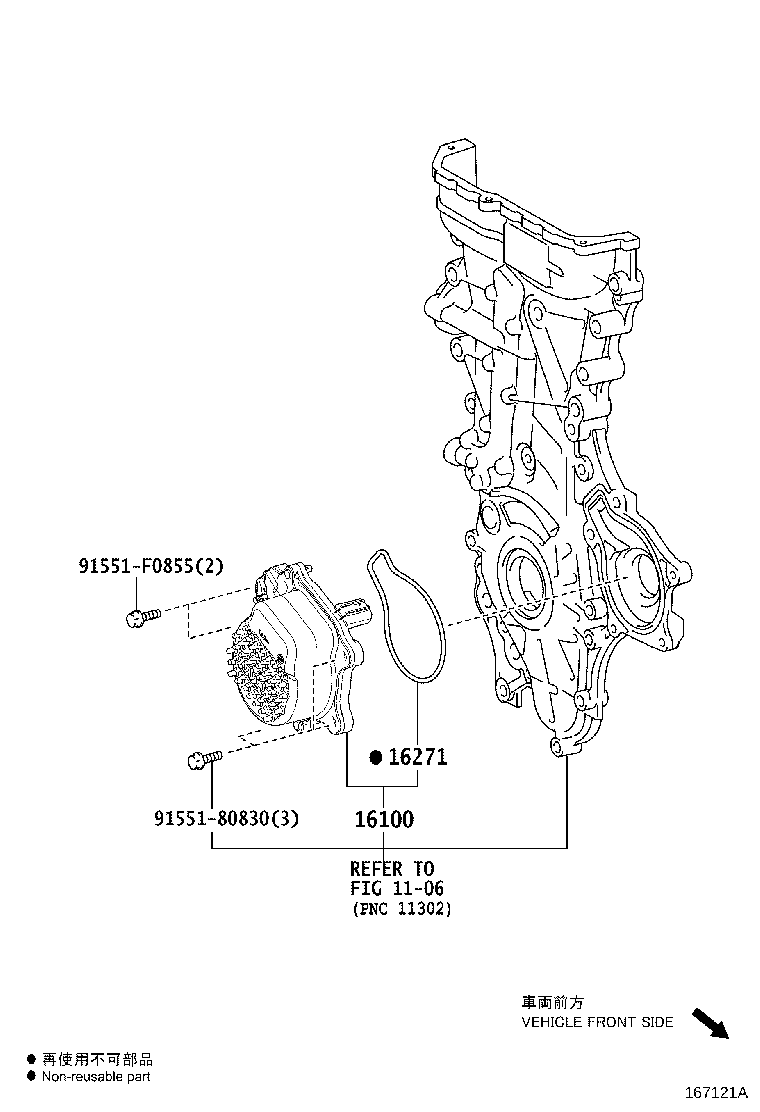

Figure 167121A

167121A 2018-06 → —

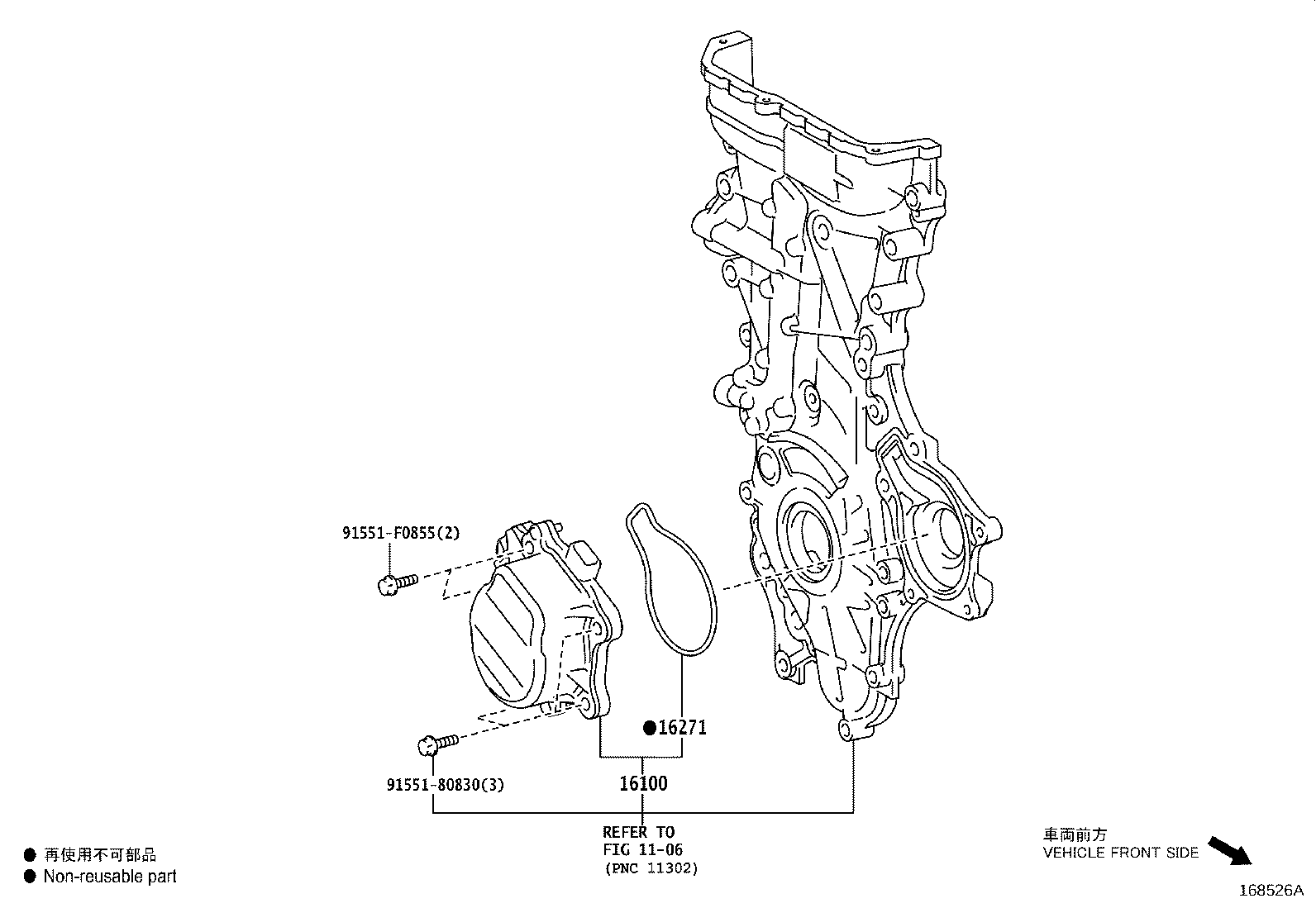

Figure 168526A

168526A 2022-09 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
