Toyota Corolla Sport

2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

12 part groups · 5 illustrations

Illustrations

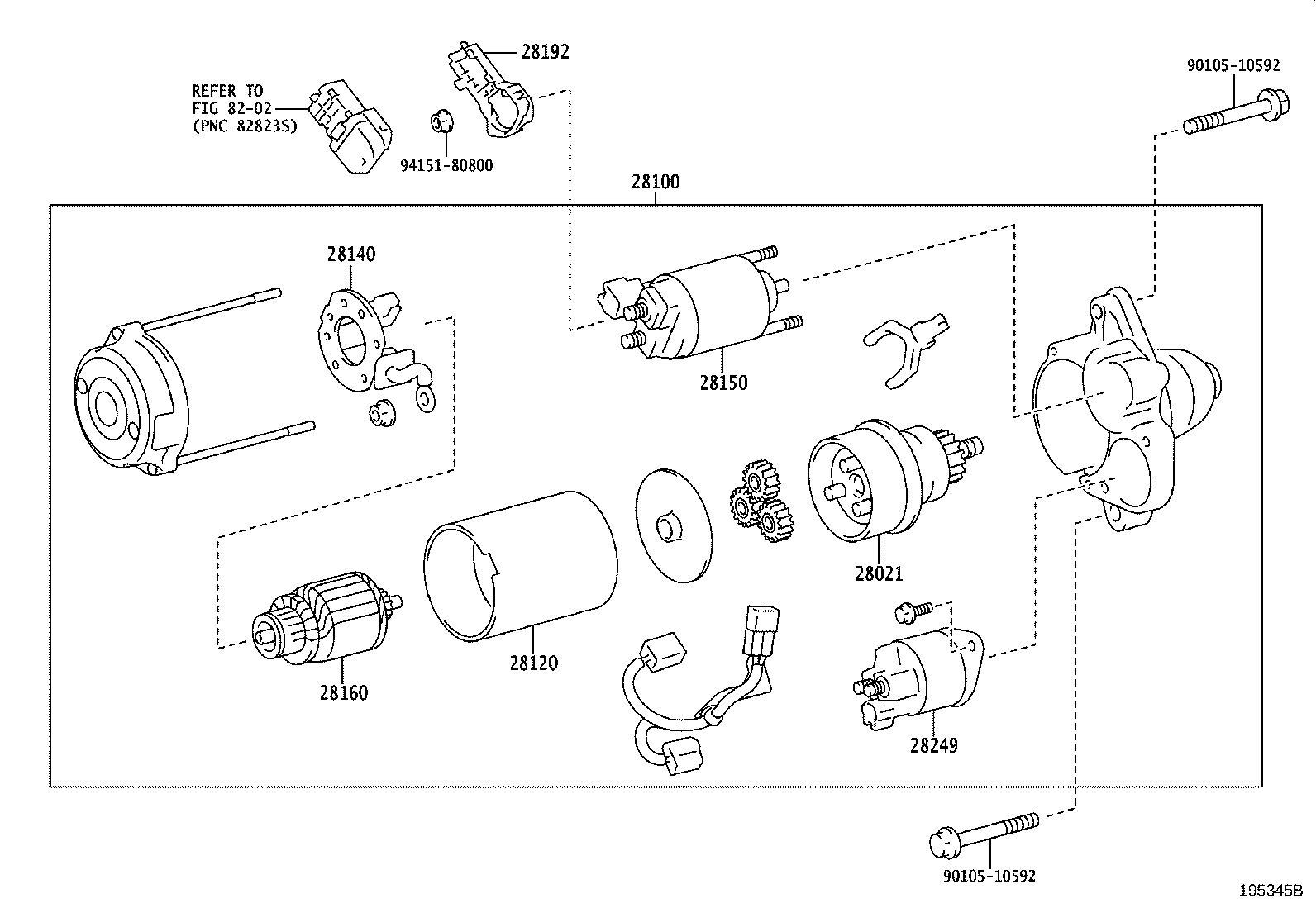

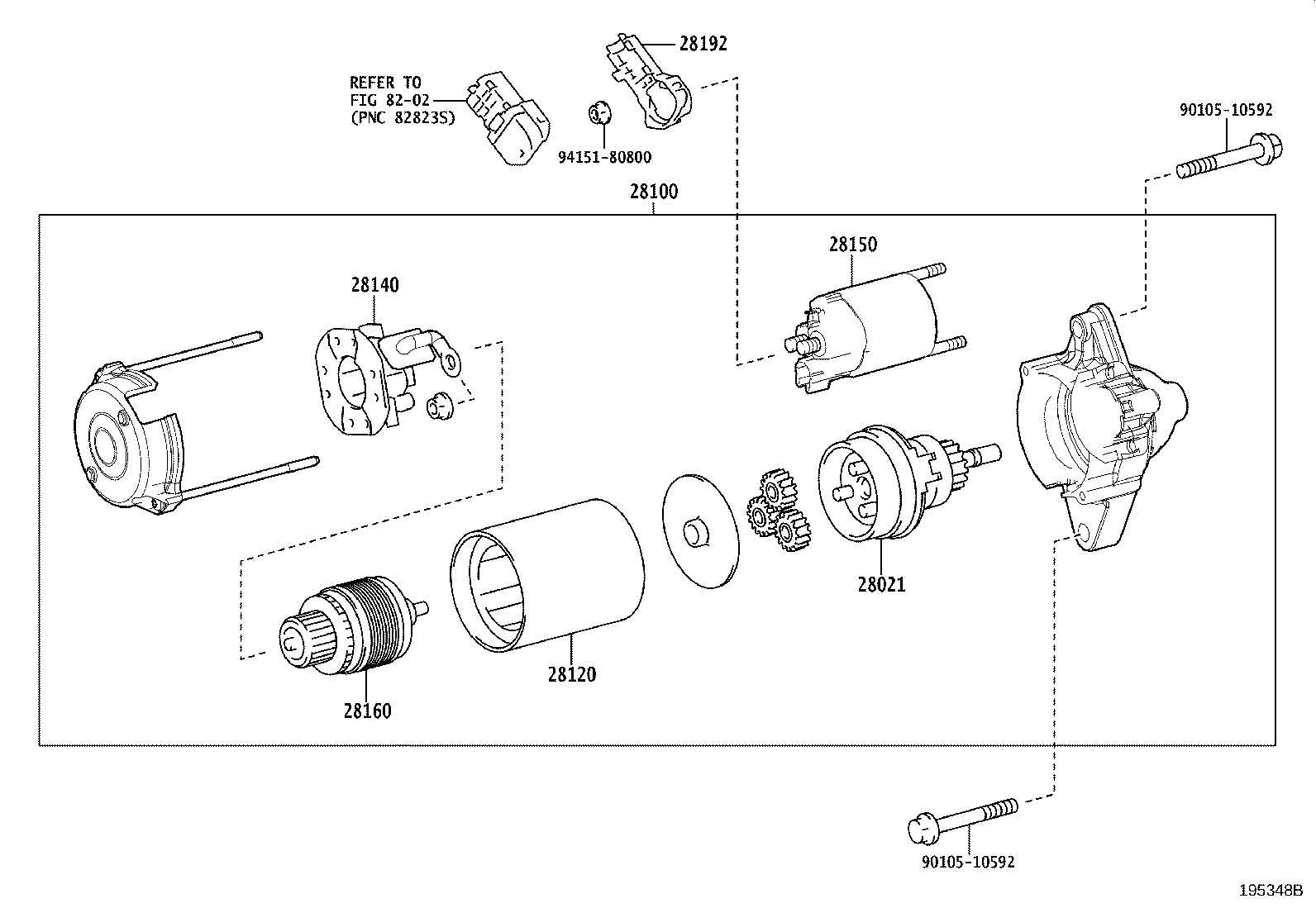

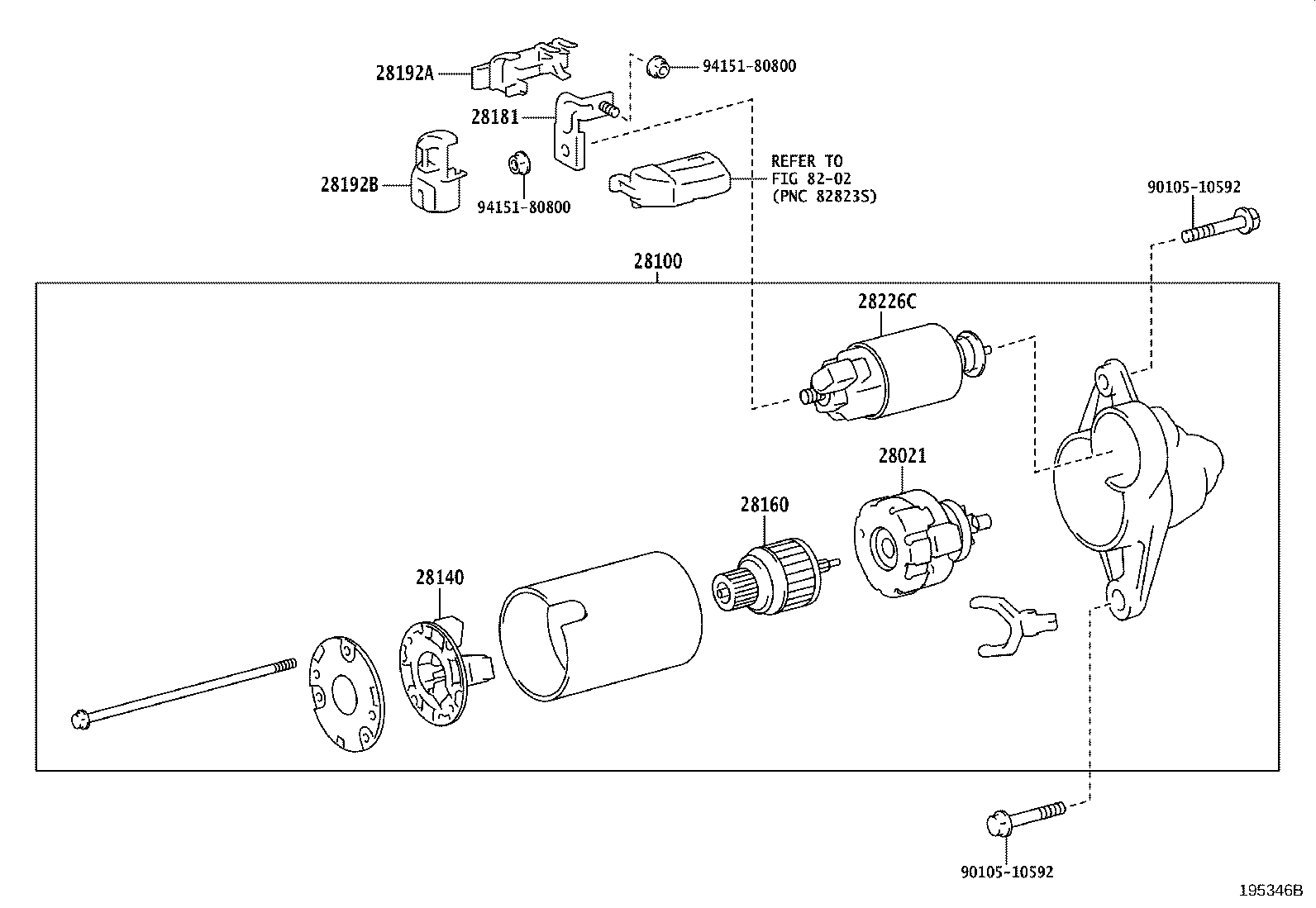

Figure 195343B 195343B 2018-08 → — Figure 195348B 195348B 2018-08 → — Figure 195345B 195345B 2018-06 → — Figure 195346B 195346B 2022-10 → — Figure 195344B 195344B 2022-10 → —

Part groups

PNCDescription
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28120 Yoke Assy, Starter
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28181 Terminal, Starter
28192 Cover, Starter
28192A Cover, Starter, NO.1
28192B Cover, Starter, NO.2
28226C Starter Kit, Repair Service, NO.2
28249 Relay, Starter Inrush Current Reduction
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
