Toyota Corolla Sport
2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan
Supported model
Data version 2022-10

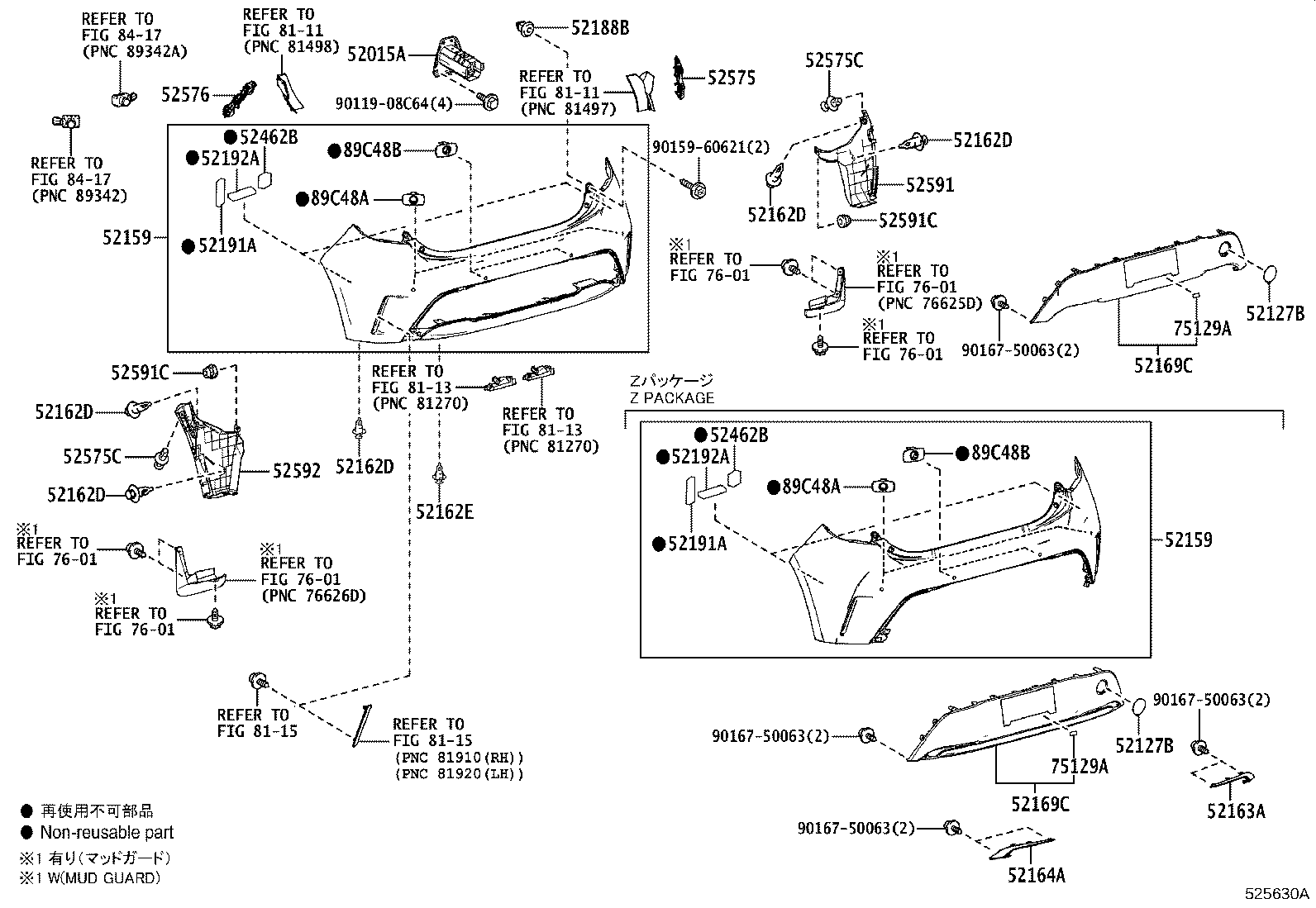

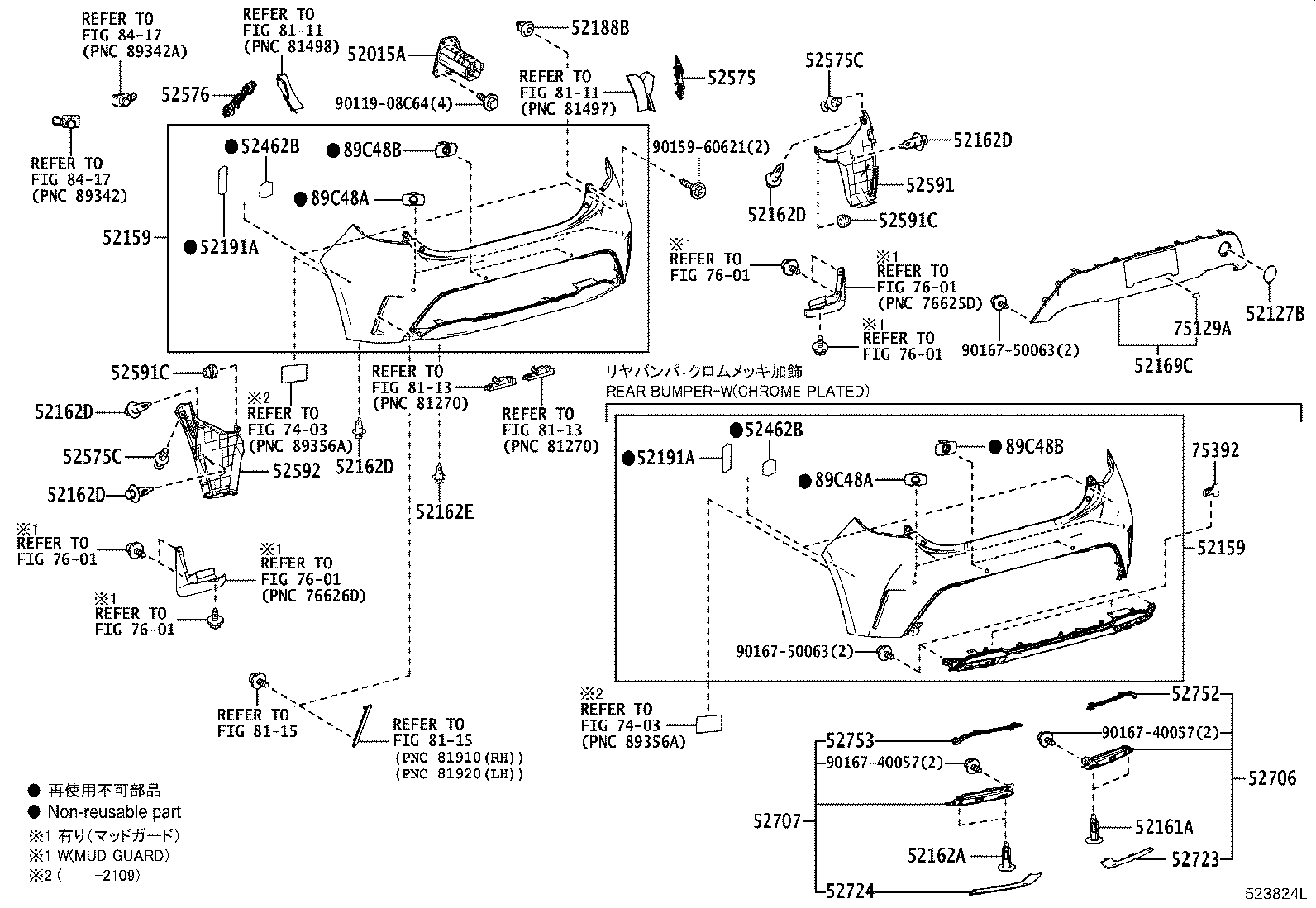

Rear Bumper & Bumper Stay
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 52015A | Arm Sub-assy, Rear Bumper, RH |
| 52127B | Cover, Rear Bumper Hole, RH |
| 52159 | Cover, Rear Bumper |
| 52161A | Piece, Rear Bumper, RH |
| 52162A | Piece, Rear Bumper, LH |
| 52162D | Piece, Rear Bumper |
| 52162E | Piece, Rear Bumper |
| 52163A | Plate, Rear Bumper, RH |
| 52164A | Plate, Rear Bumper, LH |
| 52169C | Cover, Rear Bumper, Lower |
| 52188B | Spacer, Rear Bumper Mounting |
| 52191A | Seal, Rear Bumper Arm |
| 52192A | Seal, Rear Bumper Arm |
| 52462B | Pad, Rear Bumper |
| 52575 | Retainer, Rear Bumper Side, RH |
| 52575C | Clip, Rear Bumper Side Retainer |
| 52576 | Retainer, Rear Bumper Side, LH |
| 52591 | Seal, Rear Bumper Side, RH |
| 52591C | Clip, Rear Bumper Side Seal |
| 52592 | Seal, Rear Bumper Side, LH |
| 52706 | Moulding Sub-assy, Rear Bumper Side, RH |
| 52707 | Moulding Sub-assy, Rear Bumper Side, LH |
| 52723 | Moulding, Rear Bumper Extension, RH |
| 52724 | Moulding, Rear Bumper Extension, LH |
| 52752 | Moulding, Rear Bumper Side, RH |
| 52753 | Moulding, Rear Bumper Side, LH |
| 75129A | Cushion, Rear Licence Plate |
| 75392 | Retainer, Outside Moulding |
| 89C48A | Retainer, Ultrasonic Sensor, Rear Corner |
| 89C48B | Retainer, Ultrasonic Sensor, Rear Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
