Toyota Corolla Sport

2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

10 part groups · 2 illustrations

Illustrations

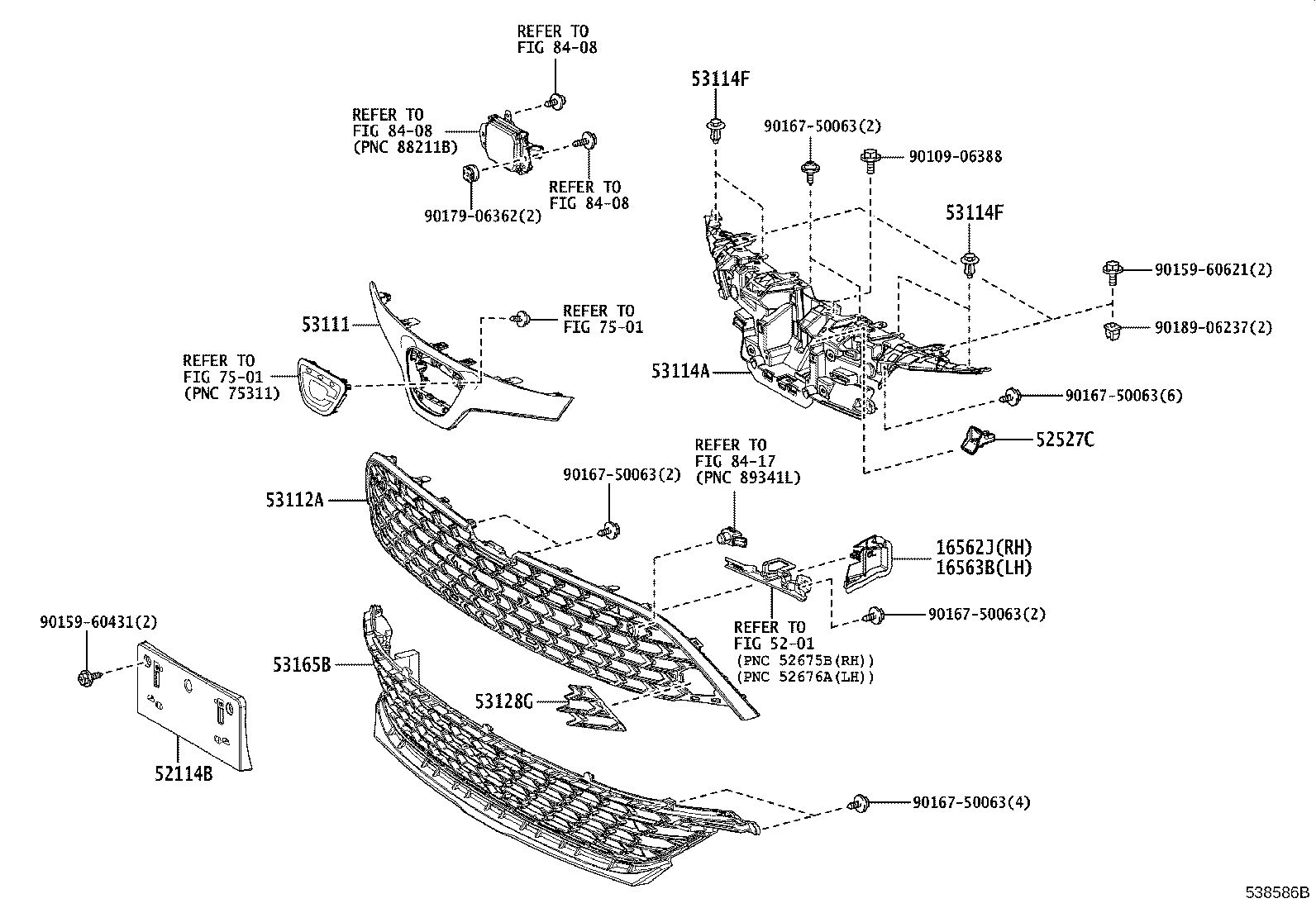

Figure 535590D 535590D 2018-06 → — Figure 538586B 538586B 2022-10 → —

Part groups

PNCDescription
16562J Seal, Radiator TO Support, NO.2
16563B Seal, Radiator TO Support, NO.3
52114B Bracket, Front Bumper Extension Mounting
52527C Retainer, Front Bumper, Lower NO.2
53111 Grille, Radiator
53112A Grille, Radiator, Lower
53114A Grille, Radiator, Inner
53114F Clip, Radiator Grille
53128G Grille, Radiator, Lower Side LH
53165B Support, Radiator, Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
