Toyota Corolla Sport
2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan
Supported model
Data version 2022-10

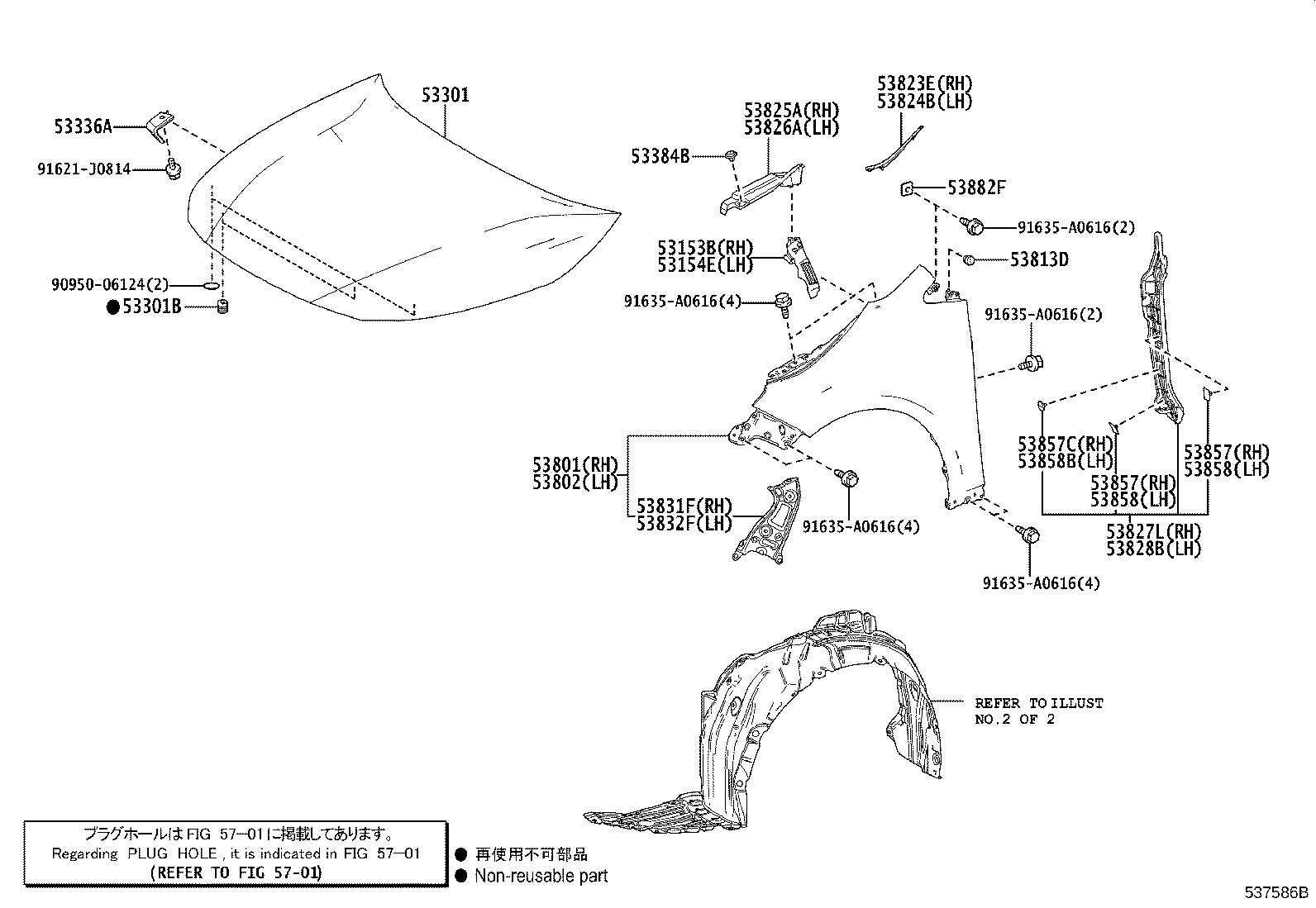

Hood & Front Fender
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53153B | Guide, Front Side Air |
| 53154E | Guide, Front Side Air, NO.2 |
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53336A | Bracket, Hood Stay |
| 53384B | Cushion, Hood, Center |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53813D | Extension, Front Fender |
| 53823E | Protector, Front Side Panel, NO.2 RH |
| 53824B | Protector, Front Side Panel, NO.2 LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828B | Protector, Front Fender Side Panel, LH |
| 53831F | Panel, Front Fender Side, RH |
| 53832F | Panel, Front Fender Side, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53857C | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |

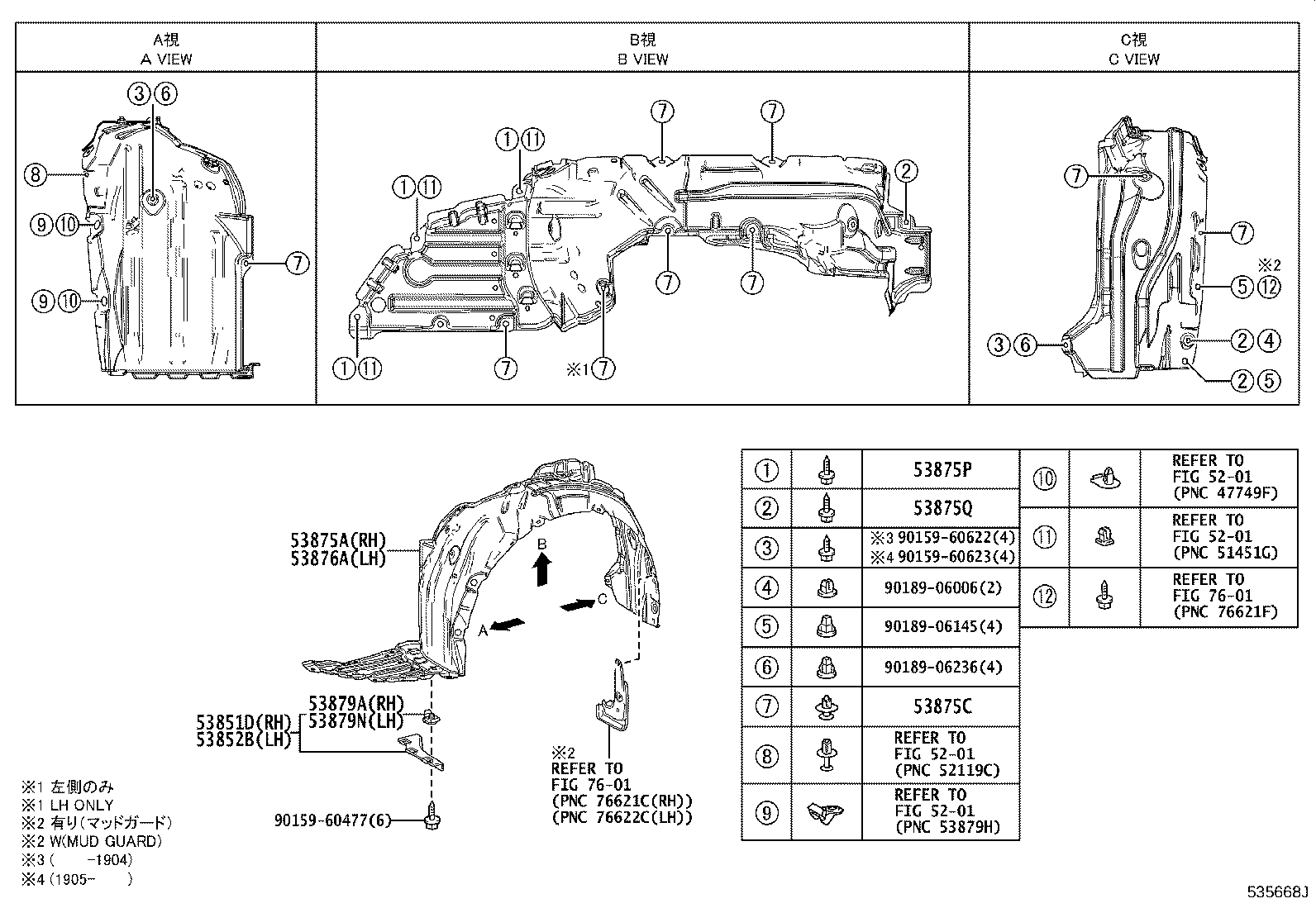

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53879N | Retainer, Front Fender Liner, LH |
| 53882F | Seal, Front Fender |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
