Toyota Corolla Sport

2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

4 part groups · 4 illustrations

Illustrations

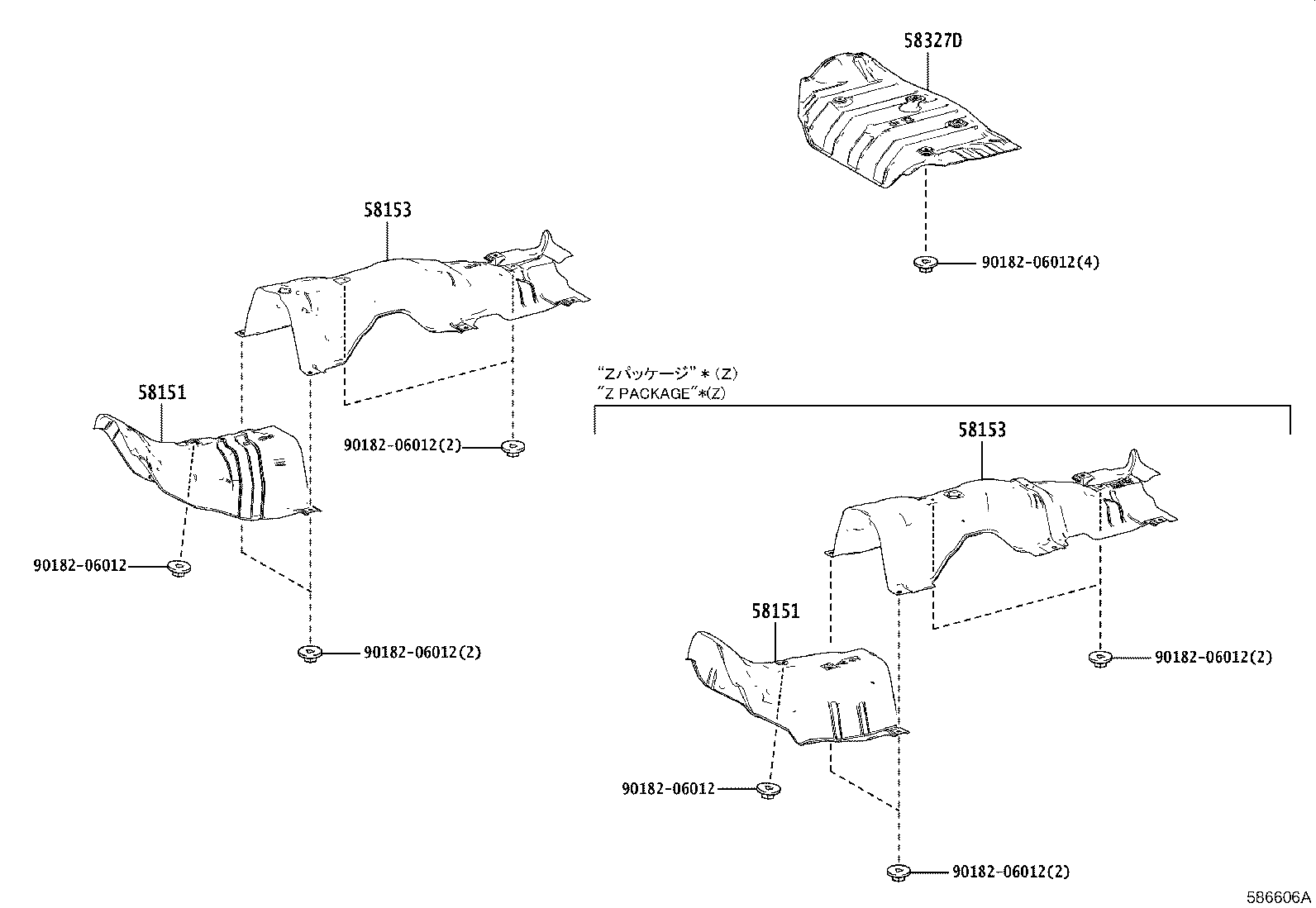

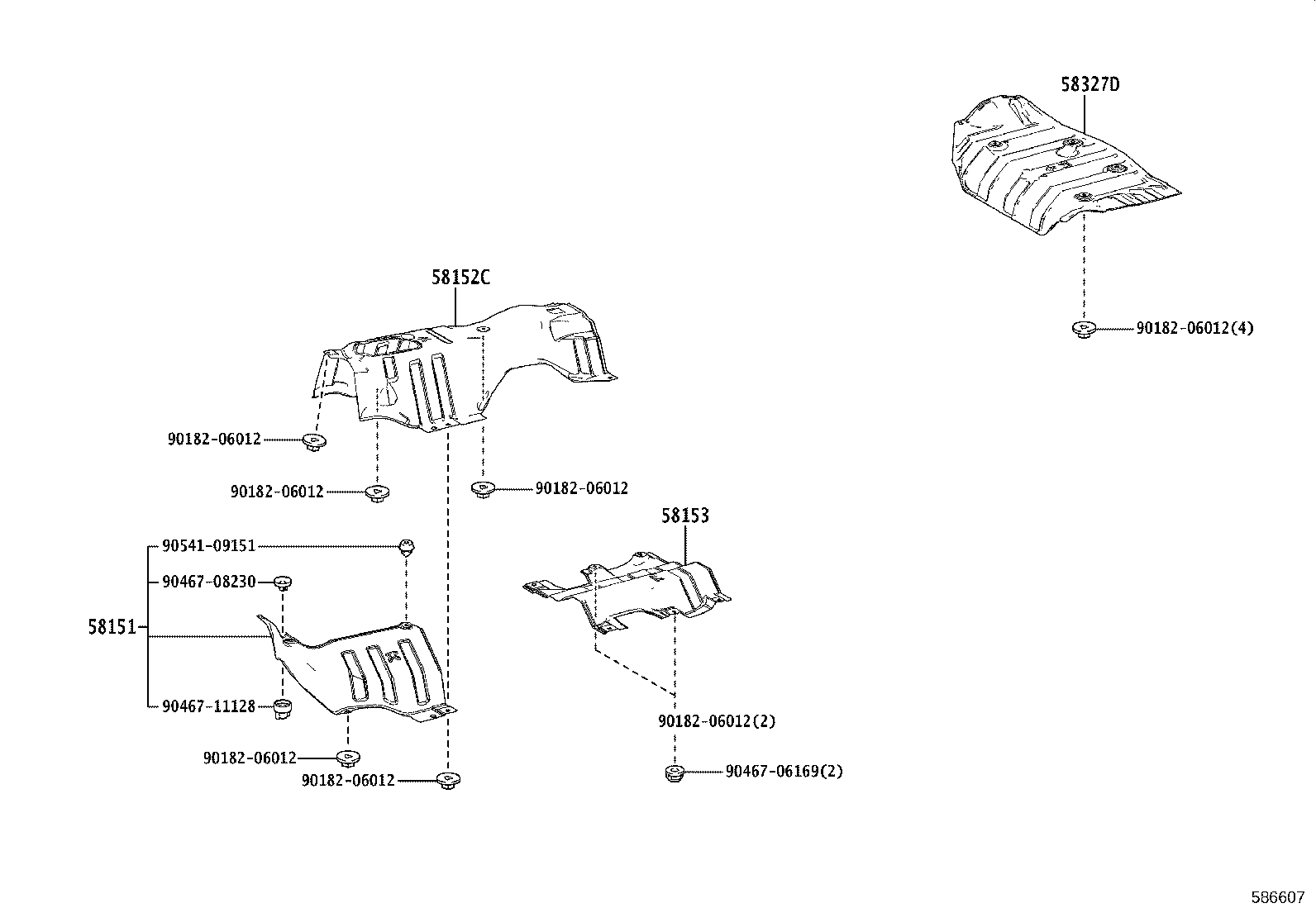

Figure 586673 586673 2018-06 → — Figure 586607 586607 2018-06 → — Figure 586648 586648 2018-06 → — Figure 586606A 586606A 2022-10 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58152C Insulator, Floor Heat, NO.2
58153 Insulator, Front Floor Heat, NO.2
58327D Insulator, Main Muffler Heat, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
