Toyota Corolla Sport

2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

5 part groups · 3 illustrations

Illustrations

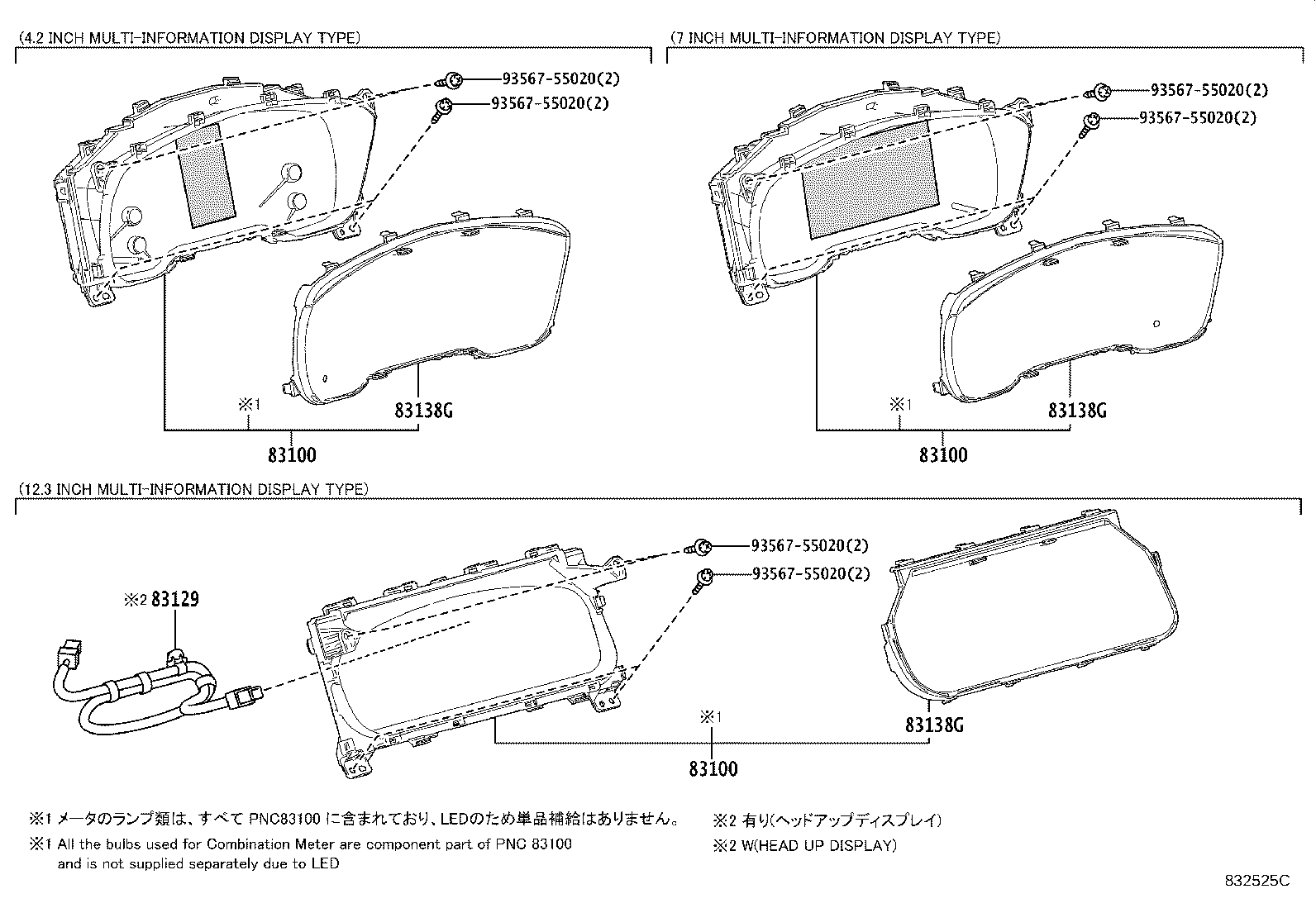

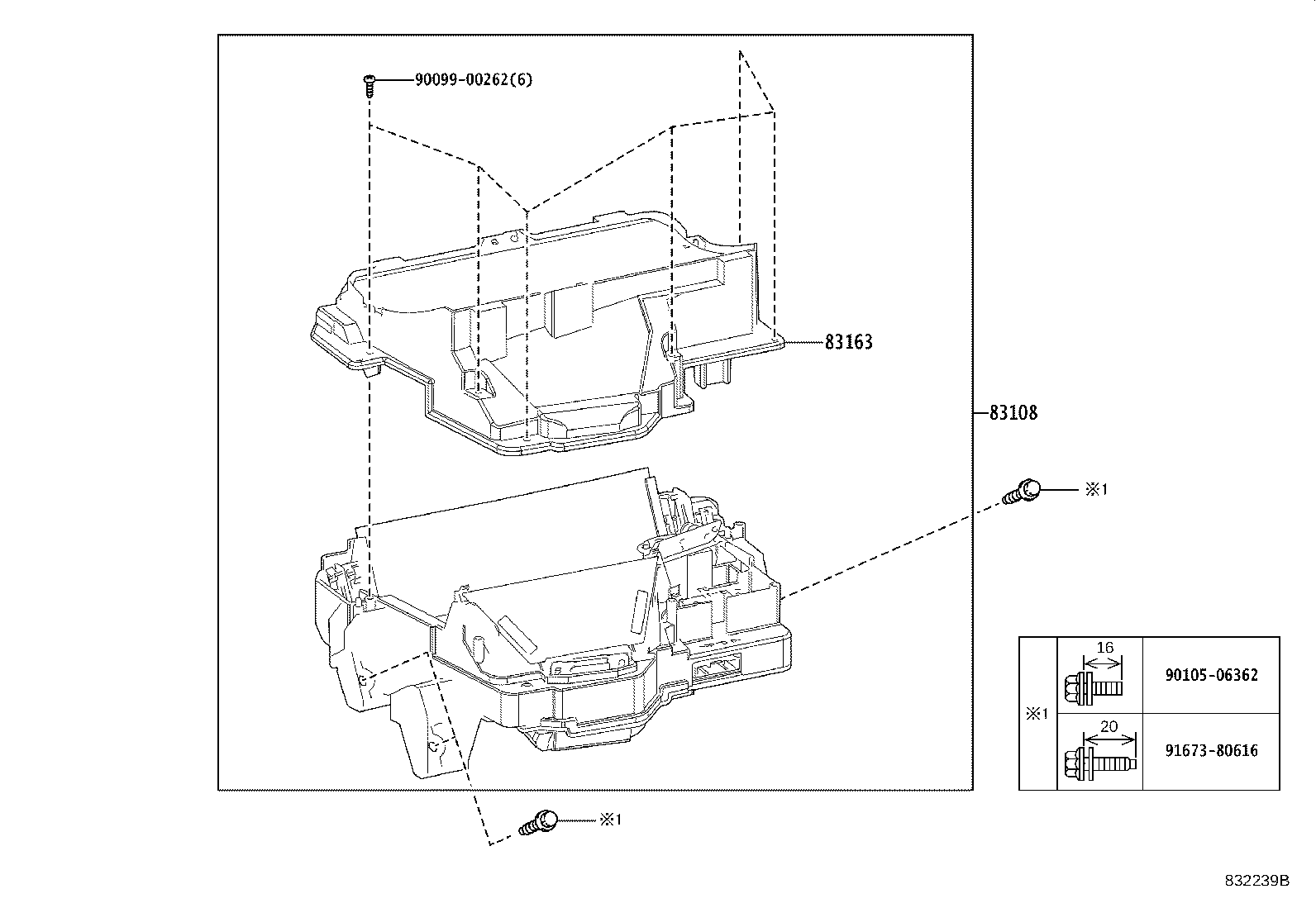

Figure 832237 832237 2018-06 → — Figure 832525C 832525C 2022-10 → — Figure 832239B 832239B 2018-06 → —

Part groups

PNCDescription
83100 Meter Assy, Combination
83108 Mirror Sub-assy, Meter
83129 Wire, Meter
83138G Glass, Combination Meter
83163 Plate, Combination Meter Mirror, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
