Toyota Corolla Sport

2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Inverter

11 part groups · 4 illustrations

Illustrations

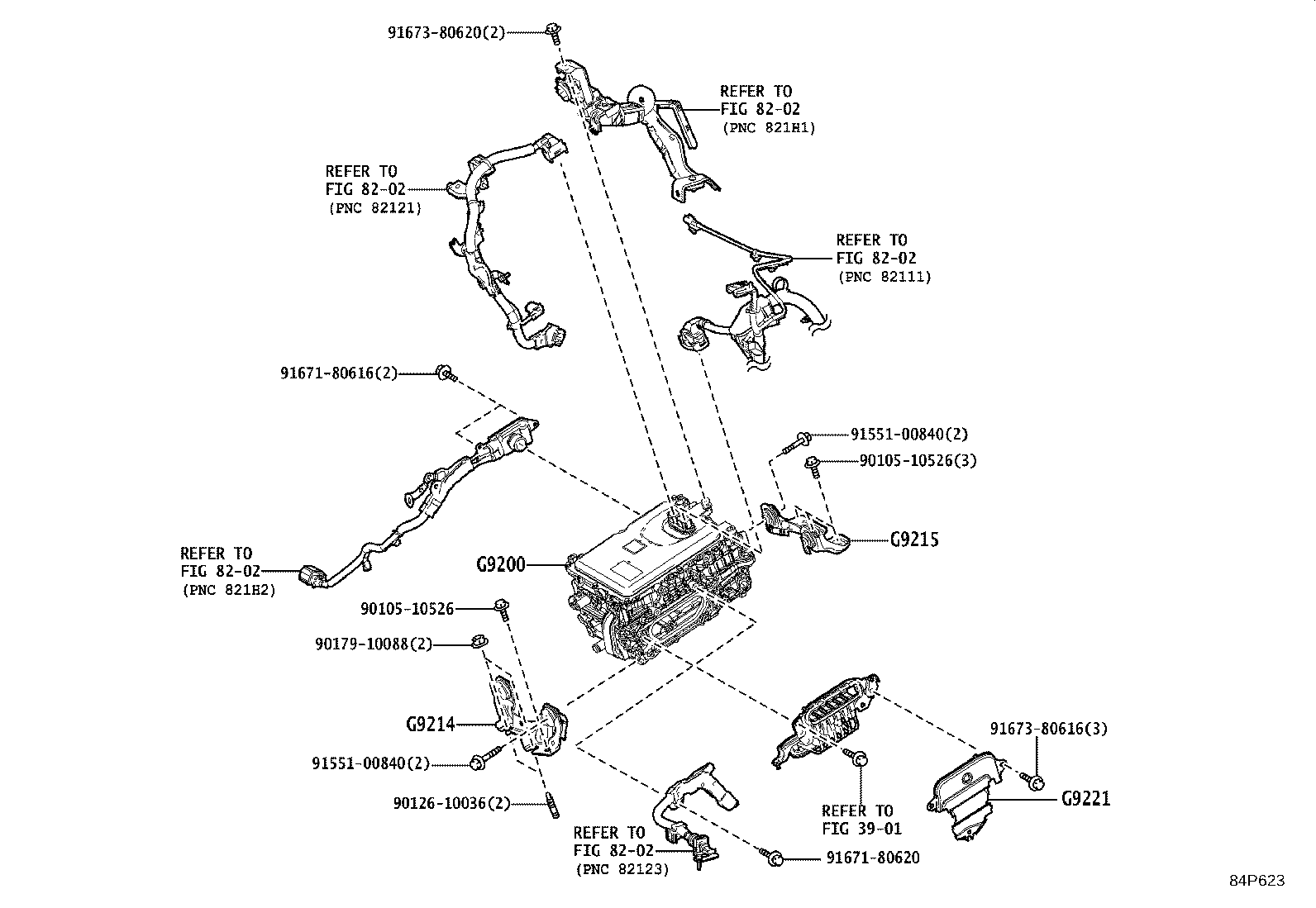

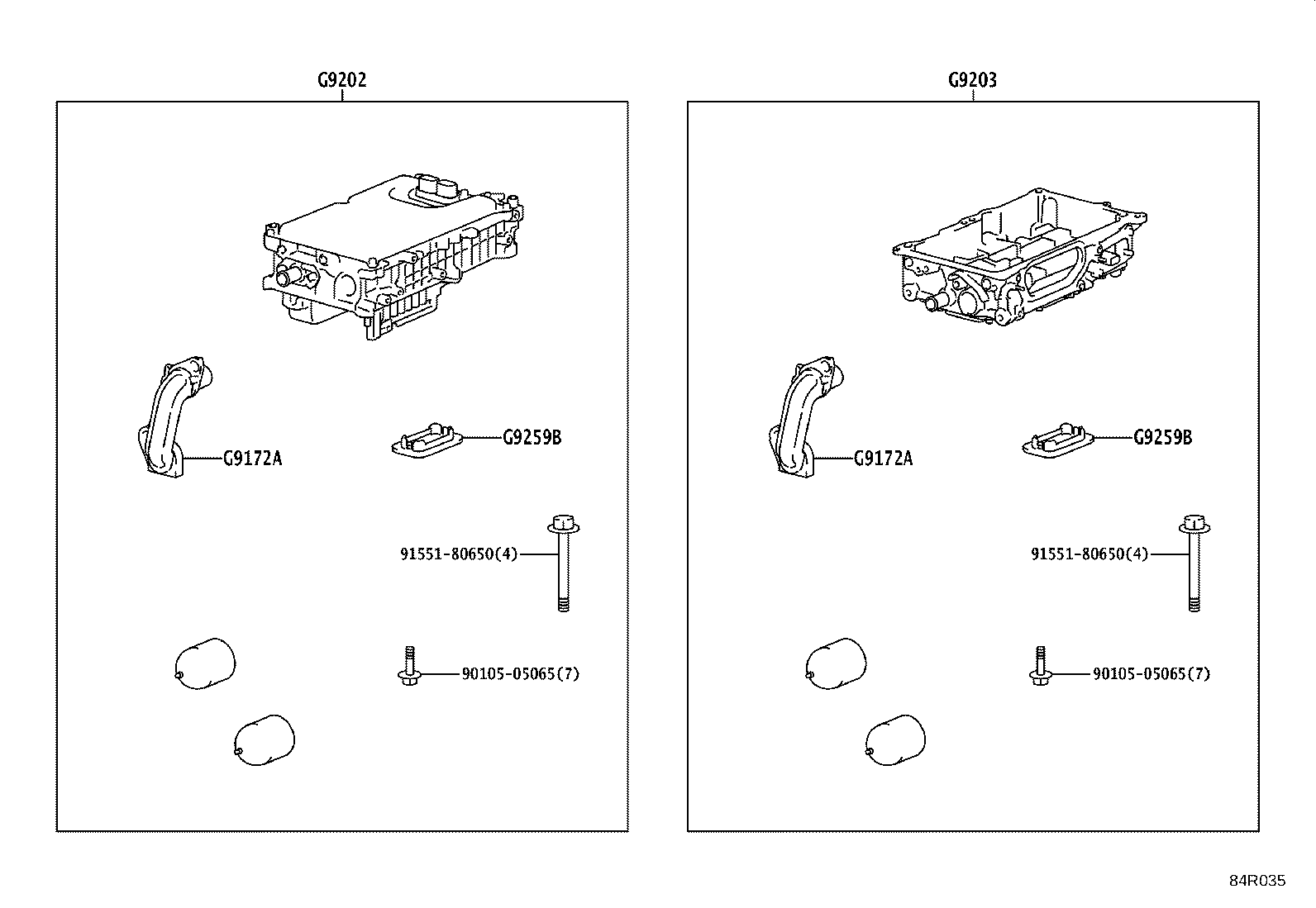

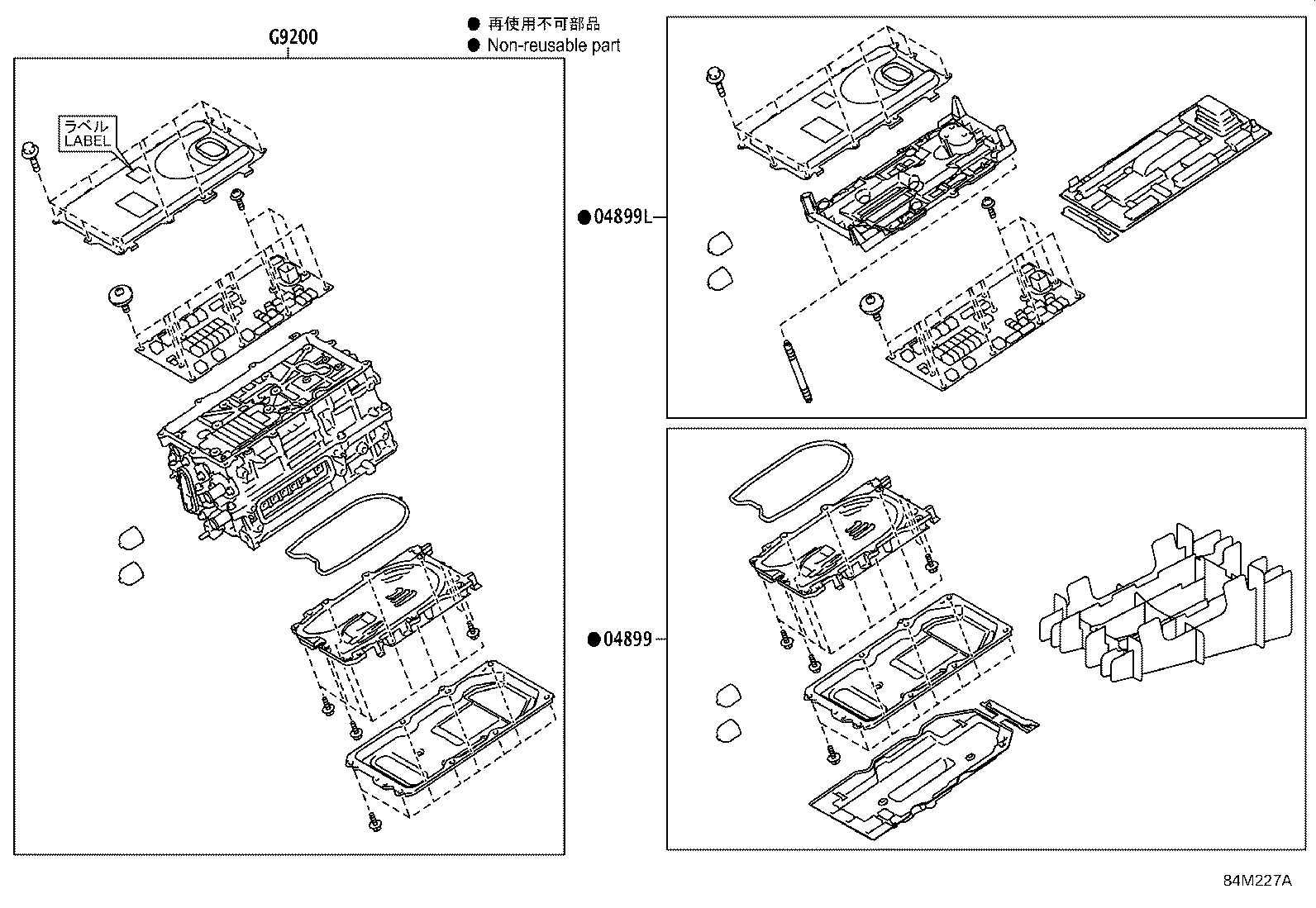

Figure 84J093D 84J093D 2018-06 → — Figure 84M227A 84M227A 2018-06 → — Figure 84P623 84P623 2022-10 → — Figure 84R035 84R035 2022-10 → —

Part groups

PNCDescription
04899 Converter Kit, HV
04899L Computer Kit, Motor Generator Control
G9172A Clamp, Inverter Cooling Pipe
G9200 Inverter Assy, W/Converter
G9202 Case Sub-assy, Inverter
G9203 Case Sub-assy, Converter
G9214 Bracket, Inverter, NO.1
G9215 Bracket, Inverter, NO.2
G921E Protector, Inverter
G9221 Cover, Inverter
G9259B Plug, Inverter Drain
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
