Toyota Corolla Sport

2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan

Supported model Data version 2022-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

11 part groups · 4 illustrations

Illustrations

Figure 867233C

867233C 2018-06 → —

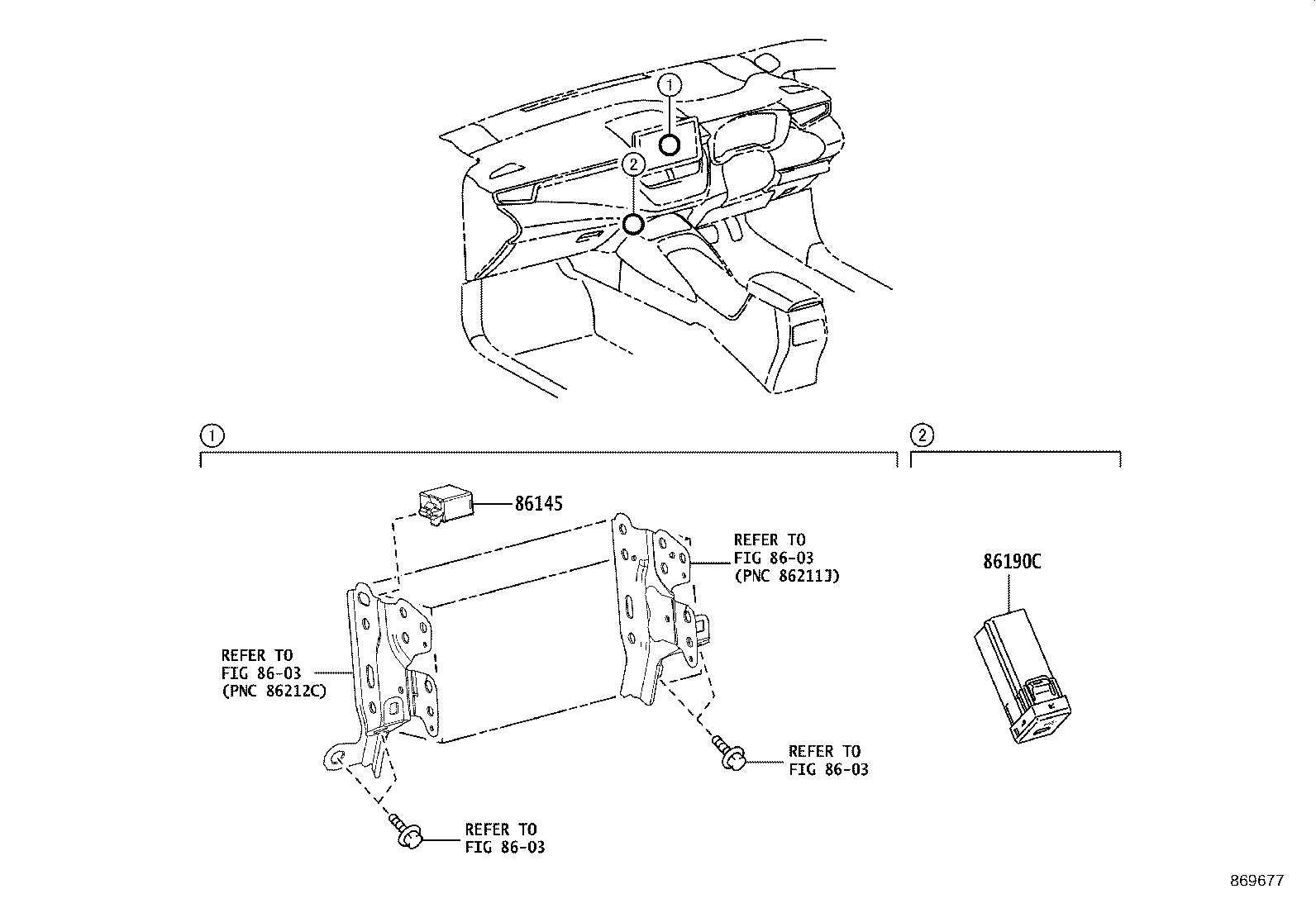

869677 2022-10 → —

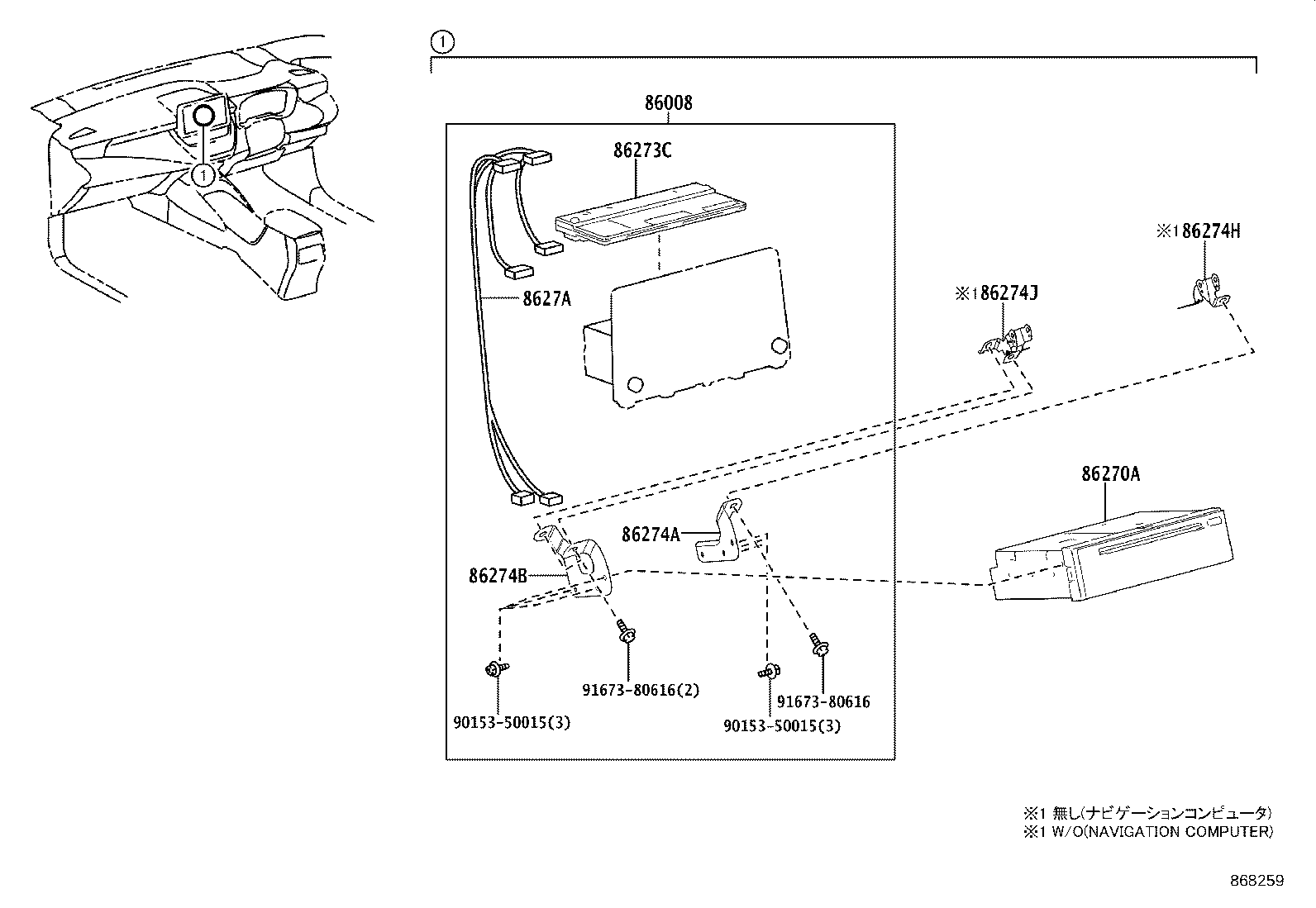

868259 2020-06 → —

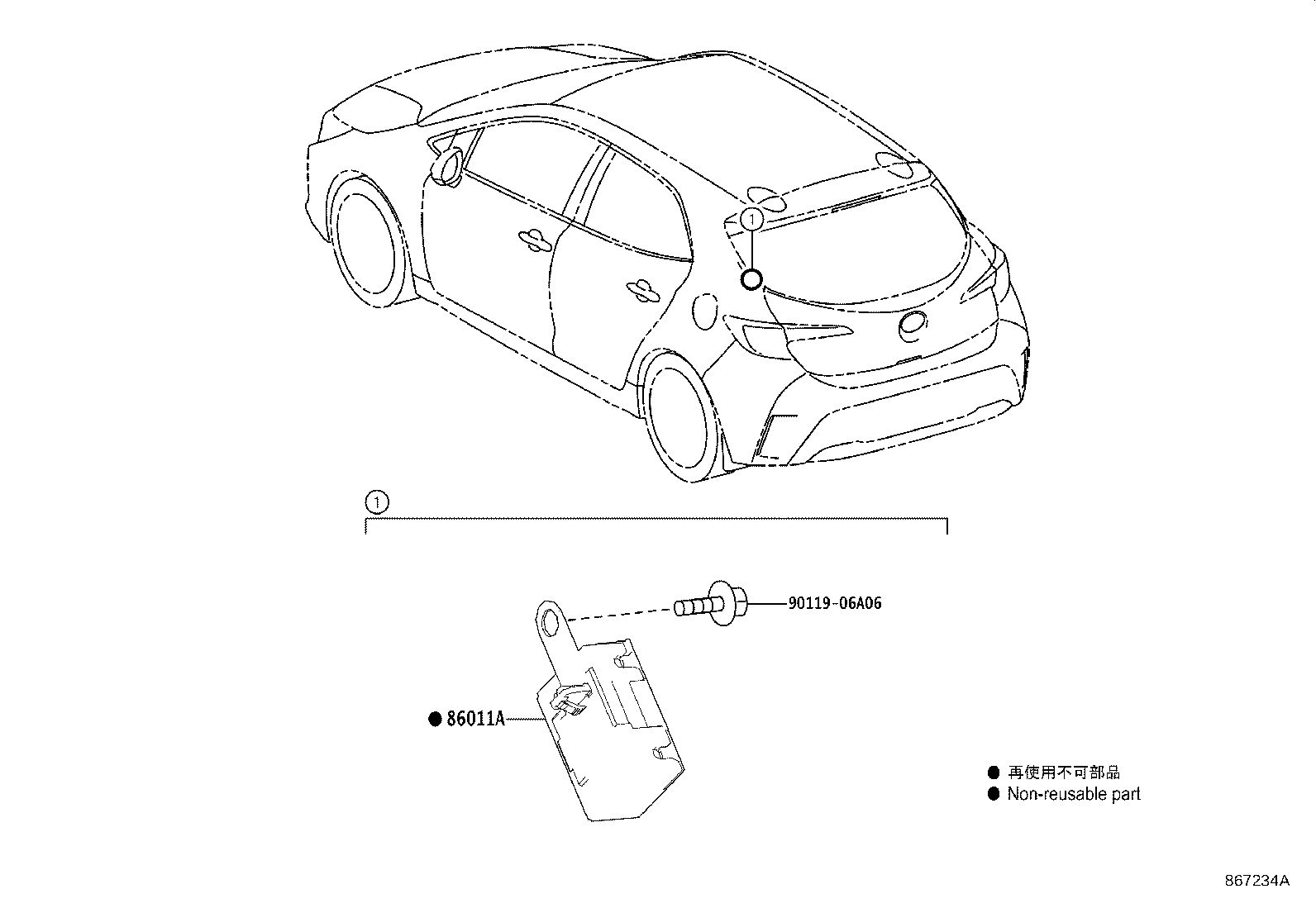

Figure 867234A

867234A 2018-06 → —

Part groups

PNC	Description
86008	Deck Set, Disc Player
86011A	Condenser, Radio Setting
86145	Connector, Antenna Male
86190C	Adapter Assy, Stereo Jack, NO.1
86270A	Disc Player Assy
86273C	Adapter, Disc Player
86274A	Bracket, Disc Player
86274B	Bracket, Disc Player
86274H	Bracket, Disc Player
86274J	Bracket, Disc Player
8627A	Wire, Disc Player

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
