Toyota Corolla Sport
2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan
Supported model
Data version 2022-10

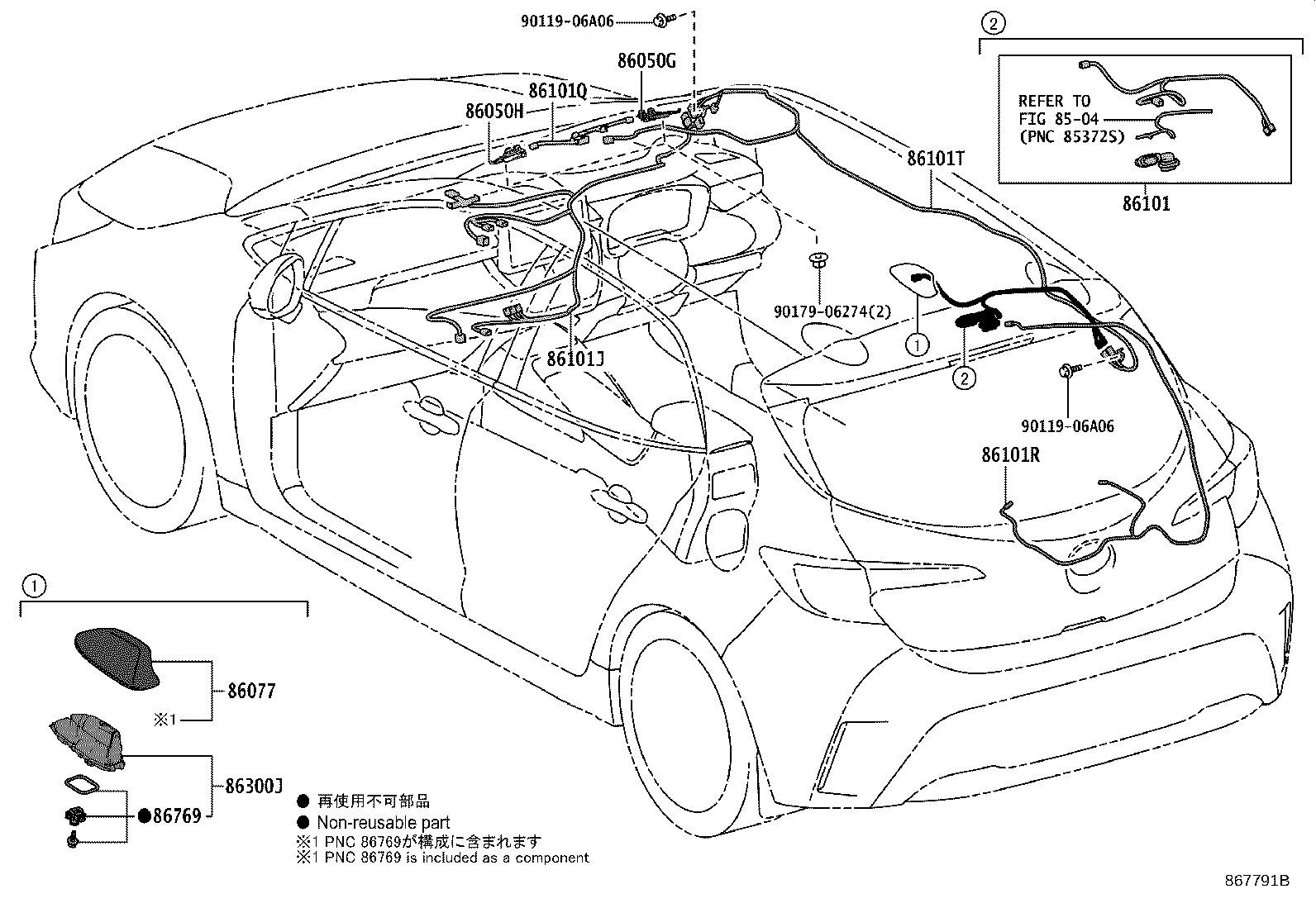

Antenna
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86050G | Antenna Assy, Television, NO.1 RH |
| 86050H | Antenna Assy, Television, NO.1 LH |
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86101R | Cord Sub-assy, Antenna, NO.5 |
| 86101T | Cord Sub-assy, Antenna |
| 86300J | Antenna Assy, Roof |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
