Toyota Corolla Sport
2018-06 → present · chassis NRE21#,ZWE21#,MZEA12 · catalogue 165130 · Japan
Supported model
Data version 2022-10
Telephone & Mayday
9 part groups · 4 illustrations
Part groups

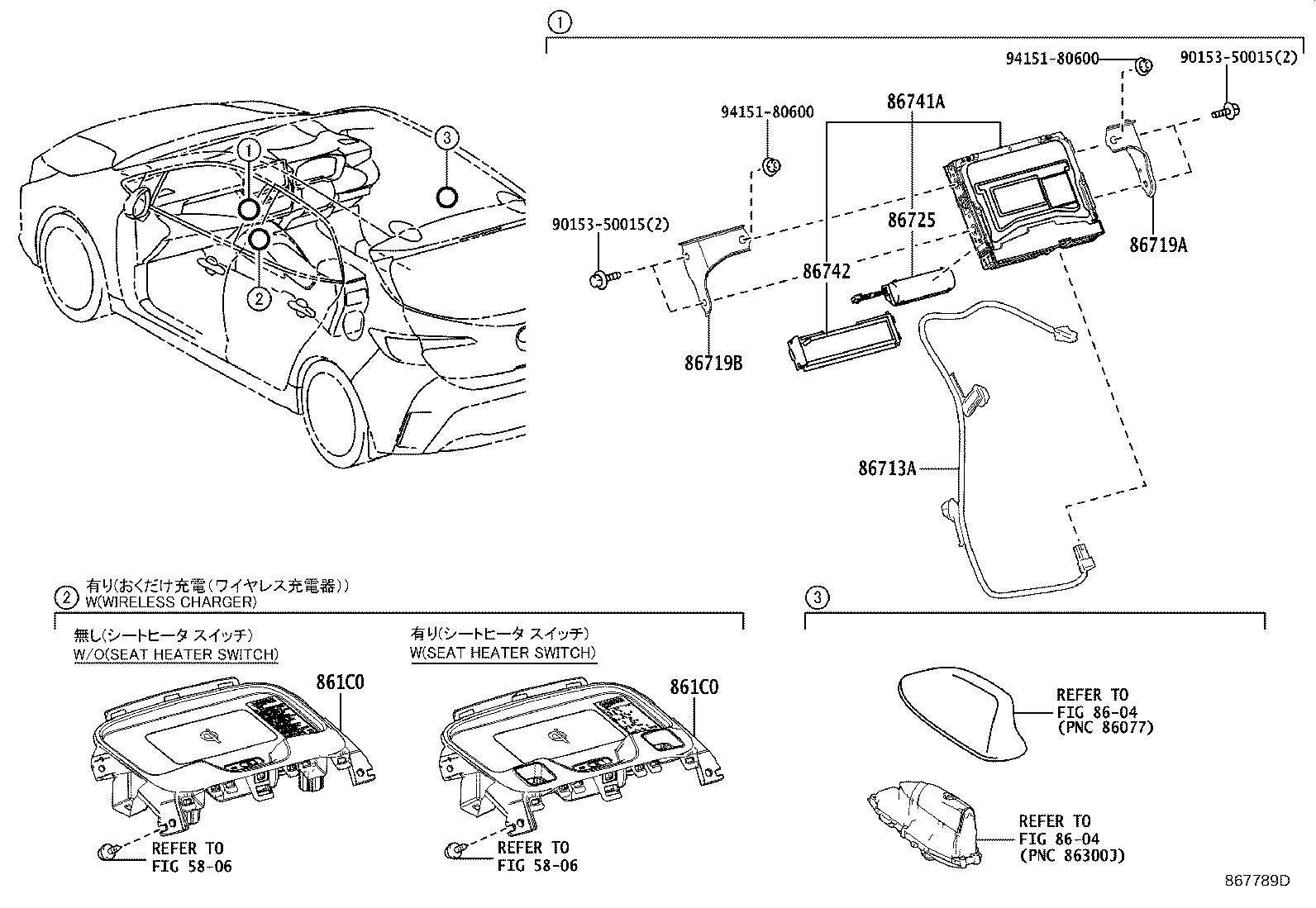

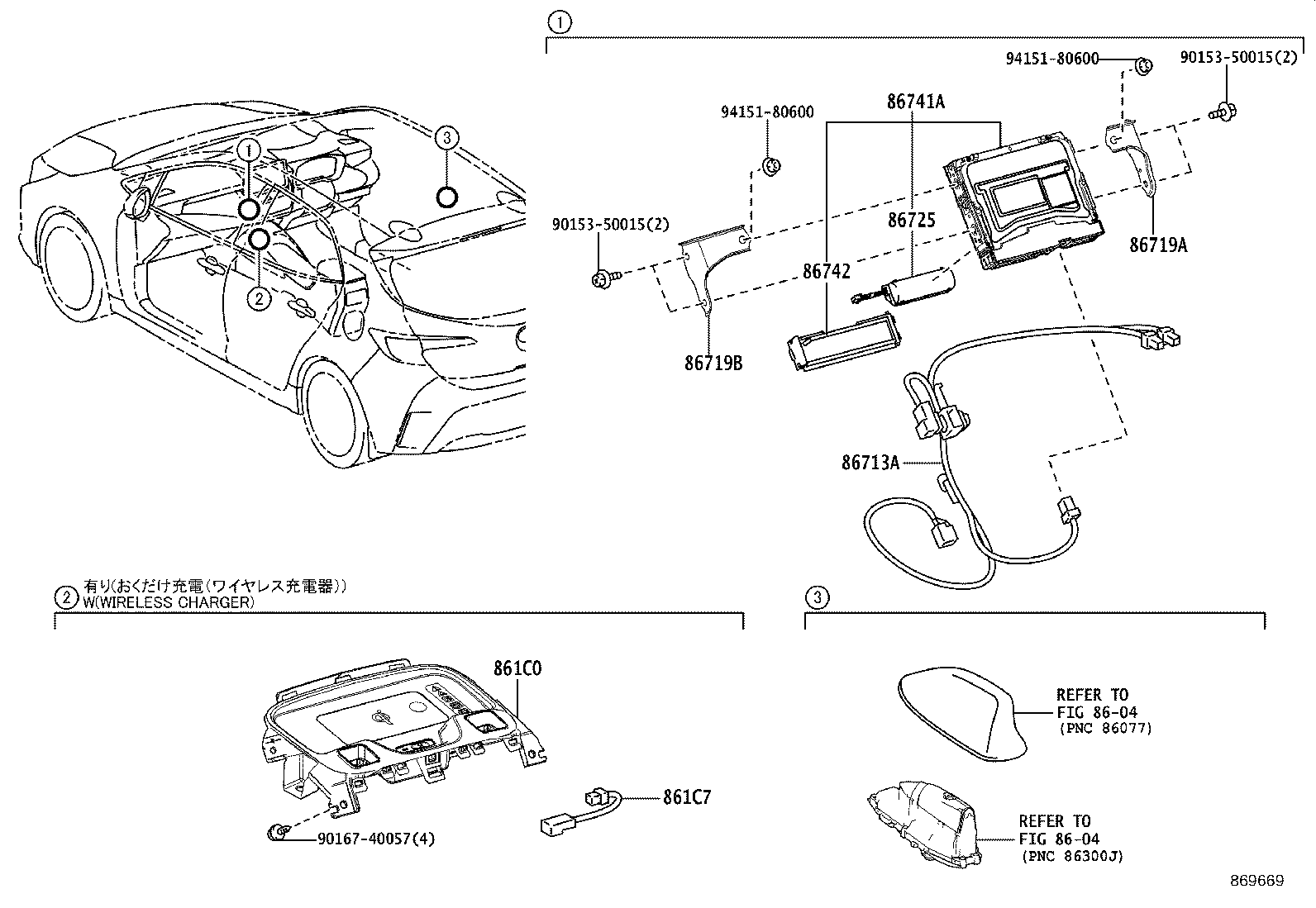

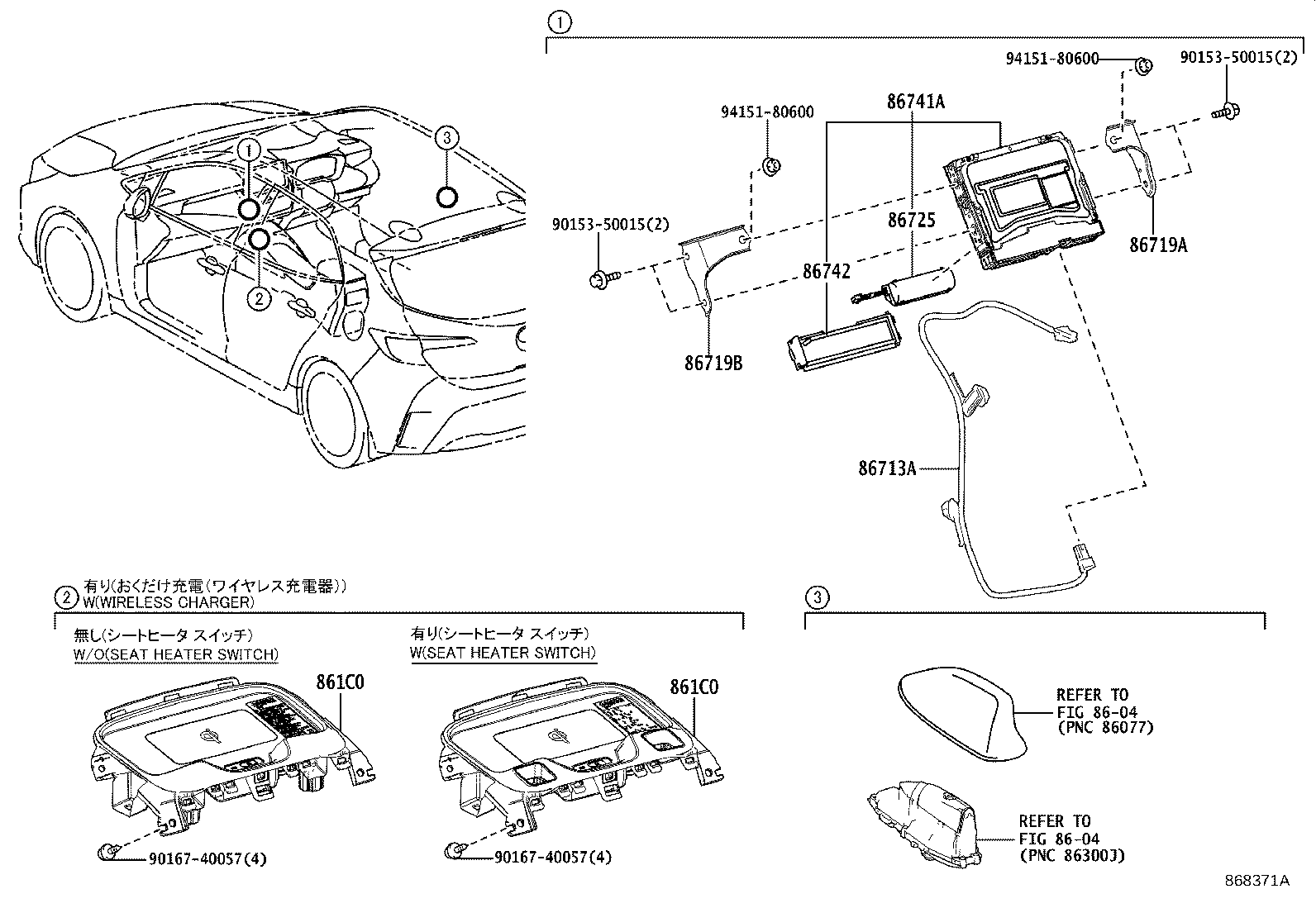

| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 861C7 | Cord, Mobile Wireless Charger |
| 86713A | Wire, Telephone Computer, (TO TRANSCEIVER) |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
