Toyota GR Corolla

2022-12 → present · chassis GZEA14 · catalogue 16E110 · Japan

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

9 part groups · 3 illustrations

Illustrations

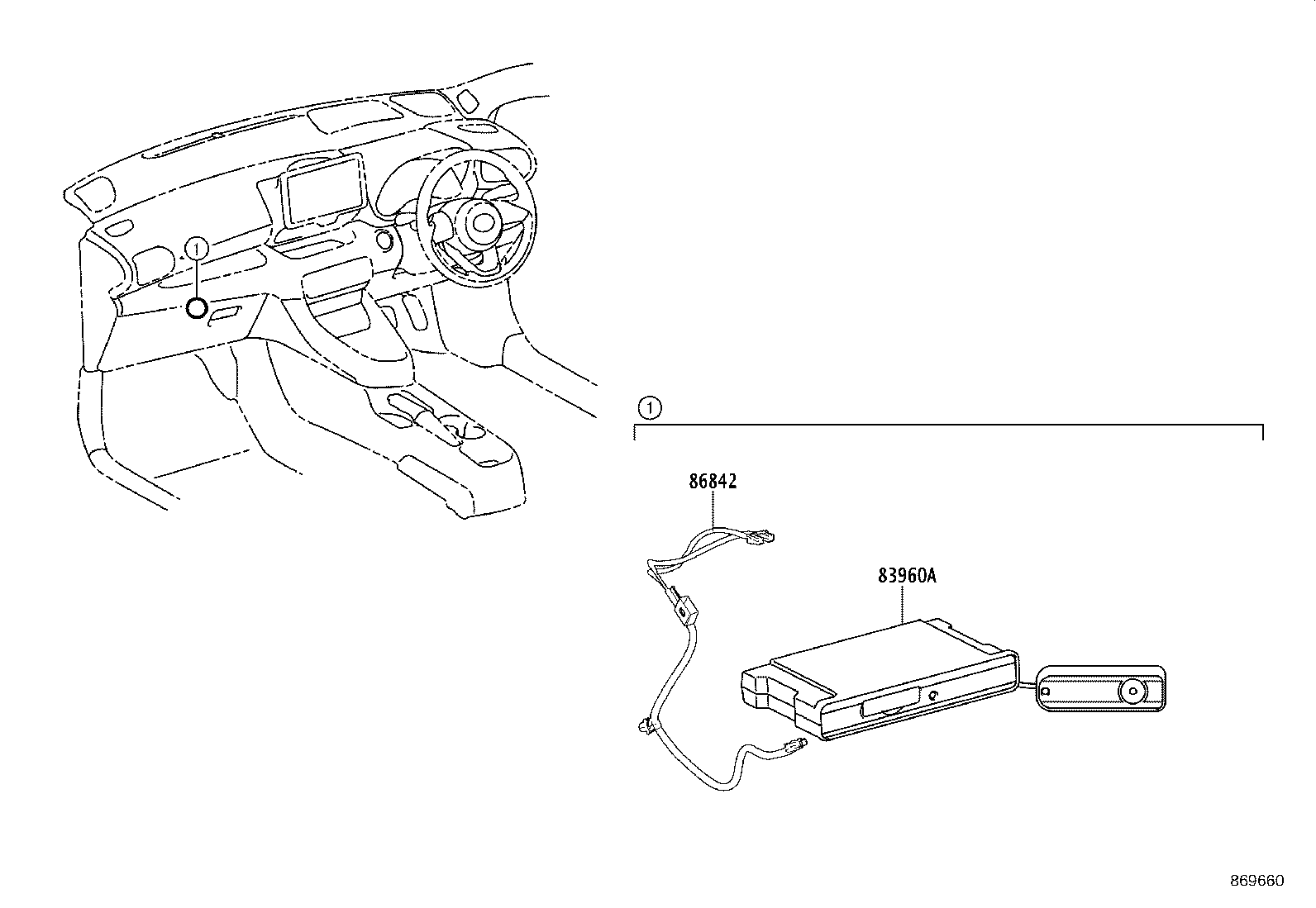

Figure 869645A 869645A 2022-12 → — Figure 869646 869646 2022-12 → — Figure 869660 869660 2022-12 → —

Part groups

PNCDescription
83960A Memorizer Assy
86140A Receiver Assy, Radio & Display
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86730A Microphone Assy, Telephone
86809 Usb Set, Usb Memory Navigation Data
86842 Wire, Navigation, NO.1
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
