Manifold Air Injection System

11 part groups · 2 illustrations

Illustrations

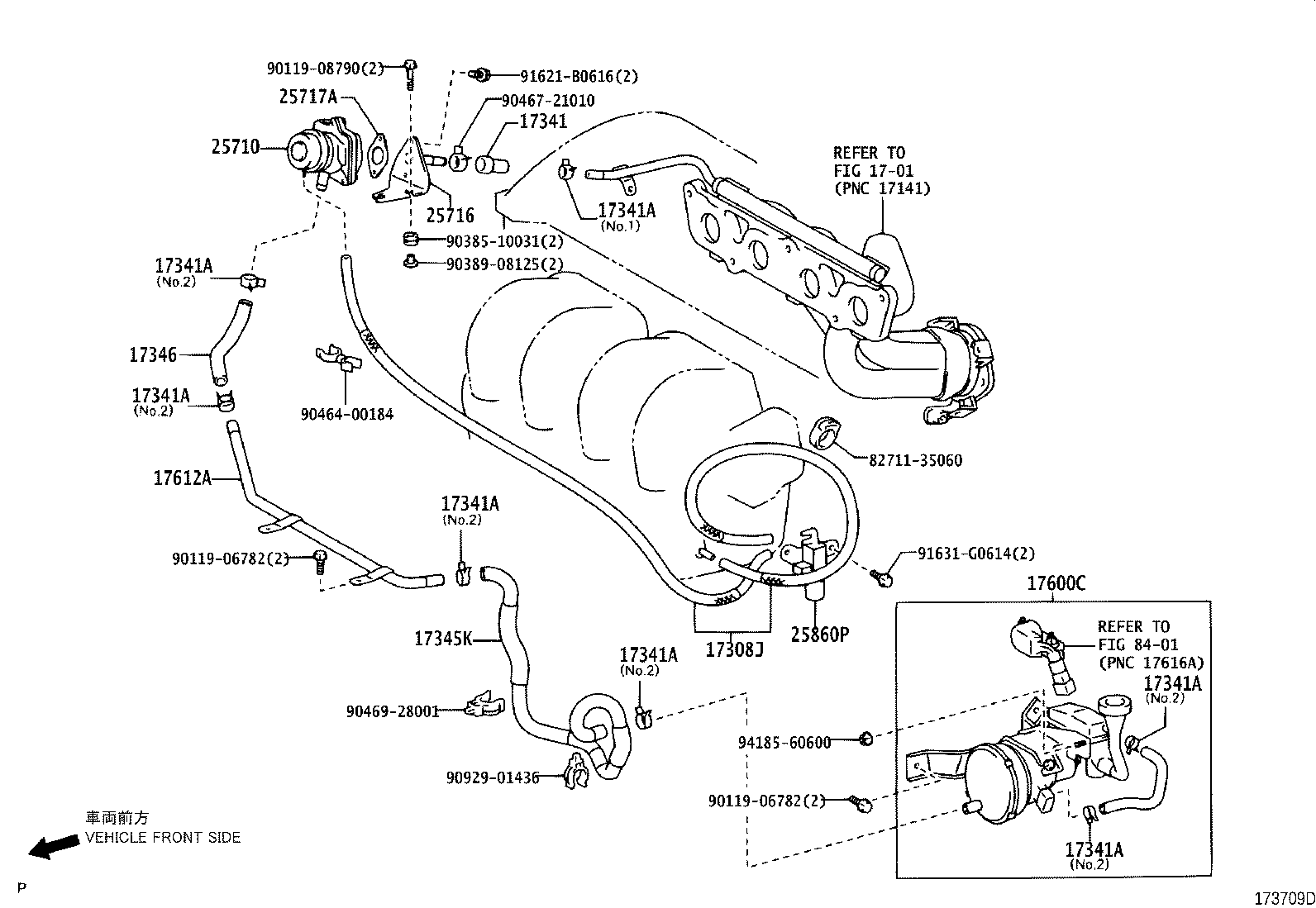

Figure 173292F 173292F 2002-05 → 2003-05 Figure 173709E 173709E 2003-05 → —

Part groups

PNCDescription
17308J Hose Sub-assy, Vacuum
17341 Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341A Clamp OR Clip, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
17345K Hose, Air, NO.5
17346 Hose, NO.6(FOR AIR INJECTION SYSTEM)
17600C Pump Assy, Air
17612A Pipe, Air Pump Outlet
25710 Valve Assy, Air Switching
25716 Bracket, Air Switching Valve
25717A Gasket, Air Switching Valve
25860P Valve Assy, Vacuum Switching
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
