Toyota Voltz

2002-05 → 2004-02 · chassis ZZE13# · catalogue 171150 · Japan

Supported model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 3 illustrations

Illustrations

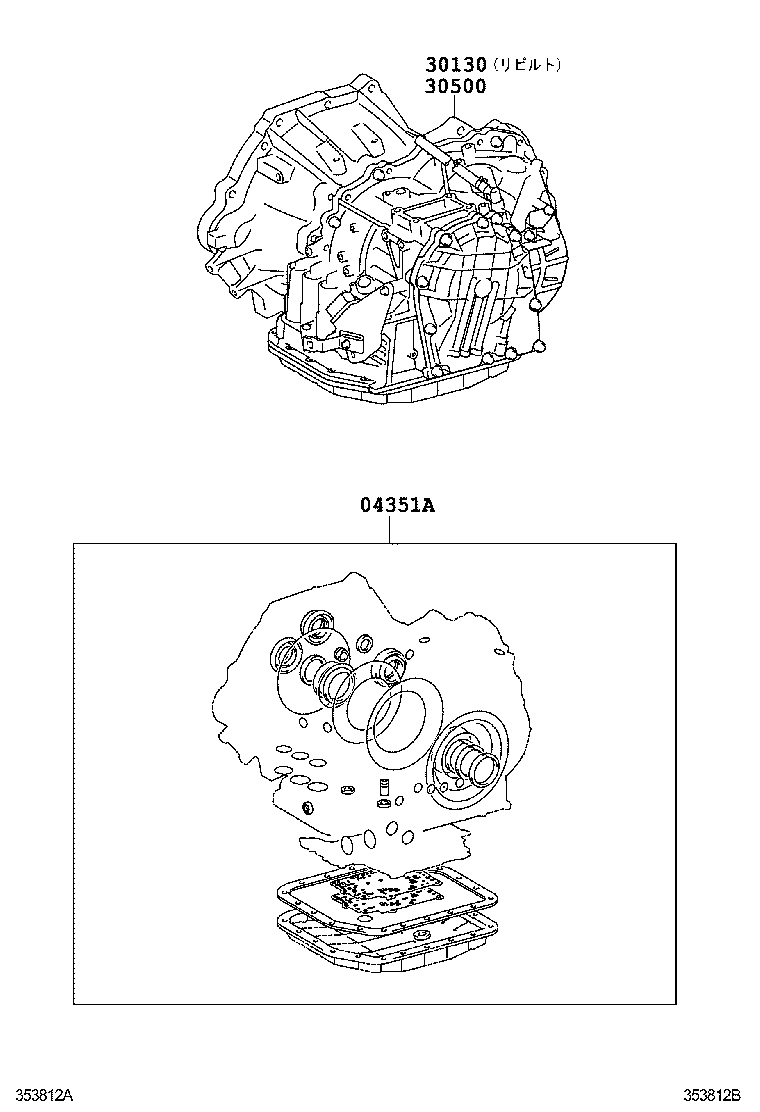

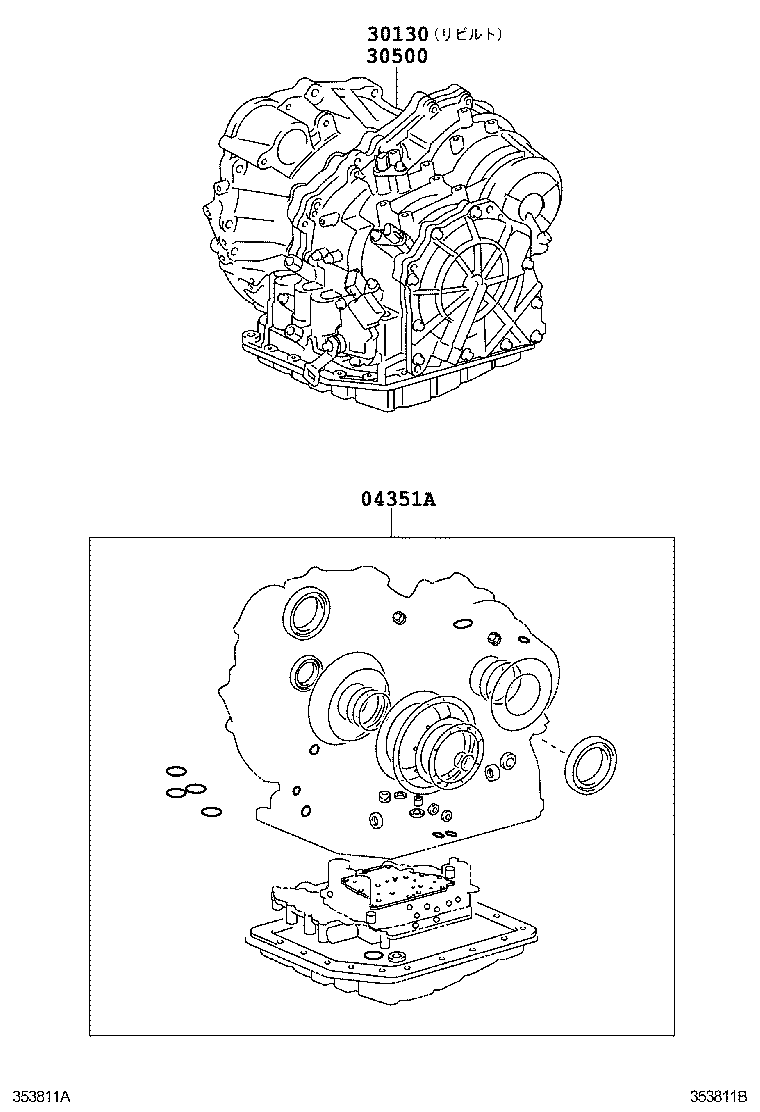

Figure 353810B 353810B 2002-05 → 2004-02 Figure 353811B 353811B 2002-05 → 2004-02 Figure 353812B 353812B 2002-05 → 2004-02

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
