Toyota Voltz

2002-05 → 2004-02 · chassis ZZE13# · catalogue 171150 · Japan

Supported model Data version 2003-08

Power Steering Tube

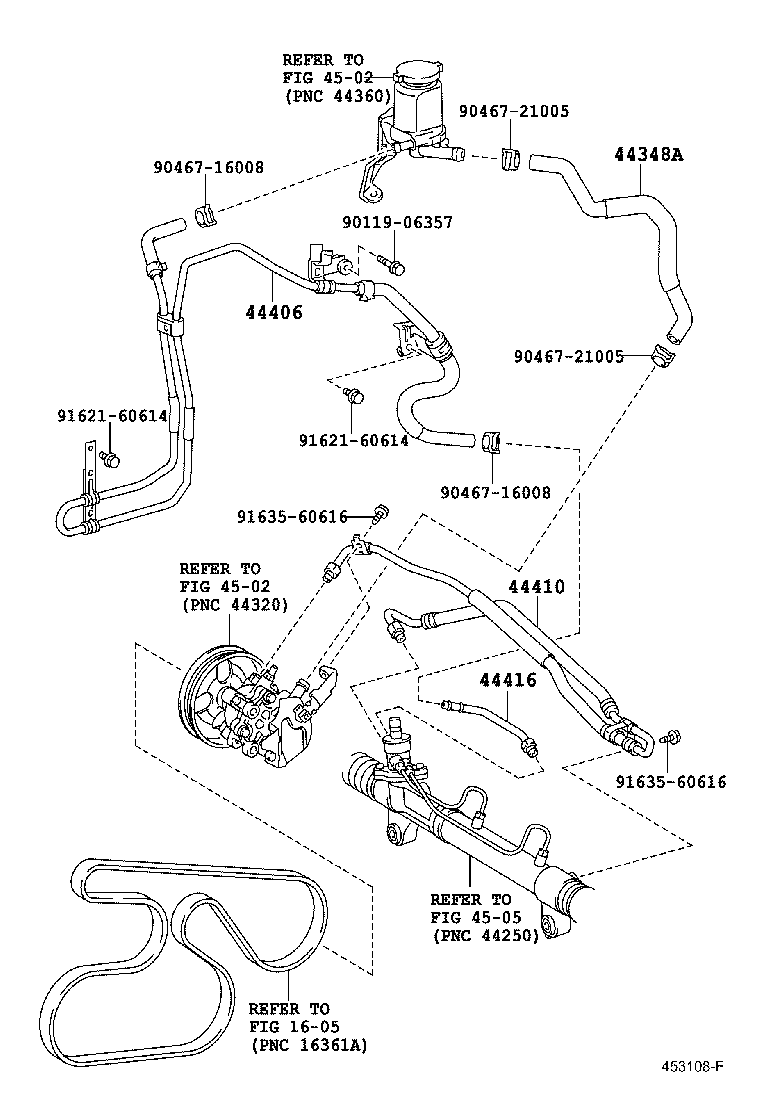

4 part groups · 2 illustrations

PNC	Description
44348A	Hose, Oil Reservoir TO Pump, NO.1
44406	Tube Sub-assy, Return
44410	Tube Assy, Pressure Feed
44416	Tube, Return(FOR STEERING GEAR OUTLET)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
