Toyota Voltz

2002-05 → 2004-02 · chassis ZZE13# · catalogue 171150 · Japan

Supported model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

20 part groups · 2 illustrations

Illustrations

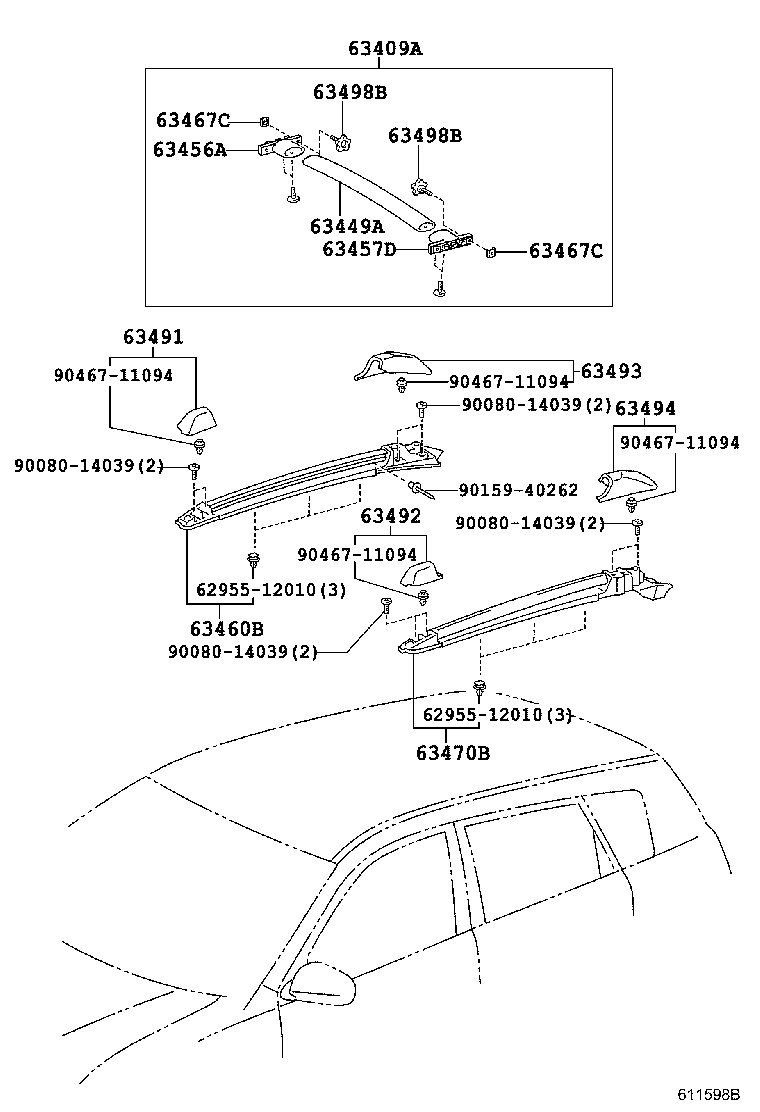

Figure 611597B 611597B 2002-05 → — Figure 611598B 611598B 2002-05 → —

Part groups

PNCDescription
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63127 Reinforcement, Roof Panel, NO.5
63132 Panel, Windshield Header, Inner
63141G Reinforcement, Roof Panel, NO.1
63143A Reinforcement, Roof Panel
63144A Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63409A Support Sub-assy, Roof Rack, Center
63449A Bar, Roof Rack, Front
63456A Joint, Roof Rack Bar
63457D Joint, Roof Rack Bar, NO.2
63460B Rack Assy, Roof, RH
63467C Plate, Roof Rack, Rear
63470B Rack Assy, Roof, LH
63491 Cover, Roof Rack Leg, Front RH
63492 Cover, Roof Rack Leg, Front LH
63493 Cover, Roof Rack Leg, Rear RH
63494 Cover, Roof Rack Leg, Rear LH
63498B Cap, Roof Carrier
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
