Toyota Voltz
2002-05 → 2004-02 · chassis ZZE13# · catalogue 171150 · Japan
Supported model
Data version 2003-08

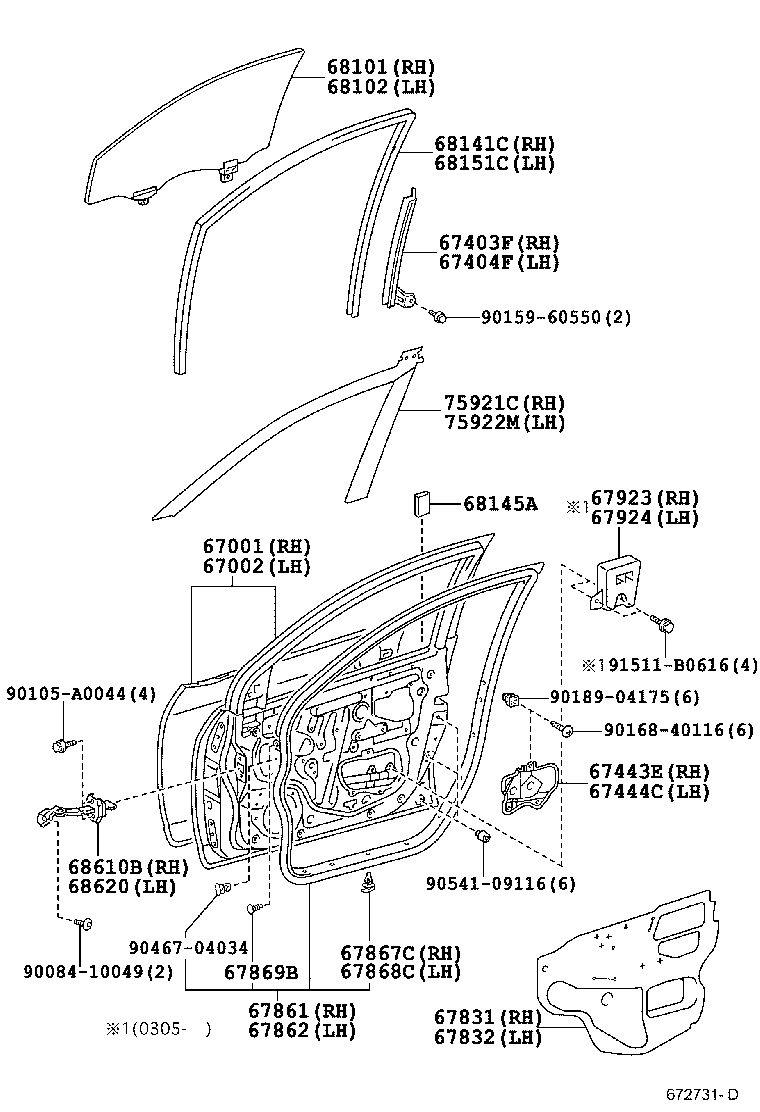

Front Door Panel & Glass
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67443E | Plate, Front Door Inside Panel, RH |
| 67444C | Plate, Front Door Inside Panel, LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67625 | Bracket, Front Door Trim, RH |
| 67626 | Bracket, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 67869B | Clip, Front Door Weatherstrip |
| 67923 | Cushion, Front Door Stiffener, NO.1 |
| 67924 | Cushion, Front Door Stiffener, NO.2 |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68145A | Cushion, Front Door Window |
| 68151C | Run, Front Door Glass, LH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 69283D | Plug, Front Door Inside Handle Bezel, RH |
| 69284F | Plug, Front Door Inside Handle Bezel, LH |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
