Toyota Voltz
2002-05 → 2004-02 · chassis ZZE13# · catalogue 171150 · Japan
Supported model
Data version 2003-08

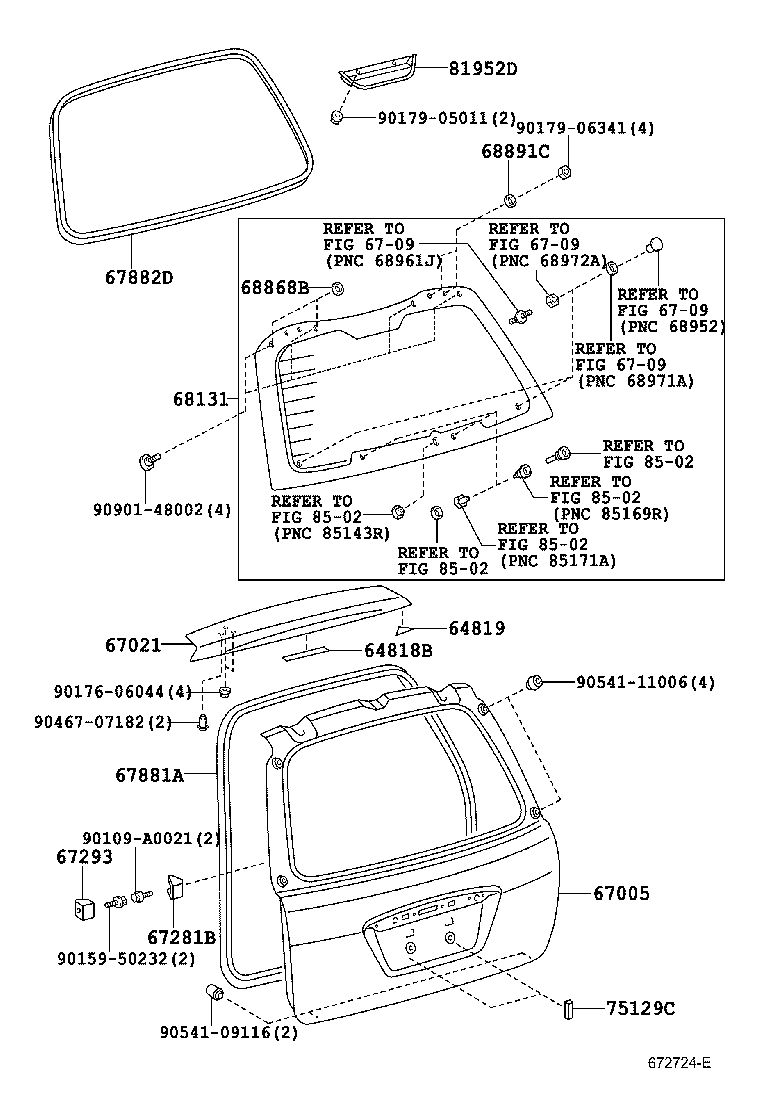

Back Door Panel & Glass
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64745M | Cover, License Plate Lamp Service |
| 64798 | Cover, Back Door Lock |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67021 | Panel Sub-assy, Back Door, Upper Outer |
| 67281B | Stopper, Back Door, Lower |
| 67293 | Cushion, Back Door Lower Stopper |
| 67750 | Board Assy, Back Door Trim |
| 67881A | Weatherstrip, Back Door |
| 67882D | Weatherstrip, Back Door, NO.2 |
| 68131 | Glass, Back Door |
| 68868B | Seal, Back Door Hinge |
| 68891C | Packing, Back Door Hinge Male |
| 74811D | Handle, Door Pull |
| 75129C | Cushion, Rear Licence Plate |
| 81952D | Cover, Rear Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
