Toyota Voltz

2002-05 → 2004-02 · chassis ZZE13# · catalogue 171150 · Japan

Supported model Data version 2003-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 2 illustrations

Illustrations

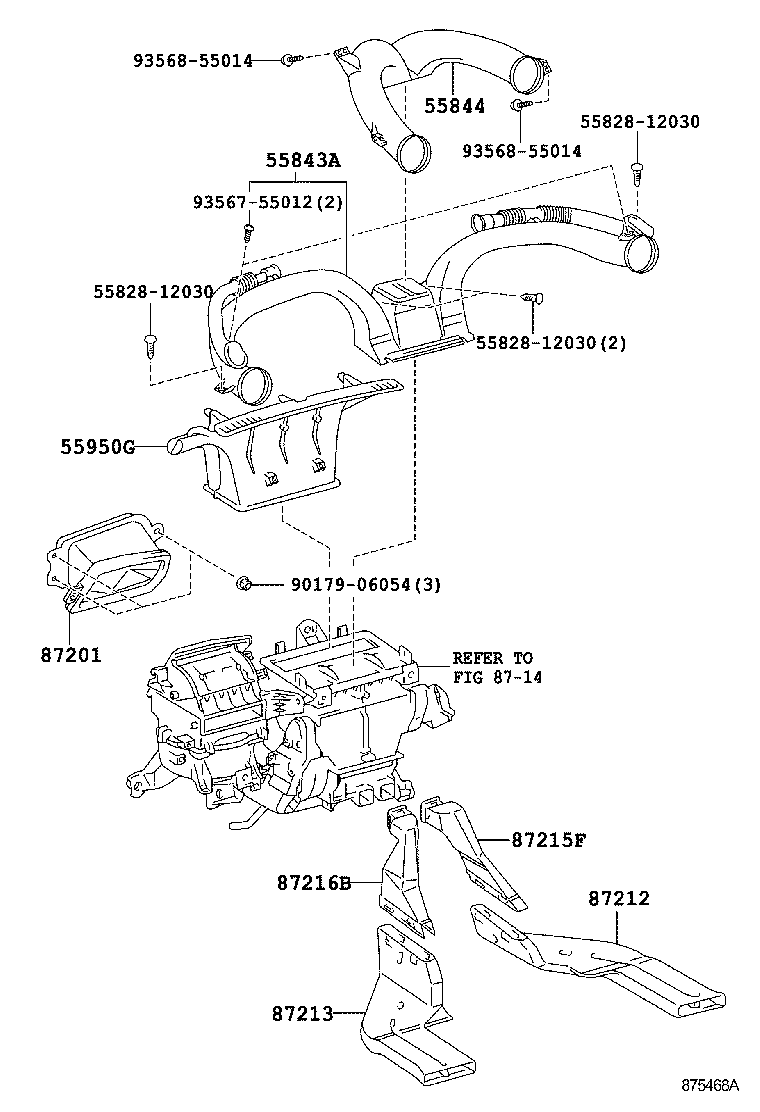

Figure 875467B 875467B 2002-05 → — Figure 875468A 875468A 2002-05 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55906A Cable Sub-assy, Defroster Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55933A Clamp, Heater Control Cable
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
