Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01

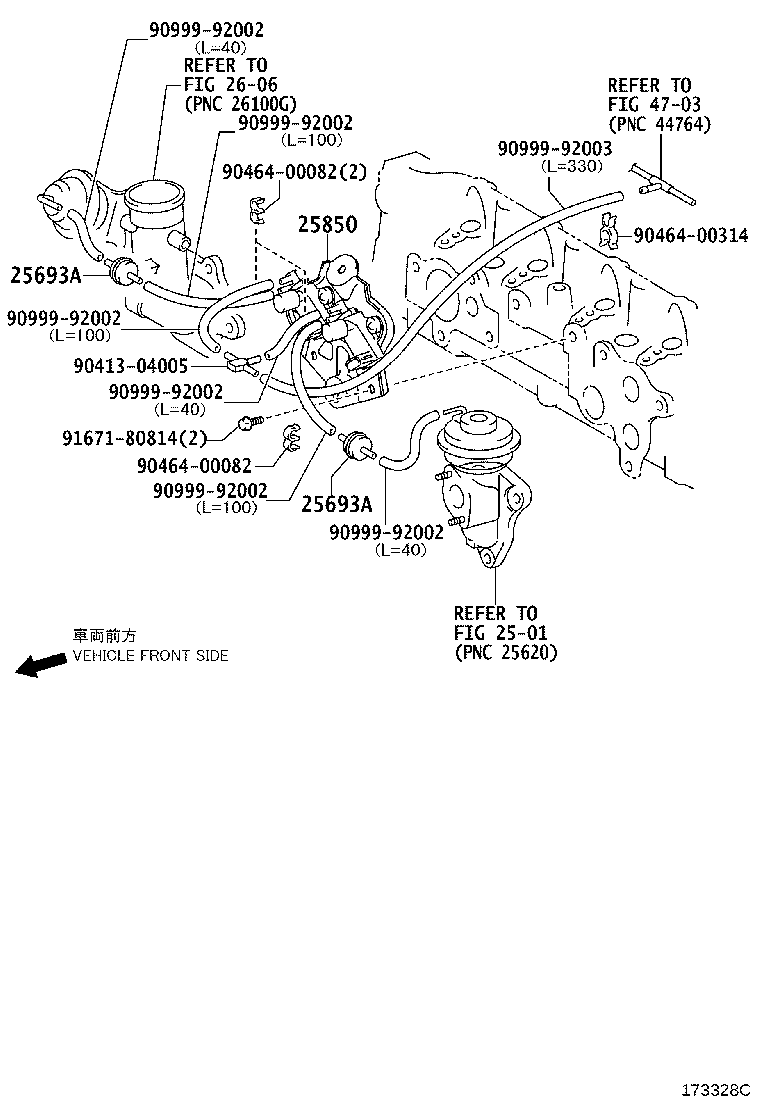

Vacuum Piping

4 part groups · 2 illustrations

PNC	Description
17650G	Valve, Duty Vacuum Switching
23826	Hose, Fuel Vapor Feed, NO.1
25693A	Damper, Egr Vacuum Modulator
25850	Valve Assy, Electric Vacuum Regulating

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
