Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

12 part groups · 2 illustrations

Illustrations

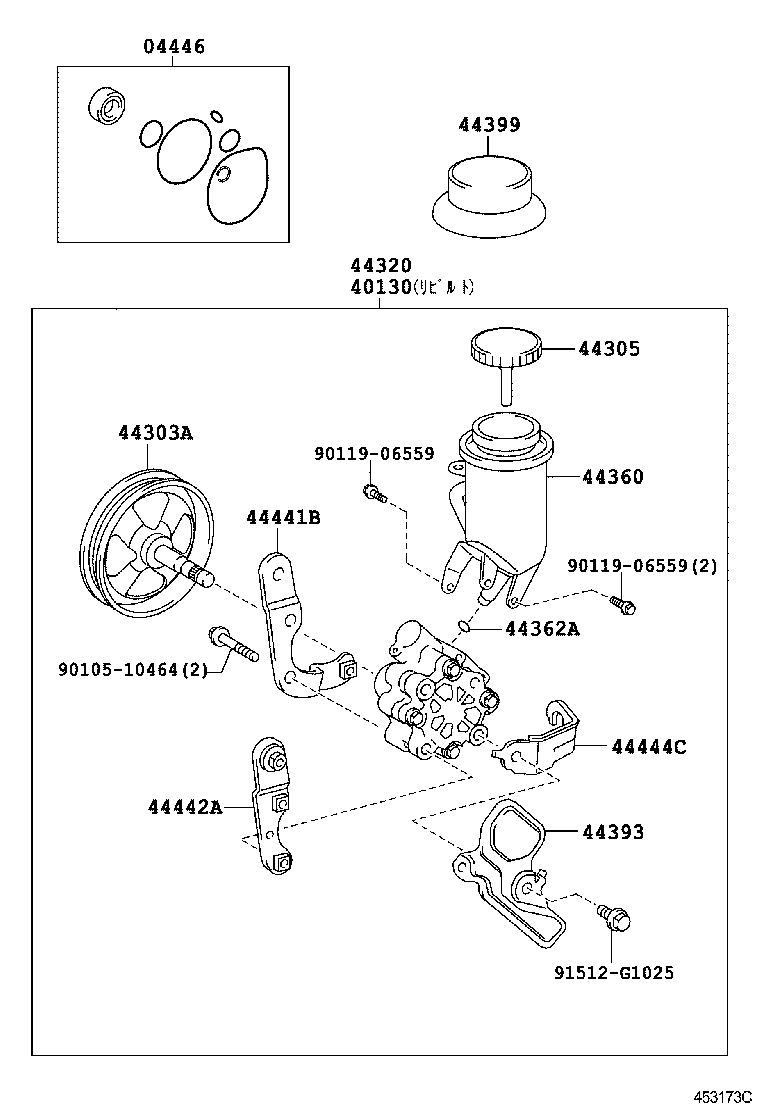

Figure 453164B 453164B 2002-06 → — Figure 453173C 453173C 2002-06 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44320 Pump Assy, Vane
44360 Reservoir Assy, Vane Pump Oil
44362A Ring, O(FOR VANE PUMP OIL RESERVOIR)
44393 Insulator, Power Steering Pump Heat
44399 Cover, Vane Pump Oil Reservoir
44441B Bracket, Pump, Front
44442A Bracket, Vane Pump, Rear
44444C Stay, Vane Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
