Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 3 illustrations

Illustrations

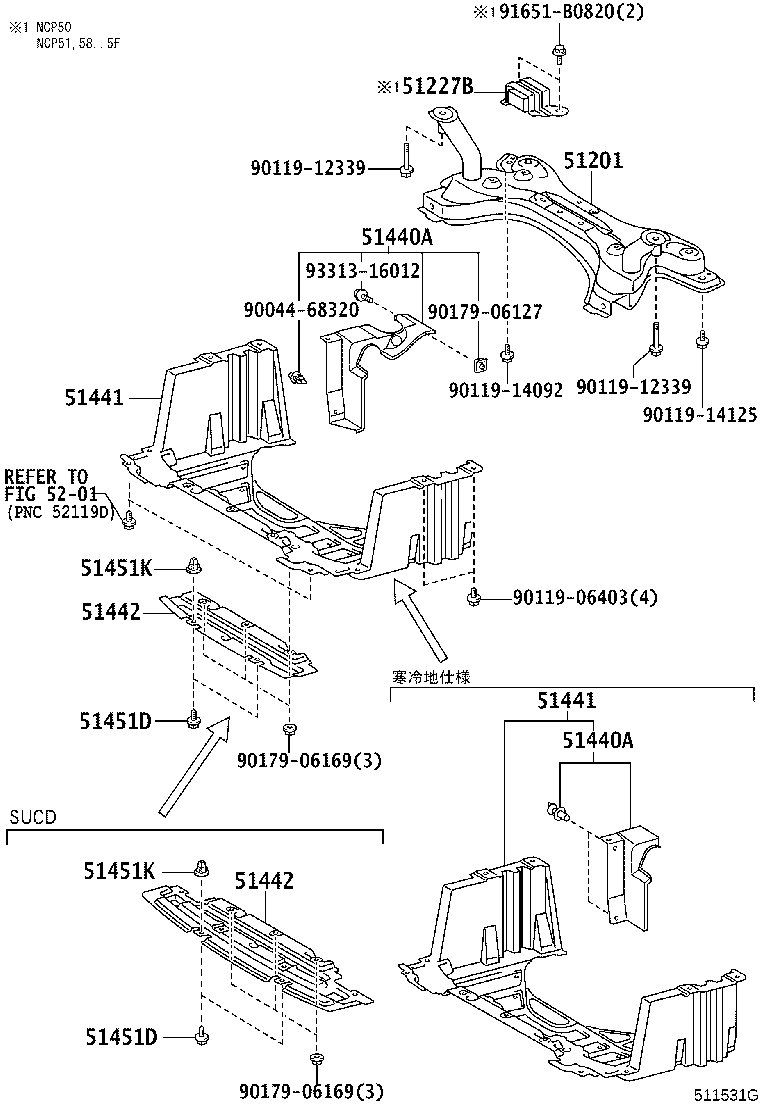

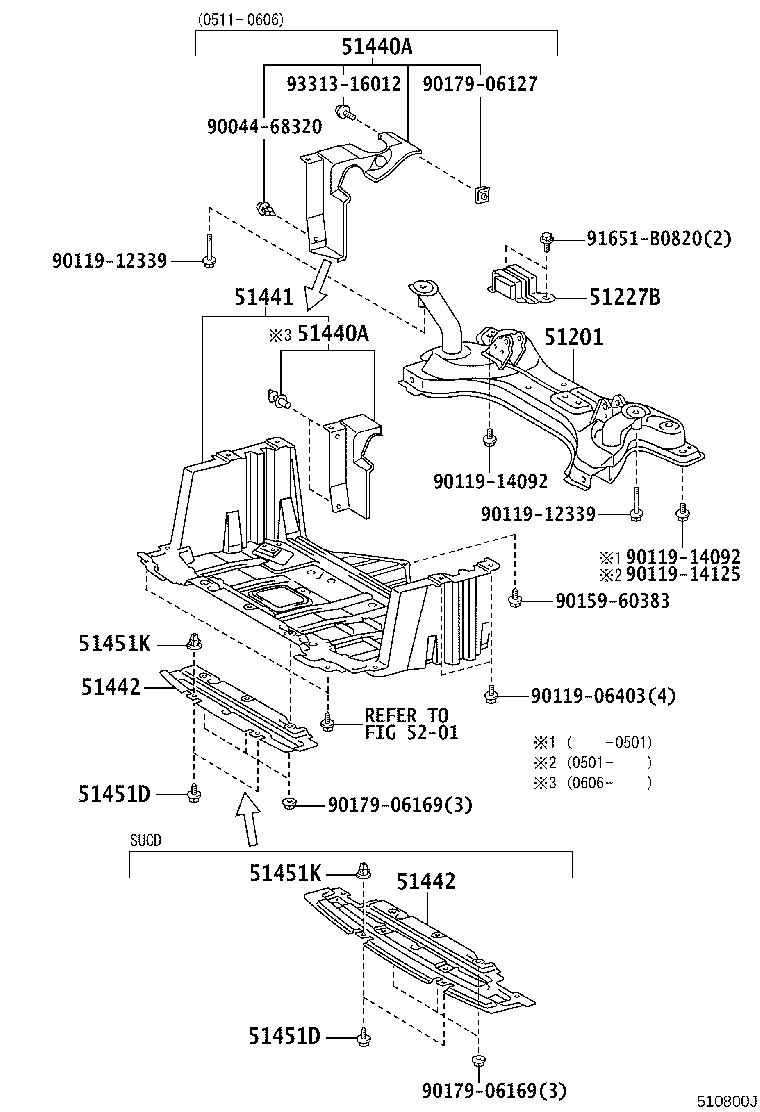

Figure 510799H 510799H 2002-06 → 2006-06 Figure 511531G 511531G 2006-06 → — Figure 510800J 510800J 2002-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51227B Damper, Front Suspension Member Dynamic
51440A Cover Assy, Engine Under
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51451D Screw, NO.1
51451K Grommet, Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
