Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

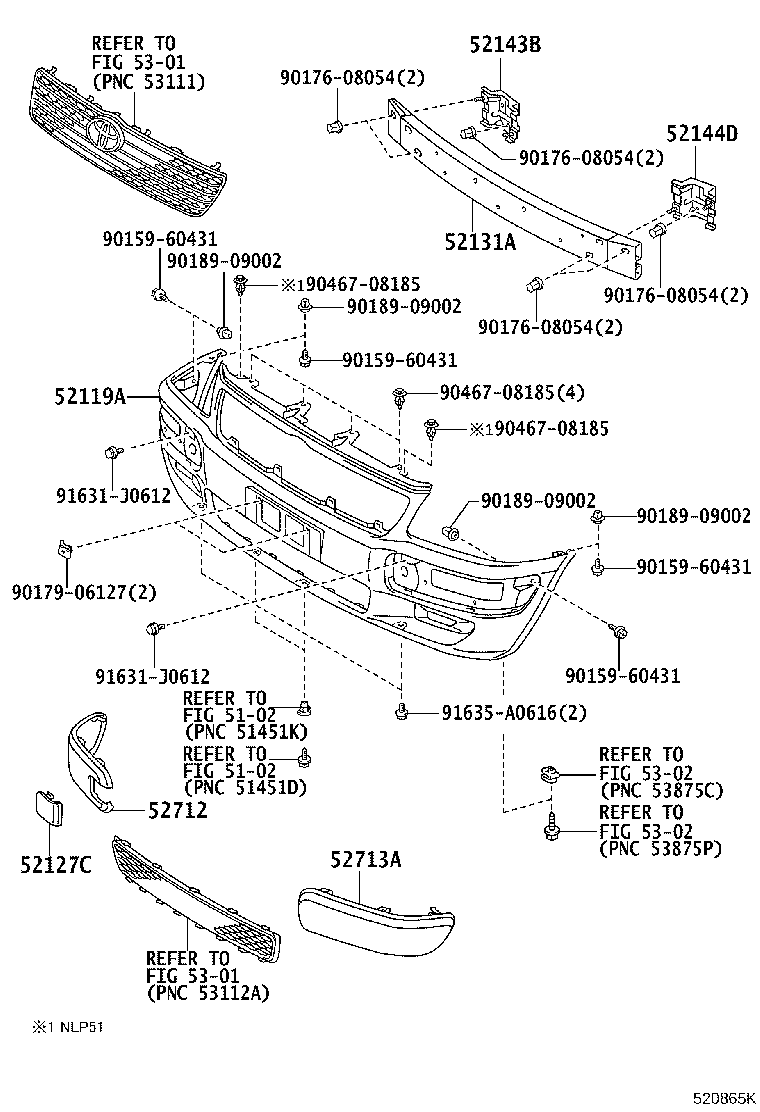

Figure 520864O 520864O 2002-06 → — Figure 520865K 520865K 2002-06 → —

Part groups

PNCDescription
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127C Cover, Front Bumper Hole
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52143B Bracket, Front Bumper Side
52144D Bracket, Front Bumper Side, LH
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53145D Clip, Radiator Grille
76851G Grommet, Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
