Toyota Probox/Succeed
2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan
Supported model
Data version 2015-01

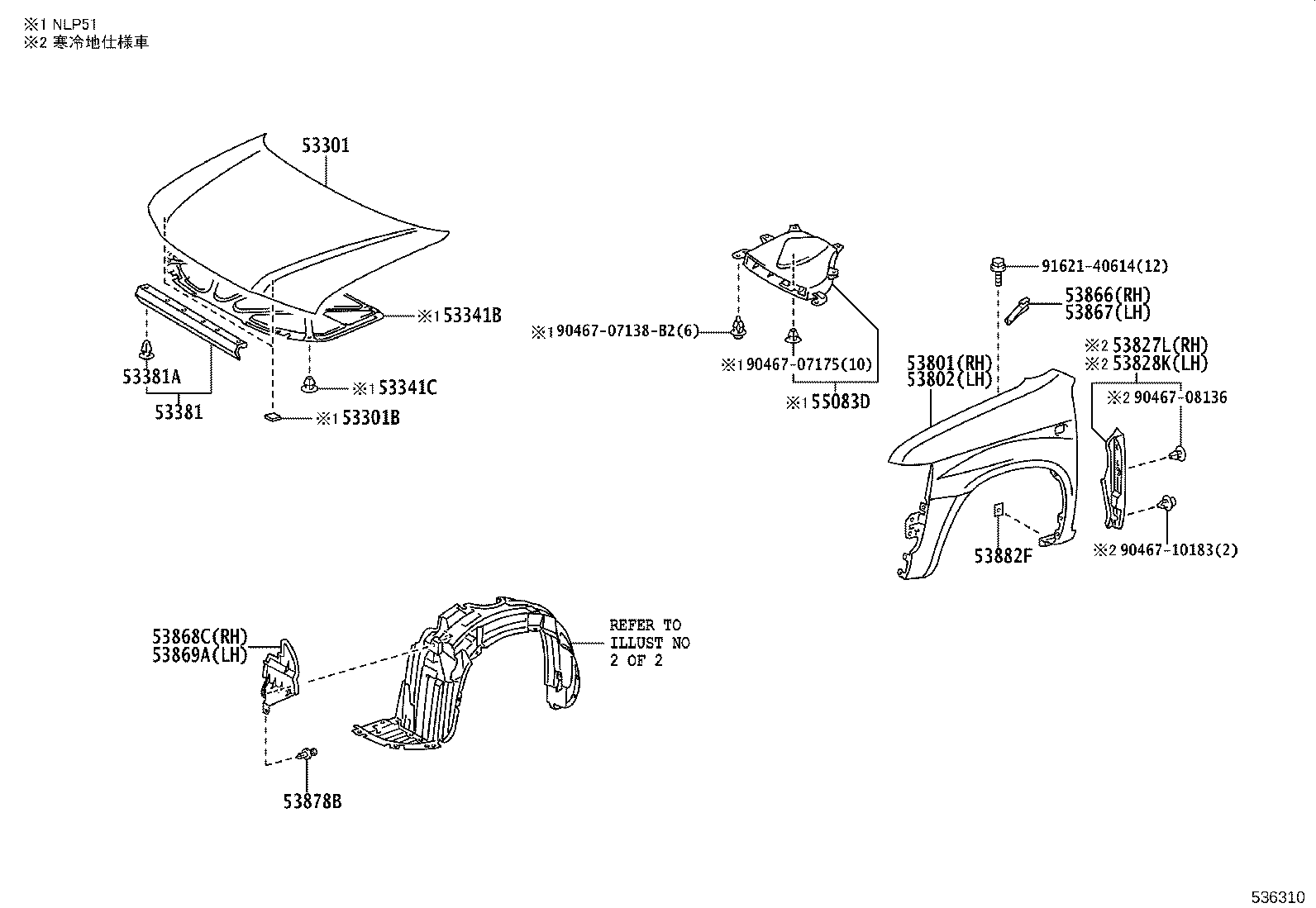

Hood & Front Fender
28 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53149E | Protector, Radiator Grille |
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53827L | Protector, Front Fender Side Panel, RH |
| 53828K | Protector, Front Fender Side Panel, LH |
| 53851 | Brace, Front Fender TO Radiator Support, RH |
| 53852 | Brace, Front Fender TO Radiator Support, LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |
| 53868C | Seal, Front Fender TO Cowl Side, NO.2 RH |
| 53869A | Seal, Front Fender TO Cowl Side, NO.2 LH |

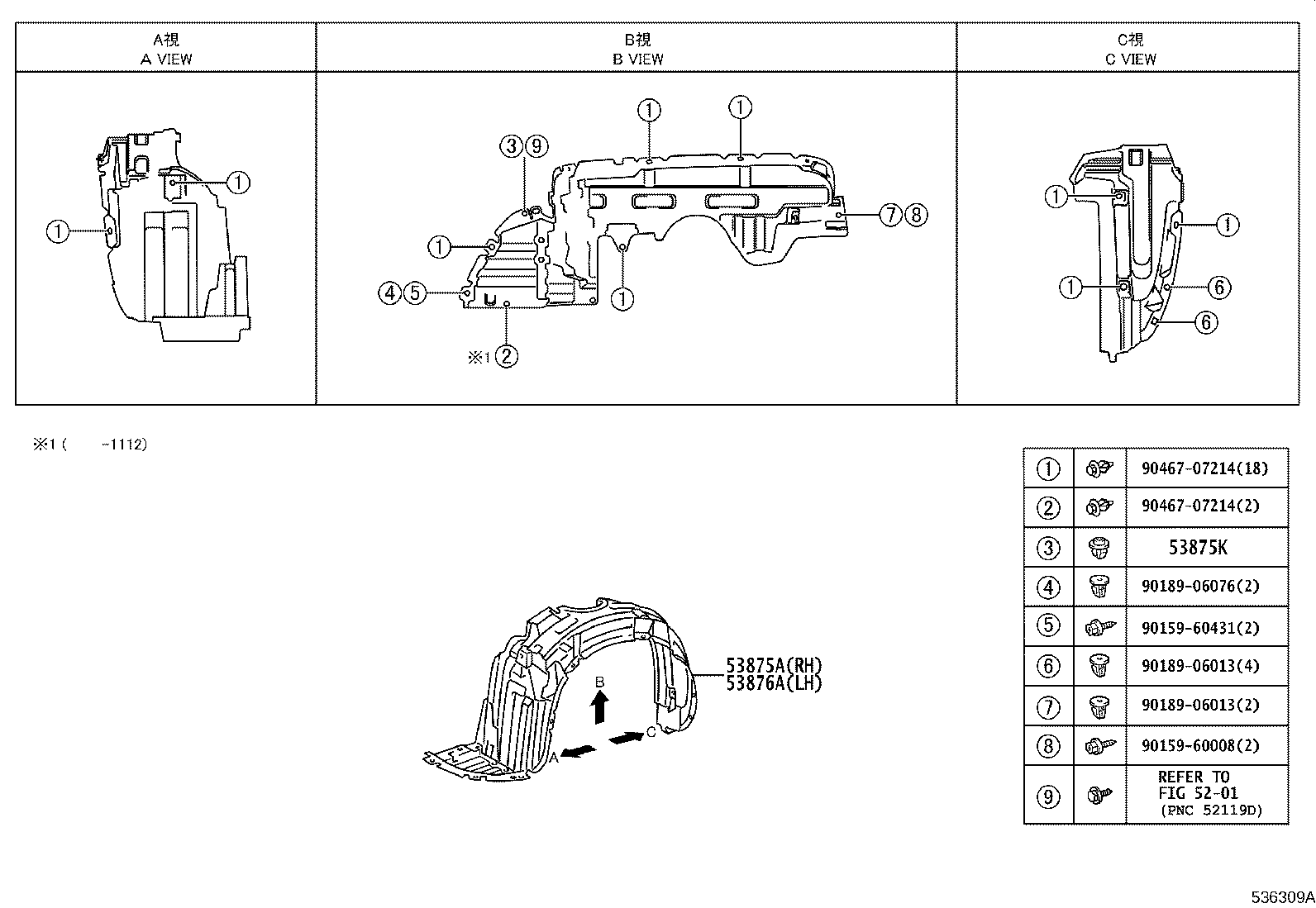

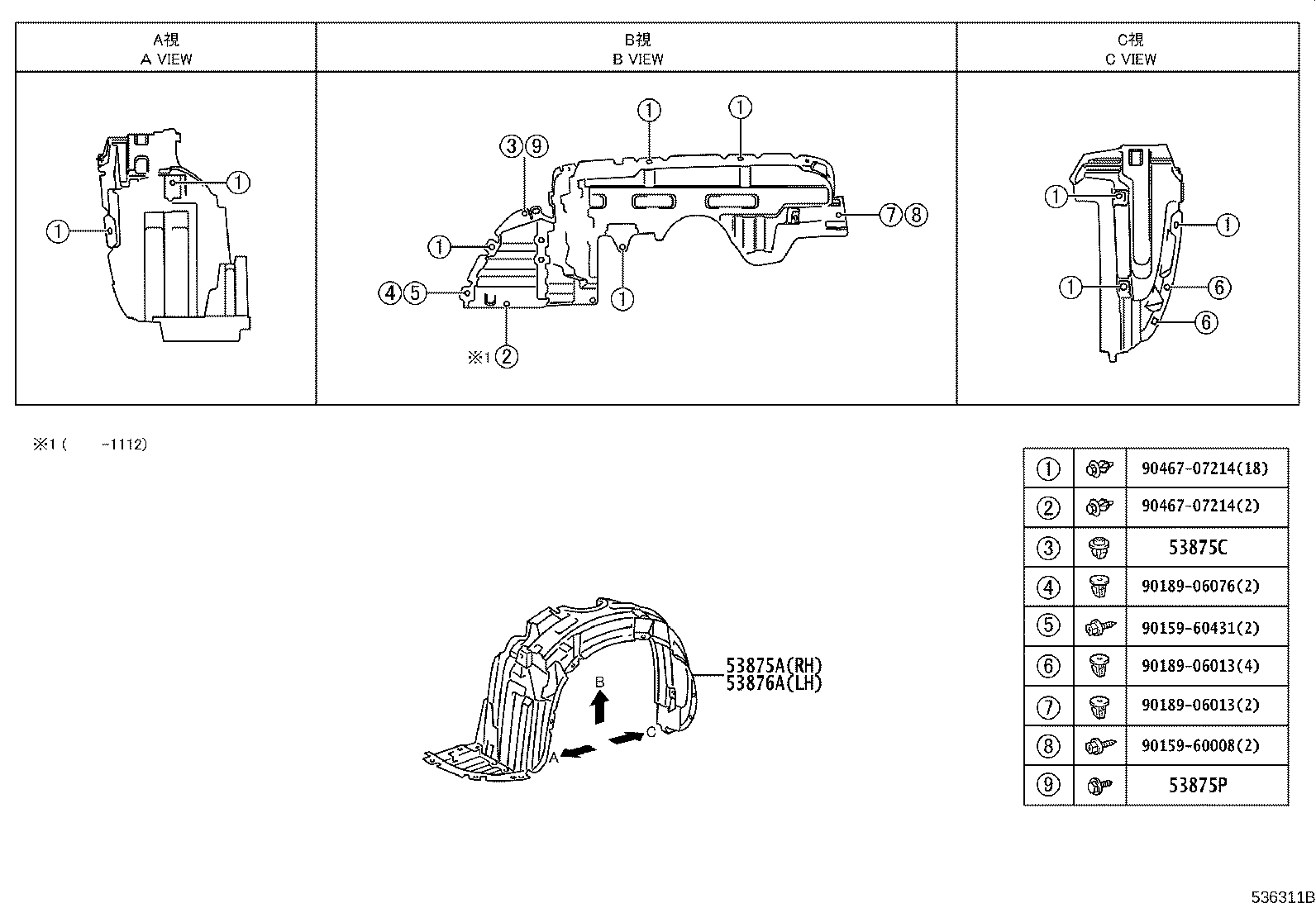

| 53875A | Liner, Front Fender, RH |
| 53875C | Clip, Front Fender Liner |
| 53875K | Grommet, Screw |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53876A | Liner, Front Fender, LH |
| 53878B | Protector, Front Fender Liner |
| 53882F | Seal, Front Fender |
| 53903B | Panel Sub-assy, Front End |
| 53903E | Clip, Front End Panel |
| 55083D | Duct Sub-assy, Front Ventilator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
