Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

28 part groups · 3 illustrations

Illustrations

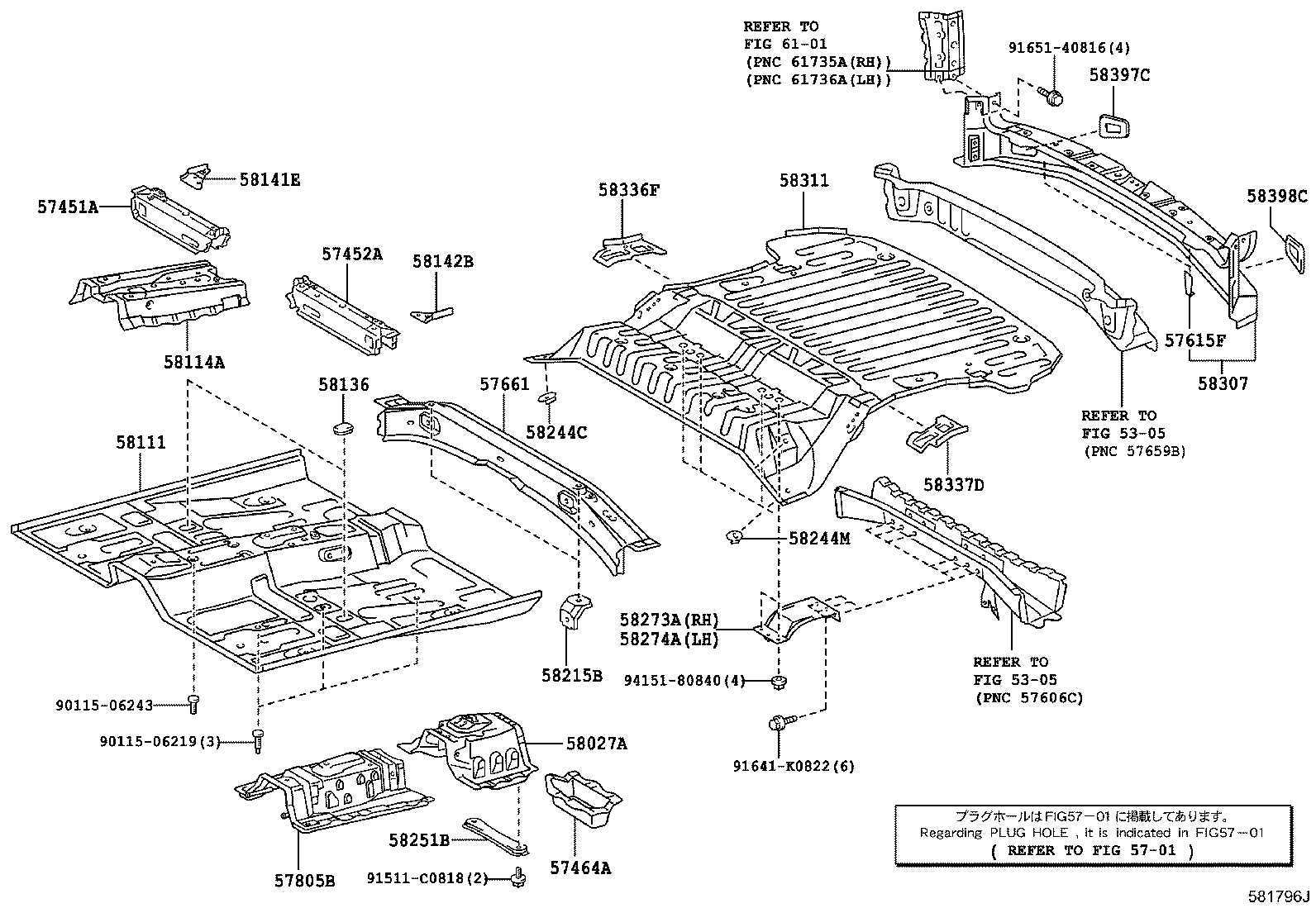

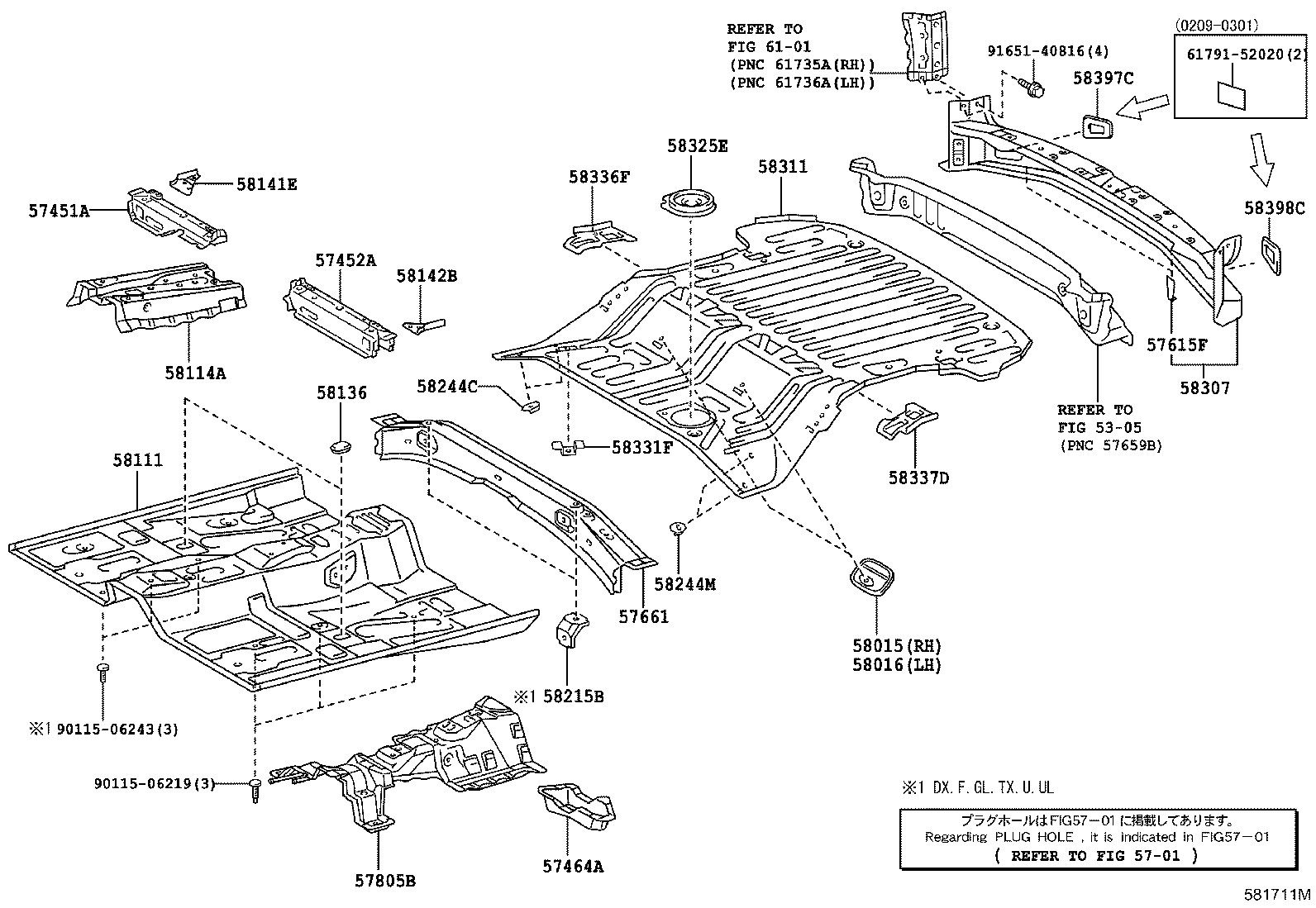

Figure 581606N 581606N 2002-06 → — Figure 581711M 581711M 2002-06 → — Figure 581796J 581796J 2003-04 → —

Part groups

PNCDescription
57451A Member, Front Floor Cross, RH
57452A Member, Front Floor Cross, NO.2
57464A Reinforcement, Center Floor Crossmember, LH
57615F Bracket, Rear Bumper Mounting
57661 Panel, Rear Floor Side, Front RH
57805B Reinforcement Sub-assy, Belt Anchor, RH
58015 Reinforcement, Belt Anchor TO Floor Pan, RH
58016 Reinforcement, Belt Anchor TO Floor Pan, LH
58027A Reinforce Sub-assy, Seat Belt Anchor
58111 Pan, Front Floor
58114A Reinforcement, Front Floor Panel
58136 Cover, Front Floor Hole
58141E Reinforcement, Front Side Member TO Floor Pan, RH
58142B Reinforcemnet, Front Side Member TO Floor Pan, LH
58215B Bracket, Rear Seat Mounting, RH
58244C Bracket, Rear Seat Cushion Mounting, RH
58244M Bracket, Rear Seat Cushion Mounting, LH
58251B Brace, Floor Panel, Front
58273A Reinforcement, Belt Anchor TO Center Floor, RH
58274A Reinforcement, Belt Anchor TO Center Floor, LH
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58325E Cover, Rear Floor Service Hole
58331F Bracket, Rear Floor Heat Insulator, NO.3
58336F Reinforcement, Rear Floor Pan, RH
58337D Reinforcement, Rear Floor Pan, LH
58397C Cover, Body Lower Back, RH
58398C Cover, Body Lower Back, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
