Toyota Probox/Succeed
2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan
Supported model
Data version 2015-01

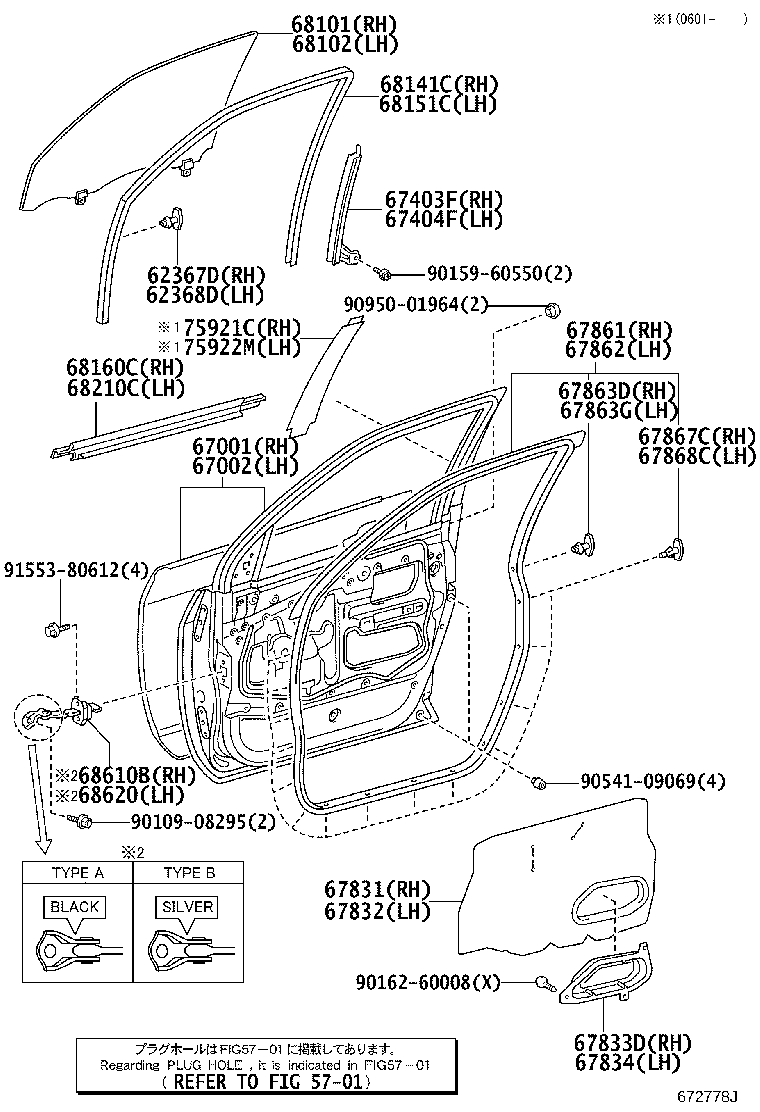

Front Door Panel & Glass
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62367D | Clip, Door Window Glass, RH |
| 62368D | Clip, Door Window Glass, LH |
| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67403F | Frame Sub-assy, Front Door, Rear Lower RH |
| 67404F | Frame Sub-assy, Front Door, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67833D | Cover, Front Door Service Hole, NO.2 RH |
| 67834 | Cover, Front Door Service Hole, NO.2 LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67863D | Retainer, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) |
| 67863G | Retainer, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141C | Run, Front Door Glass, RH |
| 68151C | Run, Front Door Glass, LH |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68171B | Weatherstrip, Front Door Glass, Inner RH |
| 68172A | Weatherstrip, Front Door Glass, Inner LH |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610B | Check Assy, Front Door, RH |
| 68620 | Check Assy, Front Door, LH |
| 75921C | Tape, Black Out, NO.1 RH |
| 75922M | Tape, Black Out, NO.1 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
