Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

13 part groups · 3 illustrations

Illustrations

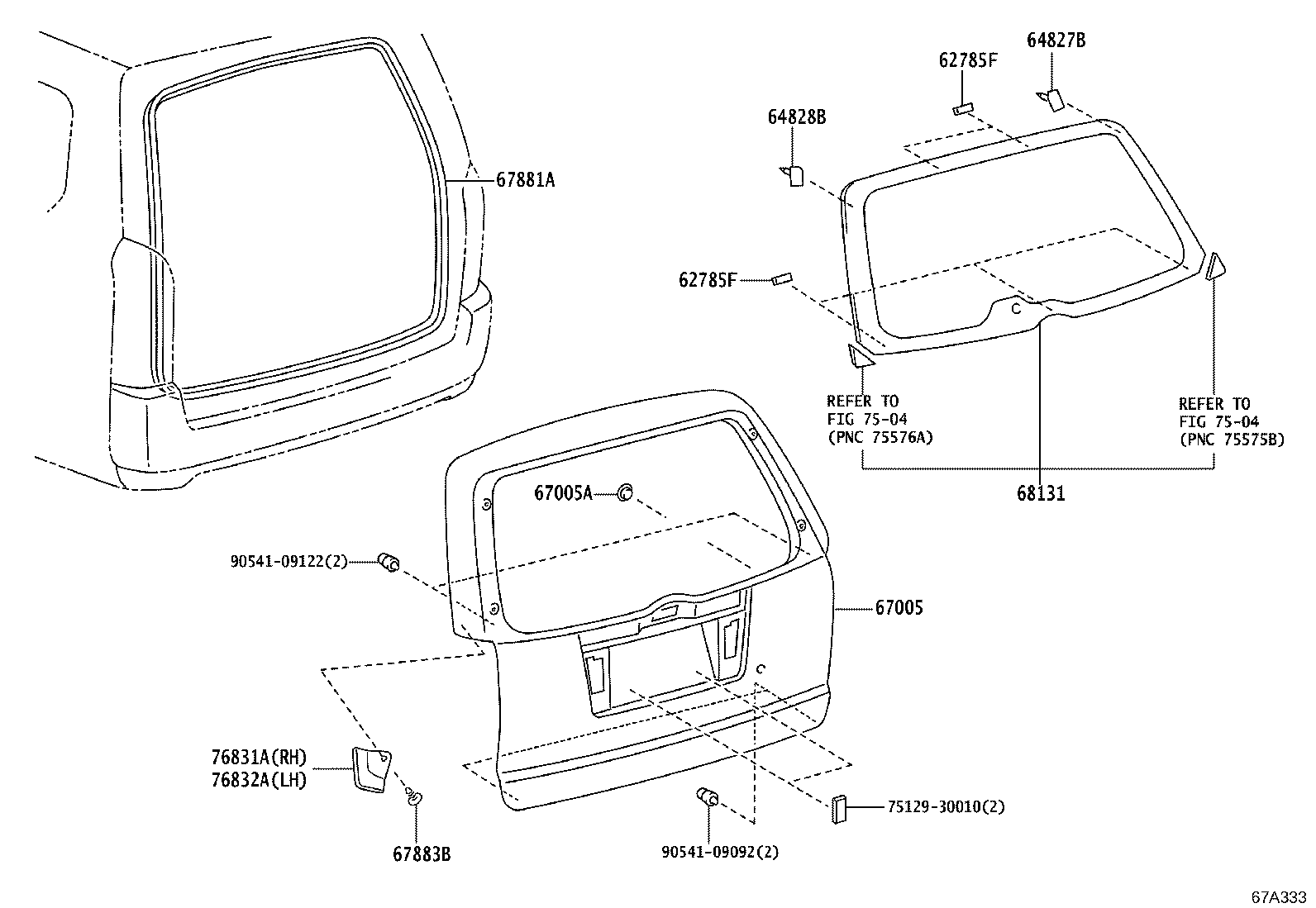

Figure 67A329 67A329 2002-06 → — Figure 67A333 67A333 2002-06 → — Figure 672776A 672776A 2002-06 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67005A Plug, Hole(FOR BACK DOOR PANEL)
67750A Clip(FOR BACK DOOR TRIM)
67751 Board, Back Door Trim
67881A Weatherstrip, Back Door
67883B Clip, Back Door Weatherstrip
68131 Glass, Back Door
74811D Handle, Door Pull
76831A Cover, Back Door Finish Panel, RH
76832A Cover, Back Door Finish Panel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
