Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

19 part groups · 2 illustrations

Illustrations

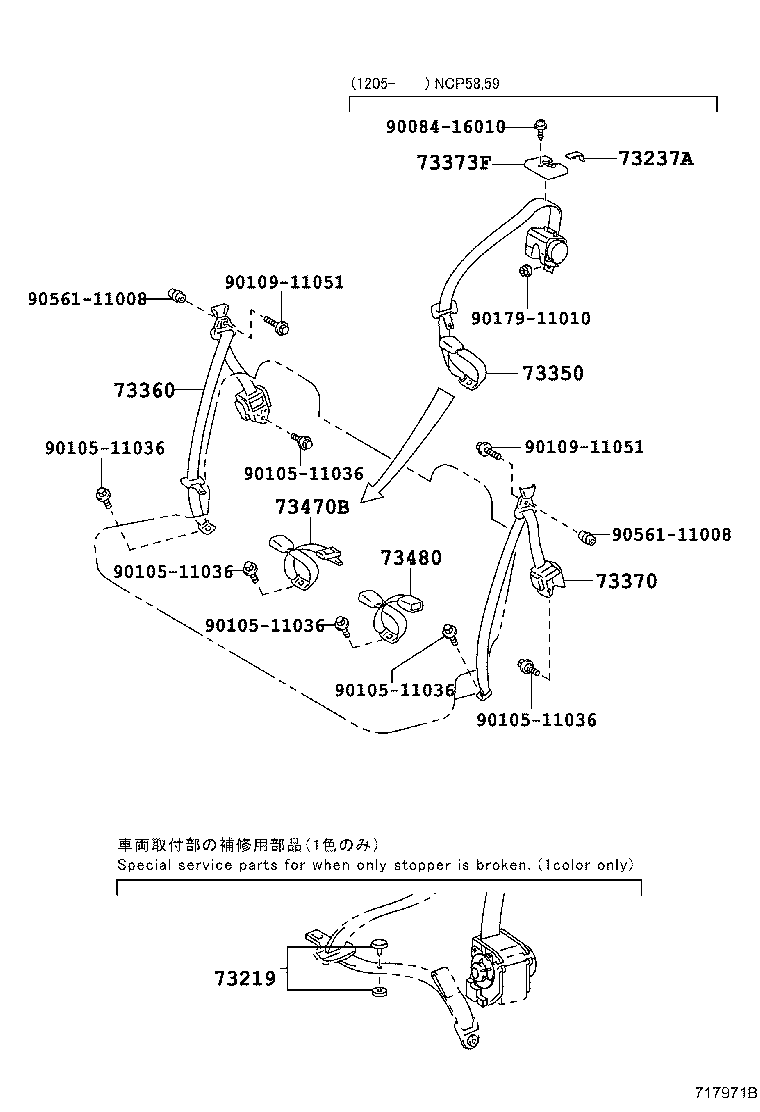

Figure 712390I 712390I 2002-06 → — Figure 717971B 717971B 2002-06 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73198A Cover, Front Seat Belt Inner Anchor, RH
73199 Cover, Front Seat Belt Inner Anchor, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73373F Cover, Rear Seat Shoulder Belt Hole
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
