Toyota Probox/Succeed
2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan
Supported model
Data version 2015-01

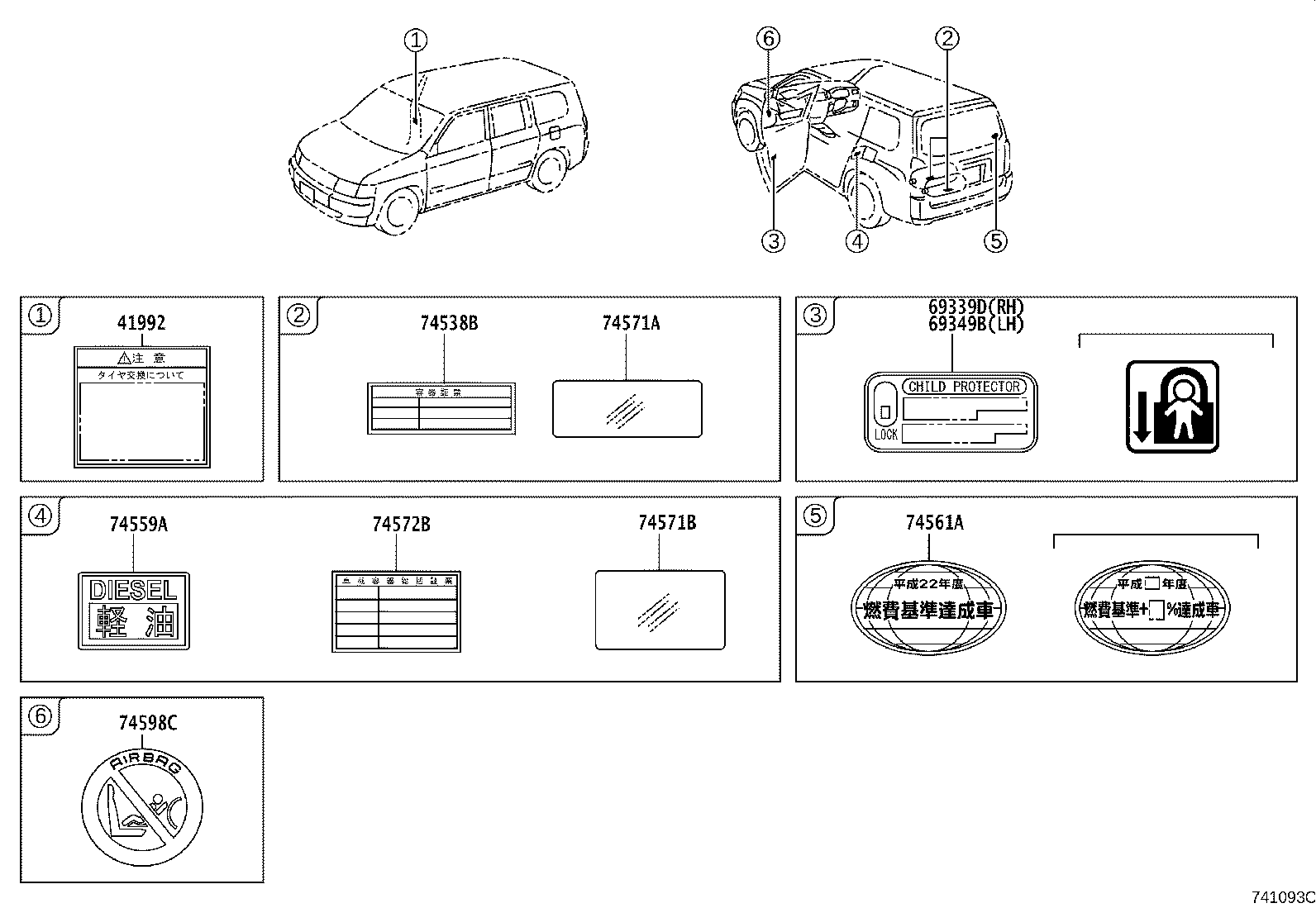

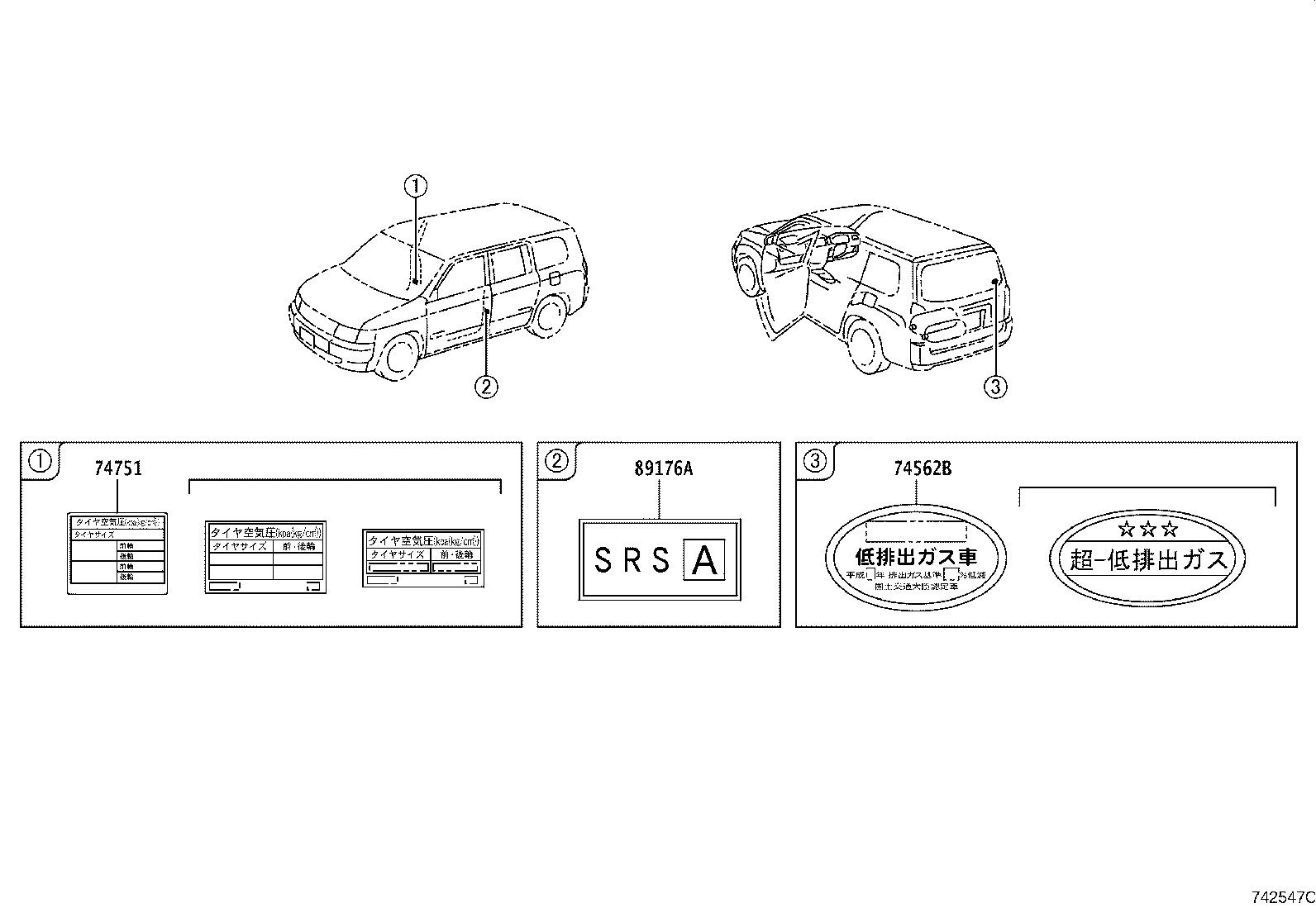

Caution Plate (EXTERIOR & INTERIOR)
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11296C | Label, Engine Service Information |
| 16793E | Label, Cooling Fan Caution |
| 41992 | Label, Differential Notice |
| 69339D | Label, Child Protector Information, RH |
| 69349B | Label, Child Protector Information, LH |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74538B | Label, Fuel Tank System Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74571A | Film, Label Cover |
| 74571B | Film, Label Cover |
| 74571D | Film, Label Cover |
| 74572B | Label, Fuel Inlet Operational Information |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 75341C | Plate, Hood Name |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
