Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

6 part groups · 3 illustrations

Illustrations

Figure 812197C

812197C 2002-06 → 2005-08

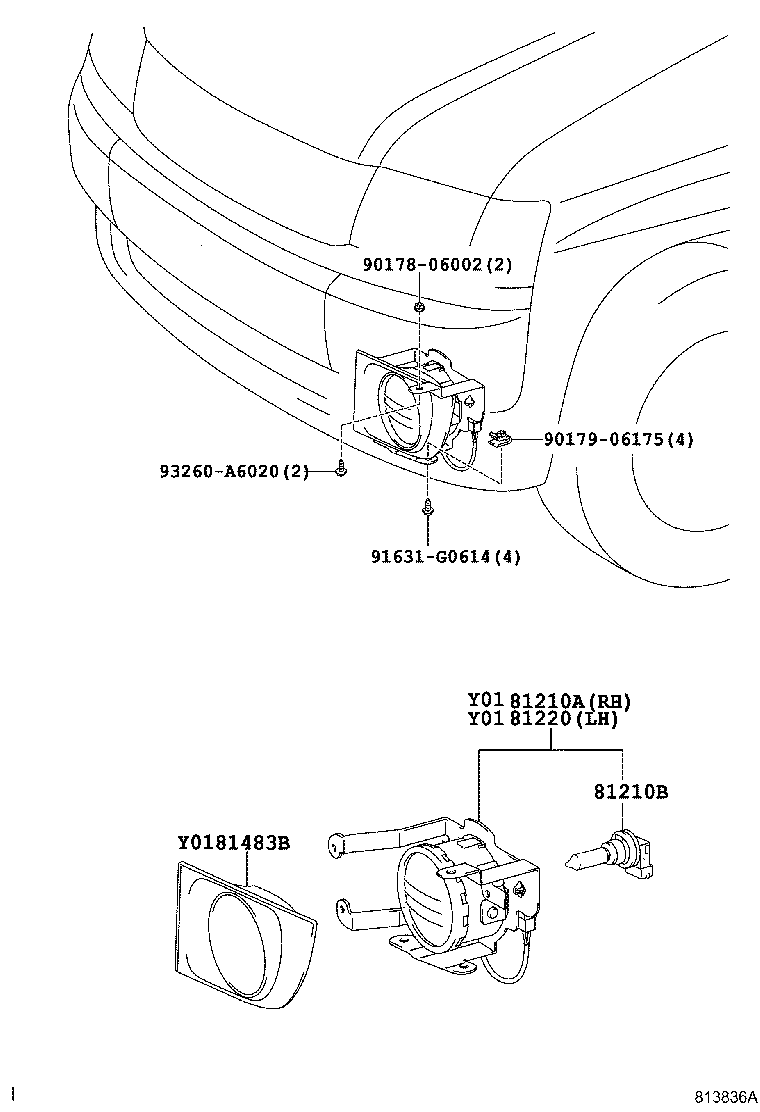

Figure 813836A

813836A 2005-08 → —

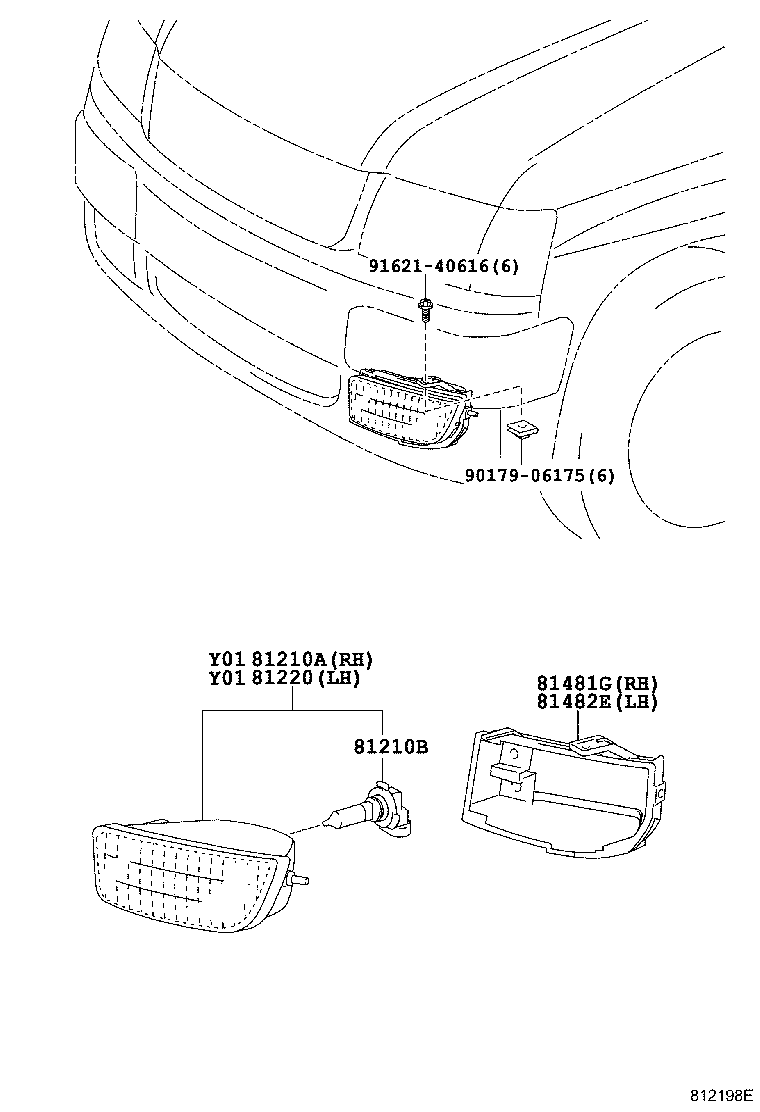

Figure 812198E

812198E 2002-06 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81220	Lamp Assy, Fog, LH
81481G	Bracket, Fog Lamp, RH
81482E	Bracket, Fog Lamp, LH
81483B	Protector, Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
