Toyota Probox/Succeed

2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 8 illustrations

Illustrations

Figure 823093E 823093E 2002-06 → — Figure 823094C 823094C 2002-06 → — Figure 823095C 823095C 2002-06 → — Figure 823096E 823096E 2002-06 → — Figure 823097E 823097E 2002-06 → — Figure 823098C 823098C 2002-06 → — Figure 823081J 823081J 2002-06 → — Figure 823107C 823107C 2002-06 → —

Part groups

PNCDescription

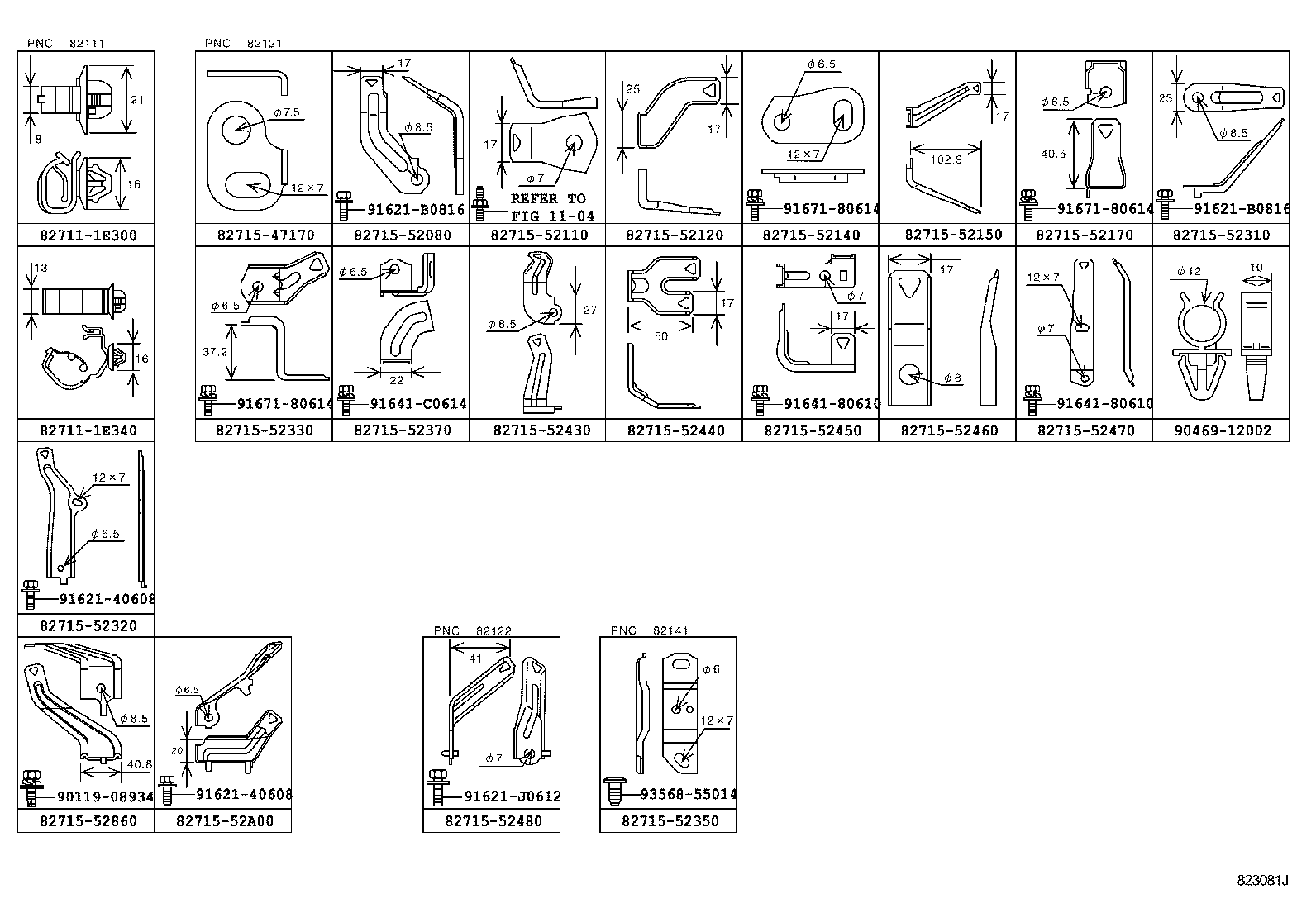

82111 Wire, Engine Room Main

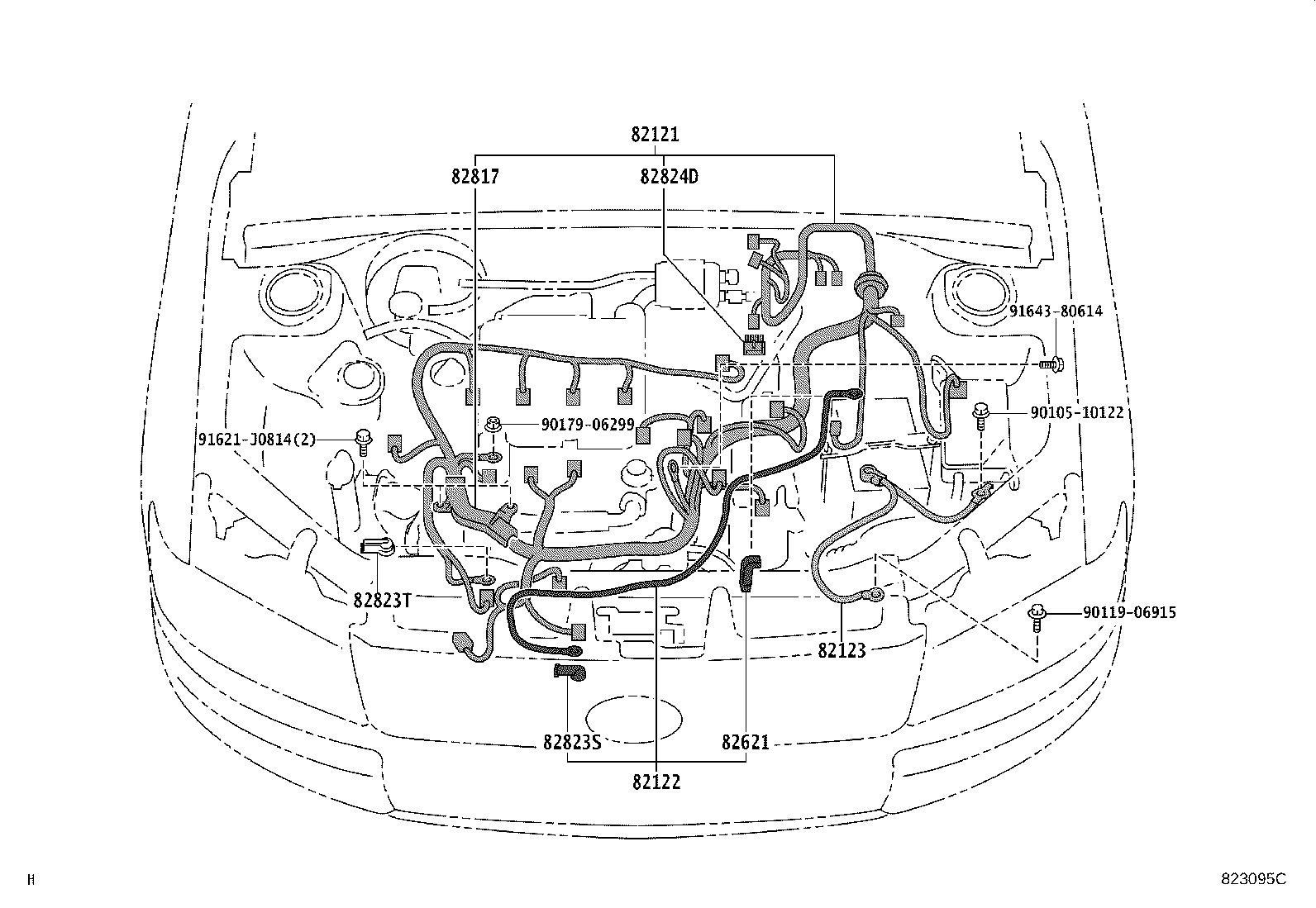

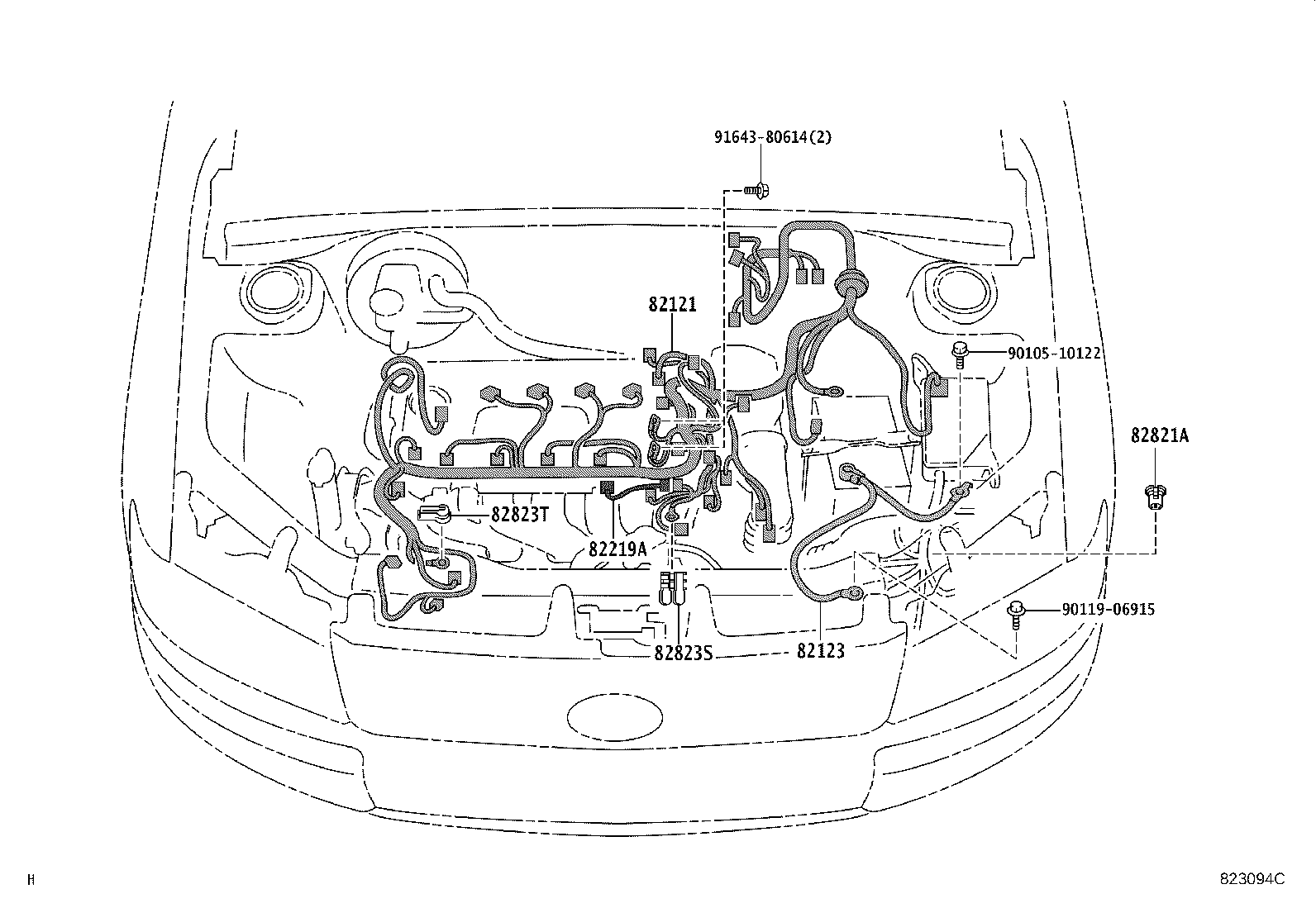

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3

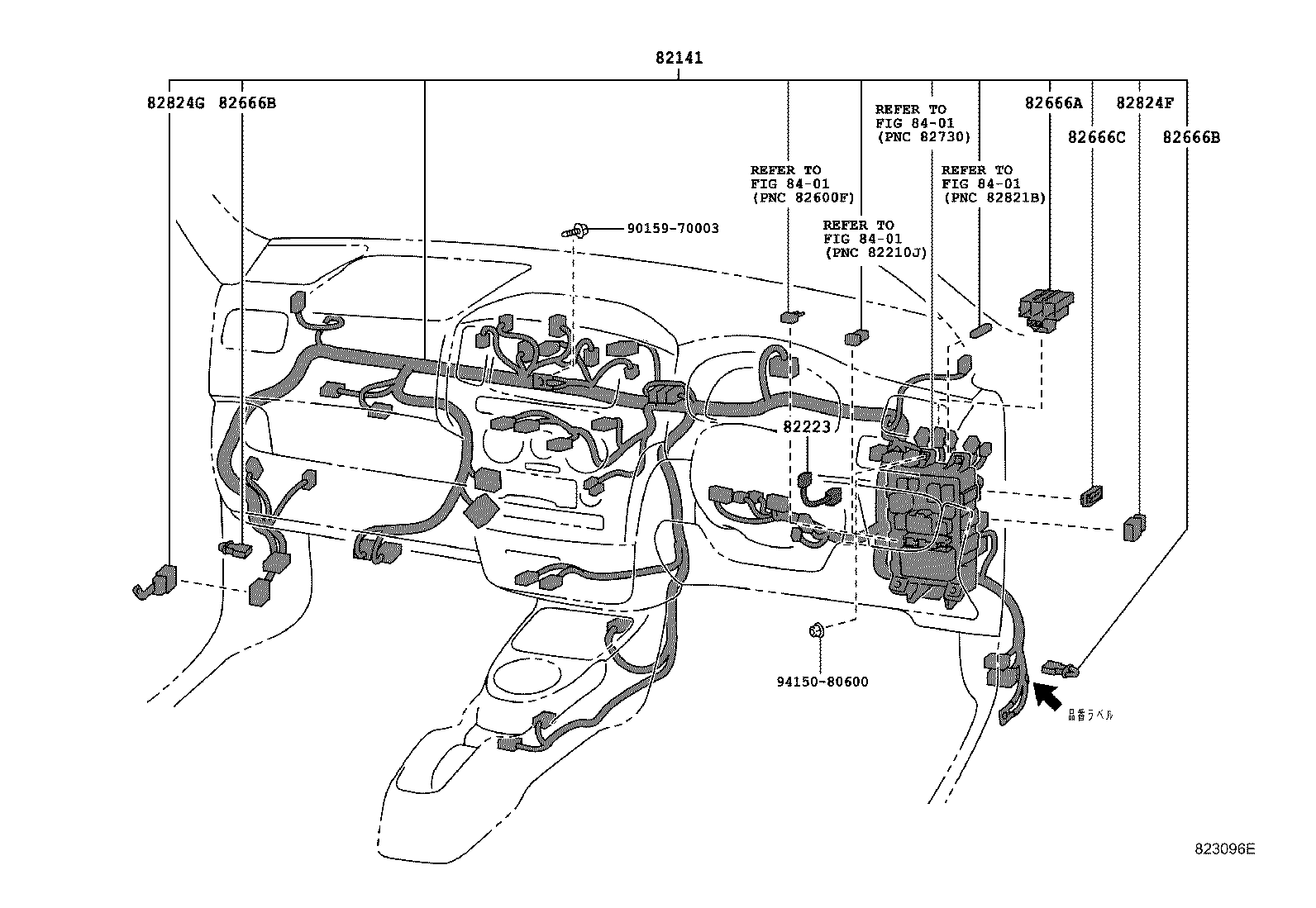

82141 Wire, Instrument Panel

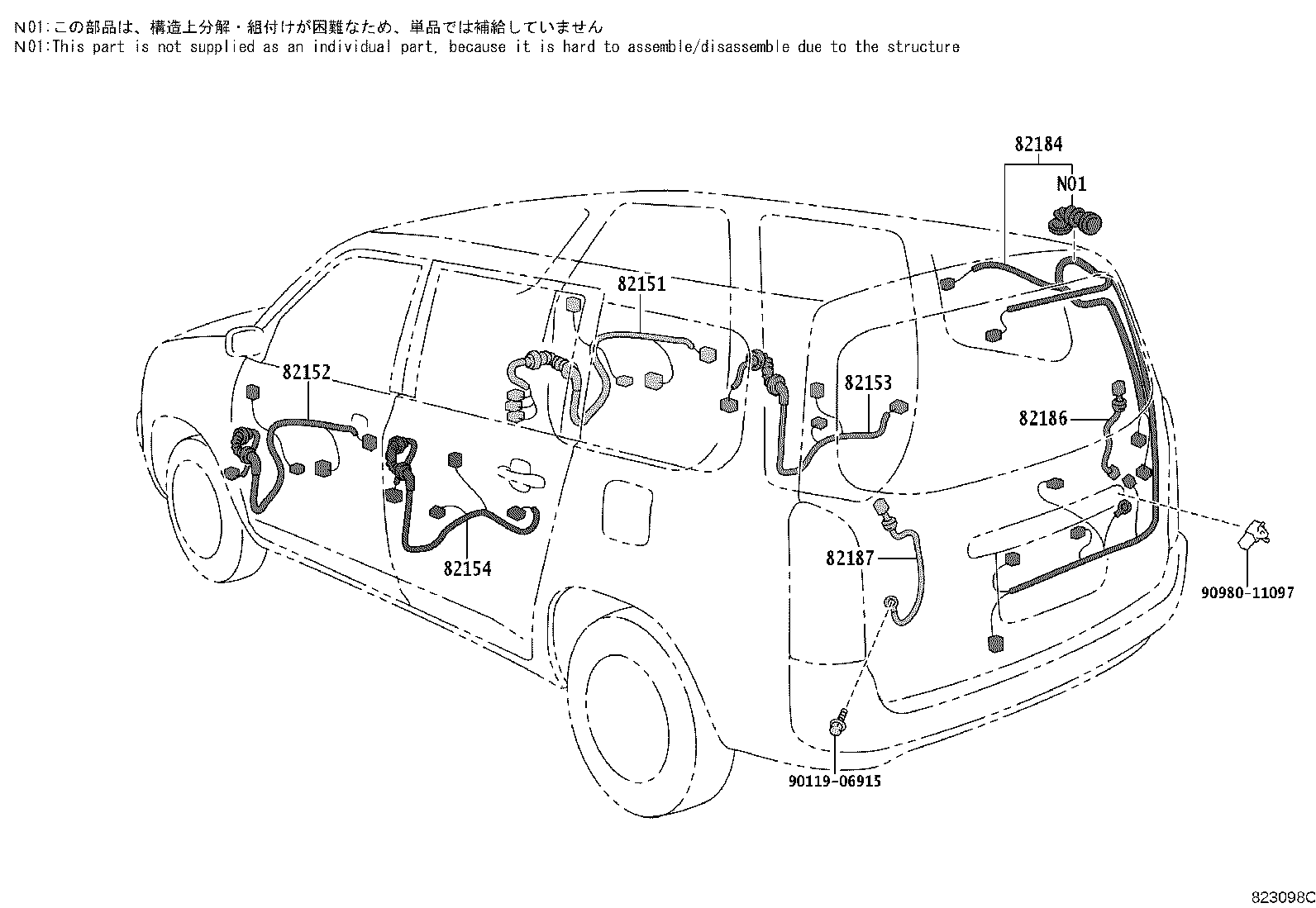

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

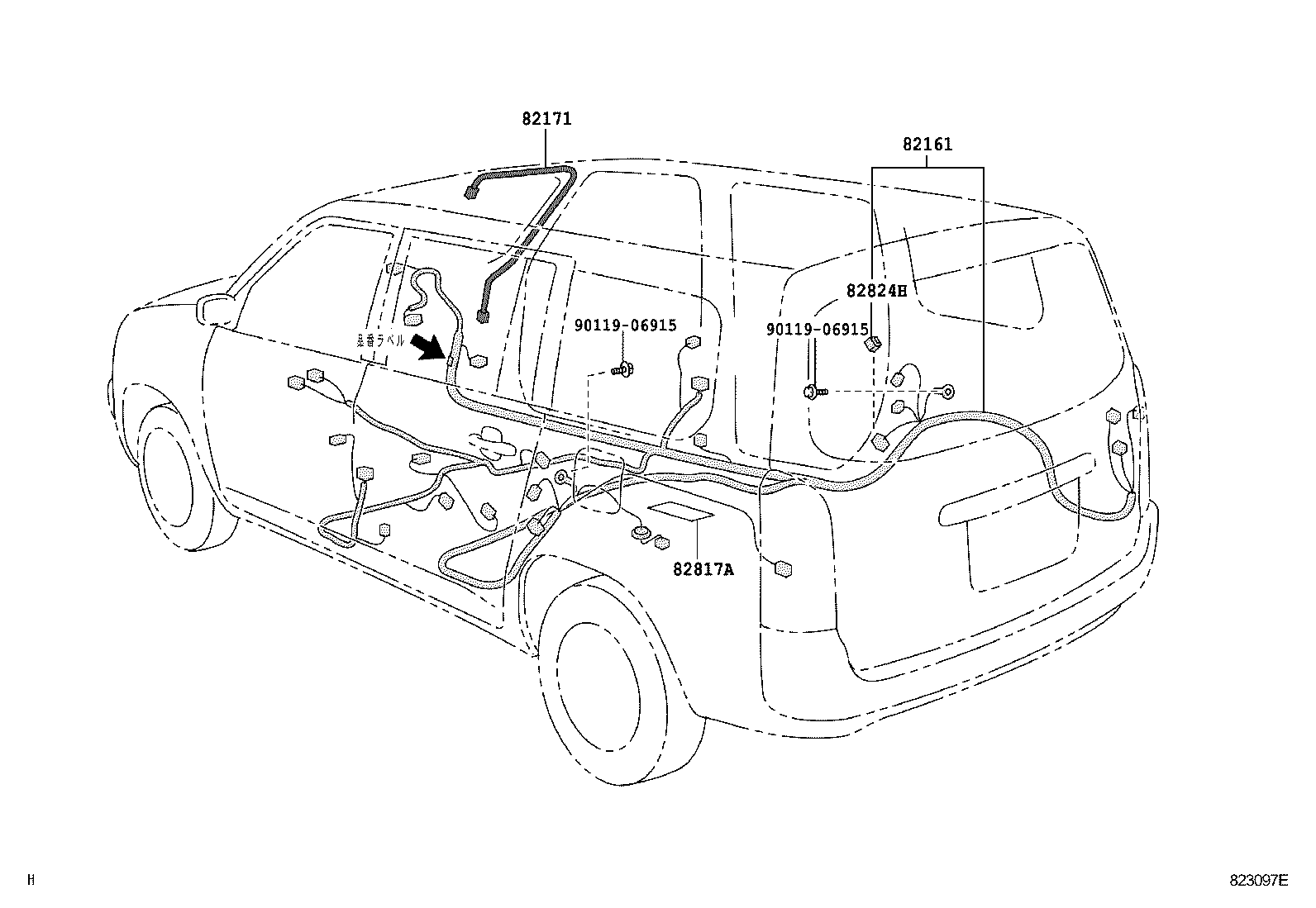

82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82214A Wire, Lamp
82219A Wire, Sensor
82223 Wire, Switch
82223B Wire, Switch, NO.2
82621 Cover, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal

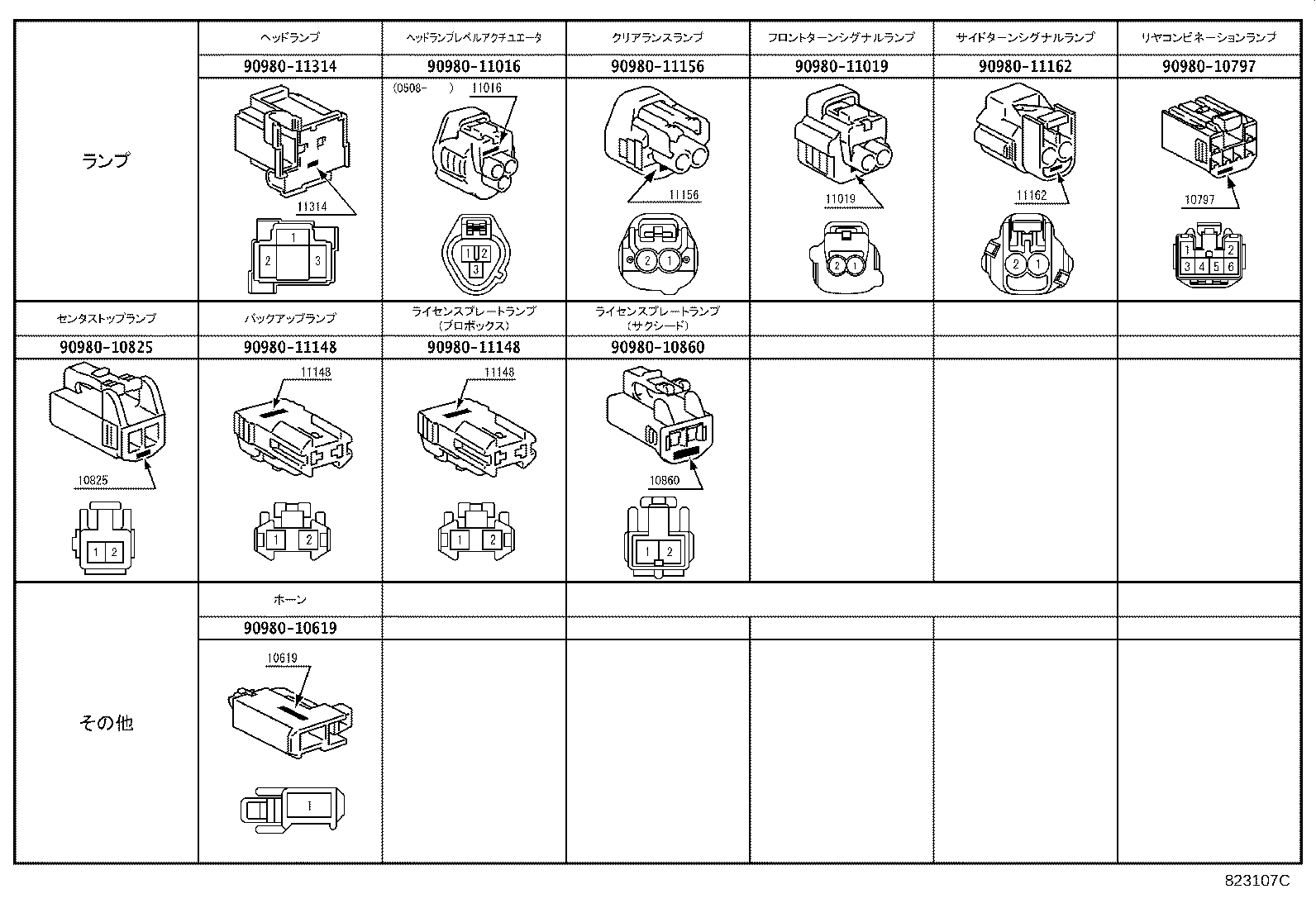

82824D Connector, Wiring Harness
82824F Connector, Wiring Harness
82824G Connector, Wiring Harness
82824H Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
