Toyota Probox/Succeed
2002-06 → 2014-09 · chassis NCP5#,NLP51 · catalogue 173110 · Japan
Supported model
Data version 2015-01

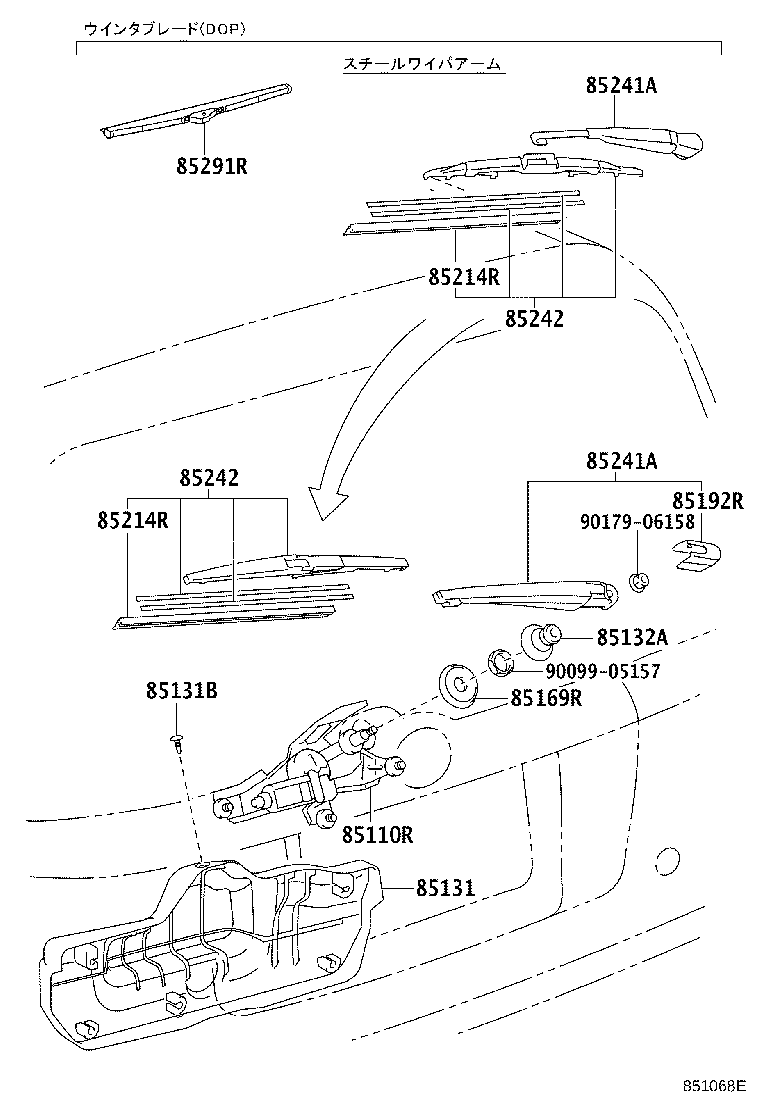

Rear Wiper
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85110R | Motor Assy, Rear Wiper |
| 85131 | Cover, Rear Wiper Motor |
| 85131B | Clip, Rear Wiper Motor Cover |
| 85132A | Cover, Rear Wiper Shaft |
| 85143R | Grommet, Rear Wiper Motor |
| 85169R | Washer, Rear Wiper Link Pivot, NO.1 |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85241A | Arm, Rear Wiper |
| 85242 | Blade, RR Wiper |
| 85291R | Blade,Rear Wiper, Winter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
